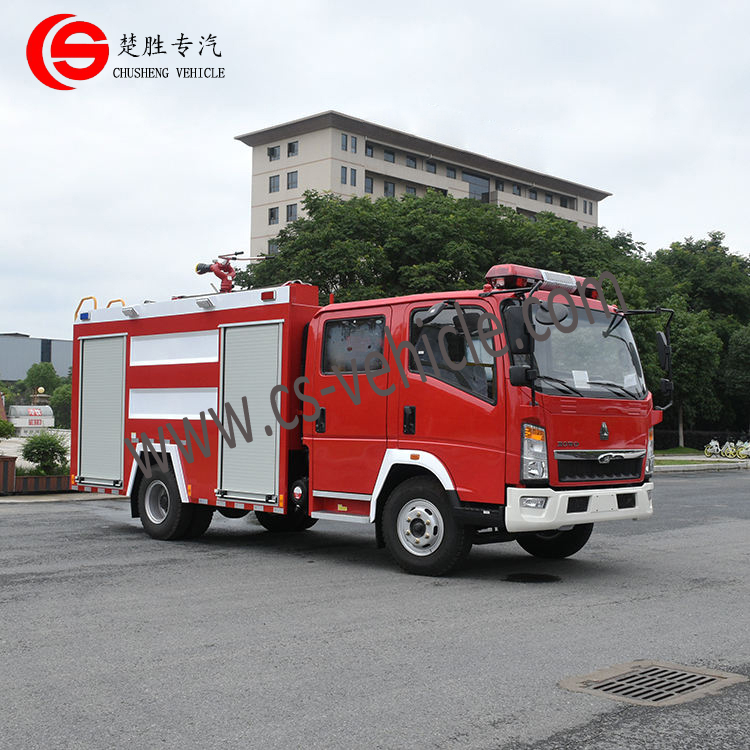

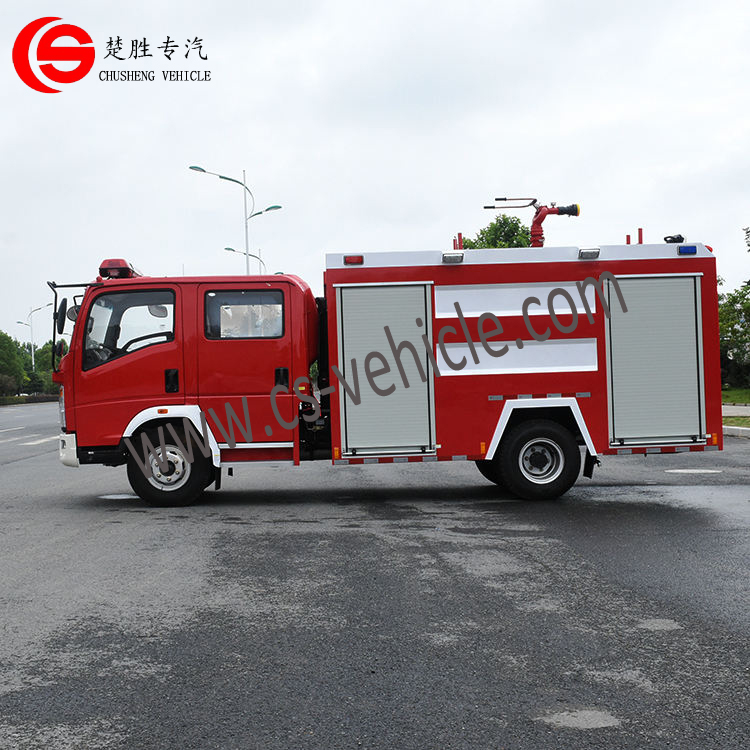

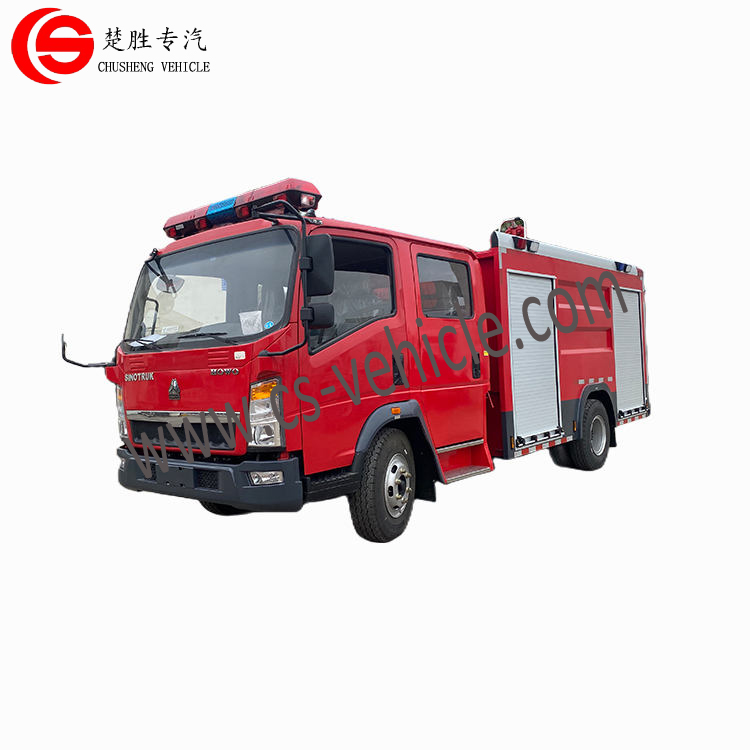

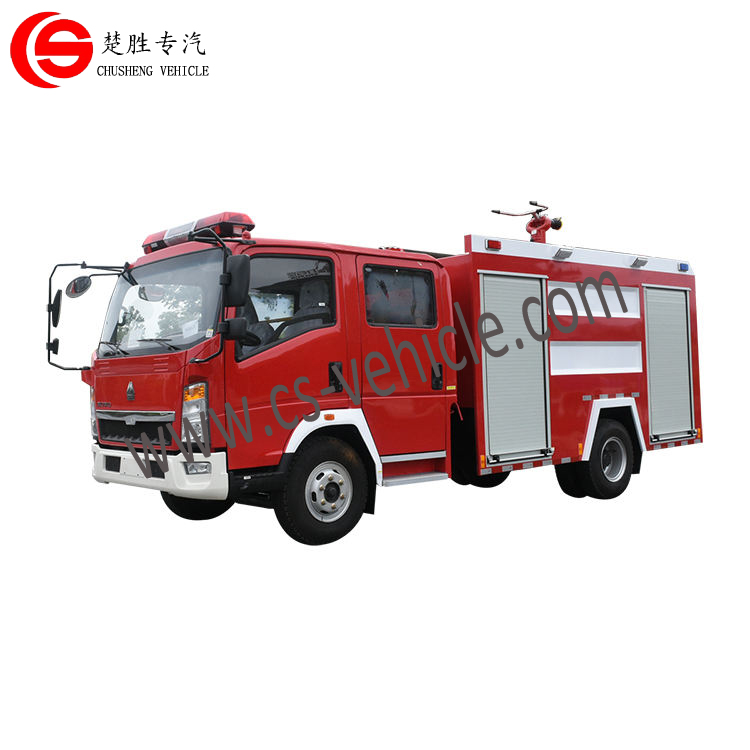

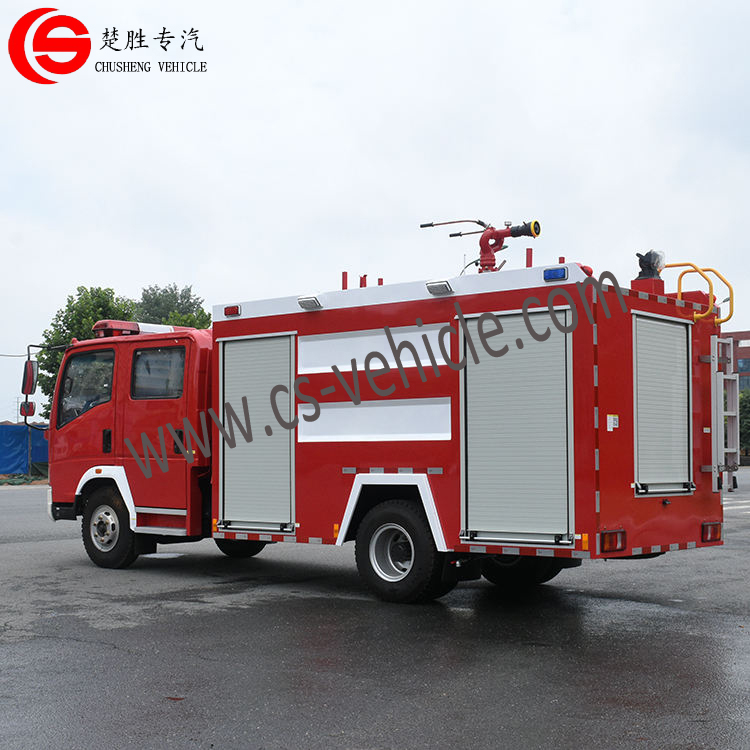

Sinotruk Howo 4x2 2500L Water Foam Fire Fighting Truck Rescue Vehicle with Double Row Cabin

Sinotruk Howo 4x2 2500L Water Foam Fire Fighting Truck Rescue Vehicle with Double Row Cabin

The water tank/foam fire truck is widely used in urbanpublic security fire brigades, petrochemical field, industrial& mining enterprises, forest, ports, docks, etc. It can put outthe fire independently, and also supply water-foam mixtureto the fire site, suitable for extinguishing general fires,regarded as the fire vehicle for public security fire brigades,and full-time fire brigades of enterprises and institutions.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
CSC5070GXFSG
Brand:
Chusheng

Product Overview:A fire truck is a specialized vehicle designed for firefighting operations, providing essential services to communities and industries. Equipped with a range of firefighting equipment and tools, these vehicles are crucial for rapid response to fire incidents, ensuring the safety of people and property.

Want to learn more about how different fire trucks perform? Check our article: Hot Sales HOWO 8x4 Water Tank Fire Truck

Key Features:

Water Tank: Large-capacity water tanks for storing water to be used in extinguishing fires.
Pump System: High-pressure pumps to deliver water at high velocity to the fire source.
Hose Reels: Multiple hose reels for quick deployment of hoses during firefighting operations.
Ladder System: Extendable ladders to reach upper floors of buildings for rescue and firefighting.
Aerial Devices: Some models feature aerial ladders or platforms for accessing high-rise buildings.
Cab and Crew Area: Spacious and secure area for firefighters to ride and operate equipment.
Emergency Lighting and Sirens: High-visibility lights and sirens for navigating through traffic during emergencies.

Types of Fire Trucks:

Pumper Trucks: Traditional fire trucks with water tanks and pumps for direct firefighting.
Aerial Ladder Trucks: Equipped with extendable ladders or platforms for high-rise operations.
Rescue Trucks: Specialized for rescue operations, often with tools for extricating victims from vehicles or collapsed structures.
Wildland Fire Trucks: Designed for fighting fires in forests and wilderness areas, often with off-road capabilities.
Hazardous Materials Trucks: Equipped to handle chemical, biological, radiological, and other hazardous materials.

Applications:

Residential and commercial firefighting
Industrial and refinery operations
Forestry and wildland firefighting
High-rise building emergencies
Hazardous materials incidents

Why Choose Our Fire Truck?

Reliability: Built to withstand the harsh conditions of firefighting with durable construction.
Versatility: Suitable for a wide range of firefighting scenarios, from urban to wildland settings.
Safety: Designed with the safety of firefighters and the public in mind, with features to protect and assist during emergencies.
Efficiency: Quick response times and effective firefighting capabilities minimize damage and save lives.

Cabin	Driving type 4x2
	1880mm, double row, 2+3 seats, air condition, LHD
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6350x1980x2750
	Wheel base (mm)	3360
Weight in KGS	Tare Weight	4150
	Gross Vehicle Weight	6500
	Front axle loading	2400
	Rear axle loading	4200
Max. driving speed (km/h)		90
Engine	Model	YN4102QBZL
	Horse Power (HP)	116 HP
	Emission standard	Euro Ⅲ
Gearbox	WLY646, 6 forwards and 1 reverse
Tire	7.00R16, 6pcs with one spare

Water Tank
Volume	2500 liters
Thickness	Side 3mm, top 3mm, bottom 4mm
Material	304 carbon steel
Man hole	DN470, with quick lock/open device
Overflow	DN65
Drain outlet	DN40, with ball valve
Filling hole	1 unit DN65 port at each side of water tank (2 units)
Inlet/outlet	1 unit inlet pipe/ water tank to pump, DN100 valve. 1 unit outlet pipe/ pump to water tank, DN65 valve.
Foam Tank
Volume	500 liters
Thickness	Side 3mm, top 3mm, bottom 4mm
Material	304 stainless steel
Man hole	DN470, with quick lock/open device
Overflow	DN65
Drain outlet	DN40, with ball valve

Fire pump
Model	CB10/30
Type of pump	Centrifugal pump
Minimum fire fighting pump flow	30L/S
Pressure	1Mpa
Suction depth	7m

Pipe system
Material	High quality steel pipe
Pipe Line inlet	1 unit DN100 inlet behind pump room
Filling pipe	1 unit DN65 port at each side of water tank (2 units), 1 unit DN65 pump filling water tank.
Pipe Line outlet	1 unit DN65 at each side of pump room (2 units), with valve
Cooling pipe	Cooling pipe and control valve for PTO

Foam mixer
Model	B20-60
Material	Cast aluminium and stainless steel
Type	Negative pressure ring pump with washing device
Mixer ratio	3-6%

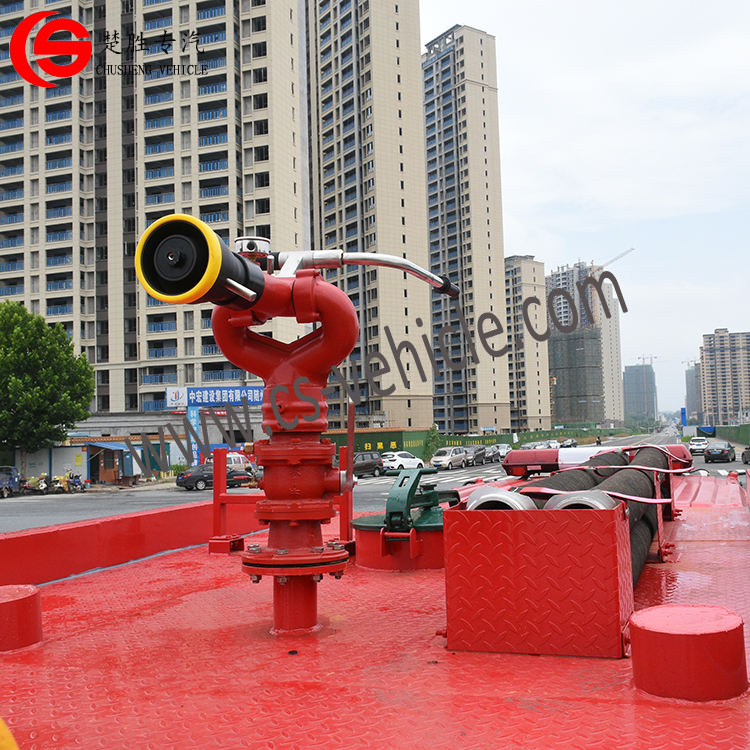

Fire monitor
Model	PL8/24
Flow (L/S)	24
Rated pressure(Mpa)	1.0
Vertical rotation angle (degree)	-30~+70
Horizontal rotation angle (degree)	0~360
Max range (m)	Water ≥ 55m, foam ≥ 45m

Electrical equipment
Auxiliary lighting	Firemen's room, pump room and equipment box are respectively provided with lights, operating instrument panel is provided with lighting, indicators.
Strobe light	Red and blue strobe lights are installed on both sides of the body.
Warning device	Long row of all-red alarm lights mounted on the roof of the cab.
	An alarm with a control box in front of the driver.
Projector	Install a 35W projector at the rear of the upper structure.
