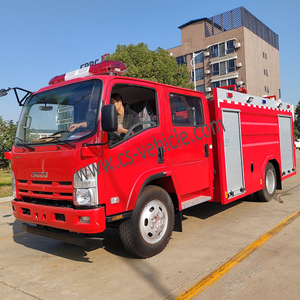

CSC5160GXF
Chusheng
Product Overview:A fire truck is a specialized vehicle designed for firefighting operations, providing essential services to communities and industries. Equipped with a range of firefighting equipment and tools, these vehicles are crucial for rapid response to fire incidents, ensuring the safety of people and property.
Key Features:
Water Tank: Large-capacity water tanks for storing water to be used in extinguishing fires.
Pump System: High-pressure pumps to deliver water at high velocity to the fire source.
Hose Reels: Multiple hose reels for quick deployment of hoses during firefighting operations.
Ladder System: Extendable ladders to reach upper floors of buildings for rescue and firefighting.
Aerial Devices: Some models feature aerial ladders or platforms for accessing high-rise buildings.
Cab and Crew Area: Spacious and secure area for firefighters to ride and operate equipment.
Emergency Lighting and Sirens: High-visibility lights and sirens for navigating through traffic during emergencies.
Types of Fire Trucks:
Pumper Trucks: Traditional fire trucks with water tanks and pumps for direct firefighting.
Aerial Ladder Trucks: Equipped with extendable ladders or platforms for high-rise operations.
Rescue Trucks: Specialized for rescue operations, often with tools for extricating victims from vehicles or collapsed structures.
Wildland Fire Trucks: Designed for fighting fires in forests and wilderness areas, often with off-road capabilities.
Hazardous Materials Trucks: Equipped to handle chemical, biological, radiological, and other hazardous materials.
Applications:
Residential and commercial firefighting
Industrial and refinery operations
Forestry and wildland firefighting
High-rise building emergencies
Hazardous materials incidents
Why Choose Our Fire Truck?
Reliability: Built to withstand the harsh conditions of firefighting with durable construction.
Versatility: Suitable for a wide range of firefighting scenarios, from urban to wildland settings.
Safety: Designed with the safety of firefighters and the public in mind, with features to protect and assist during emergencies.
Efficiency: Quick response times and effective firefighting capabilities minimize damage and save lives.
Product Overview:A fire truck is a specialized vehicle designed for firefighting operations, providing essential services to communities and industries. Equipped with a range of firefighting equipment and tools, these vehicles are crucial for rapid response to fire incidents, ensuring the safety of people and property.
Key Features:
Water Tank: Large-capacity water tanks for storing water to be used in extinguishing fires.
Pump System: High-pressure pumps to deliver water at high velocity to the fire source.
Hose Reels: Multiple hose reels for quick deployment of hoses during firefighting operations.
Ladder System: Extendable ladders to reach upper floors of buildings for rescue and firefighting.
Aerial Devices: Some models feature aerial ladders or platforms for accessing high-rise buildings.
Cab and Crew Area: Spacious and secure area for firefighters to ride and operate equipment.
Emergency Lighting and Sirens: High-visibility lights and sirens for navigating through traffic during emergencies.
Types of Fire Trucks:
Pumper Trucks: Traditional fire trucks with water tanks and pumps for direct firefighting.
Aerial Ladder Trucks: Equipped with extendable ladders or platforms for high-rise operations.
Rescue Trucks: Specialized for rescue operations, often with tools for extricating victims from vehicles or collapsed structures.
Wildland Fire Trucks: Designed for fighting fires in forests and wilderness areas, often with off-road capabilities.
Hazardous Materials Trucks: Equipped to handle chemical, biological, radiological, and other hazardous materials.
Applications:
Residential and commercial firefighting
Industrial and refinery operations
Forestry and wildland firefighting
High-rise building emergencies
Hazardous materials incidents
Why Choose Our Fire Truck?
Reliability: Built to withstand the harsh conditions of firefighting with durable construction.
Versatility: Suitable for a wide range of firefighting scenarios, from urban to wildland settings.
Safety: Designed with the safety of firefighters and the public in mind, with features to protect and assist during emergencies.
Efficiency: Quick response times and effective firefighting capabilities minimize damage and save lives.
Techinical Parameters | |
Model | CSC5160GXF |
Weight | |
GVW | 18000kg |
Pay Load | 6000kg |
CAB & Chassis Mass | 12000Kg |
Engine | |
Model Type Rated Power Displacement Emission Standards Fuel tank | 300HP 6 cylinders in line, 4 strokes, water cooling, Inter-cooler Turbocharged, high pressure common rail 242kw/2000rpm 6.7L Euro III 280 Liter |
Transmission | |
Gear Box | 9JS119T-B,9 forward and 1 reserve |
Drive | 4x2 Right Hand Drive |
Clutch | |
Model | Hydraulically Operating with air assistance, Dia:430mm |
Tire & Wheel | |
Tire | 11R22.5 |
Number of Tire | 7, including spare tire |
Axle | |
Front axle type | 7000KG |
Rear axle type | 13000KG |
Suspension | |
Front & rear | Steel leaf springs |
Steering | Power steering |
Dimension | |
Overall Length | 8010 mm |
Overall Width | 2490 mm |
Overall Height | 3719 mm |
Cabin | Double row, 4 doors,with A/C, fire extinguisher |
Body | |
Water Tanker Capacity(L) | 6000L |
Water tank material | Stainless steel |
Fire Pump Model | CB10/60, Shanghai Xiongzhen or Rongshen brand, |
Suction depth | 7 m |
Priming | <50s |
Fire pump flow rate | 60L/S (1.0MPa) |
Fire Monitor model | PL8-48, Chengdu Weisite brand |
Fire Monitor flow rate | 48L/S |
Fire Monitor Rotation | 360 degree |
Water Tanker Capacity(L) | 6000L |
Water tank material | Stainless steel |
Techinical Parameters | |
Model | CSC5160GXF |
Weight | |
GVW | 18000kg |
Pay Load | 6000kg |
CAB & Chassis Mass | 12000Kg |
Engine | |
Model Type Rated Power Displacement Emission Standards Fuel tank | 300HP 6 cylinders in line, 4 strokes, water cooling, Inter-cooler Turbocharged, high pressure common rail 242kw/2000rpm 6.7L Euro III 280 Liter |
Transmission | |
Gear Box | 9JS119T-B,9 forward and 1 reserve |
Drive | 4x2 Right Hand Drive |
Clutch | |
Model | Hydraulically Operating with air assistance, Dia:430mm |
Tire & Wheel | |
Tire | 11R22.5 |
Number of Tire | 7, including spare tire |
Axle | |
Front axle type | 7000KG |
Rear axle type | 13000KG |
Suspension | |
Front & rear | Steel leaf springs |
Steering | Power steering |
Dimension | |
Overall Length | 8010 mm |
Overall Width | 2490 mm |
Overall Height | 3719 mm |
Cabin | Double row, 4 doors,with A/C, fire extinguisher |
Body | |
Water Tanker Capacity(L) | 6000L |
Water tank material | Stainless steel |
Fire Pump Model | CB10/60, Shanghai Xiongzhen or Rongshen brand, |
Suction depth | 7 m |
Priming | <50s |
Fire pump flow rate | 60L/S (1.0MPa) |
Fire Monitor model | PL8-48, Chengdu Weisite brand |
Fire Monitor flow rate | 48L/S |
Fire Monitor Rotation | 360 degree |
Water Tanker Capacity(L) | 6000L |
Water tank material | Stainless steel |
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as original manufacturer
3.Products Quality Certification SGS CCC ISO TUV
4.Perfect after-sale service
5.Customized products are available as per clients' requirements
6.Export to more than 60 countries and regions
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.
2. Other spare parts could be supplied by OEM at factory cost prices.
3. Regularly follow up to know the vehicle's working status.
4. Free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers are ready if any quality complains, will respond in 24 hours with feedback and solution.
Flexible Payment Term:
1.100% TT
2. 30% TT in advance,70% before shipment
3. 100% USANCE LC at sight
4. TT in advance, balance in LC
Delivery time:
30-40 working days after receipt of advance deposit
Packing and Shipping:
Nude and wax, shipped in container ship, bulk vessel, flat deck or RO-RO ship
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
Our Advantage
1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as original manufacturer
3.Products Quality Certification SGS CCC ISO TUV
4.Perfect after-sale service
5.Customized products are available as per clients' requirements
6.Export to more than 60 countries and regions
Warranty
1. One year quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.
2. Other spare parts could be supplied by OEM at factory cost prices.
3. Regularly follow up to know the vehicle's working status.
4. Free technical support during the whole life cycle of the truck and trailers (say 10 years);
5.Special service team with technial engineers are ready if any quality complains, will respond in 24 hours with feedback and solution.
Flexible Payment Term:
1.100% TT
2. 30% TT in advance,70% before shipment
3. 100% USANCE LC at sight
4. TT in advance, balance in LC
Delivery time:
30-40 working days after receipt of advance deposit
Packing and Shipping:
Nude and wax, shipped in container ship, bulk vessel, flat deck or RO-RO ship
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
