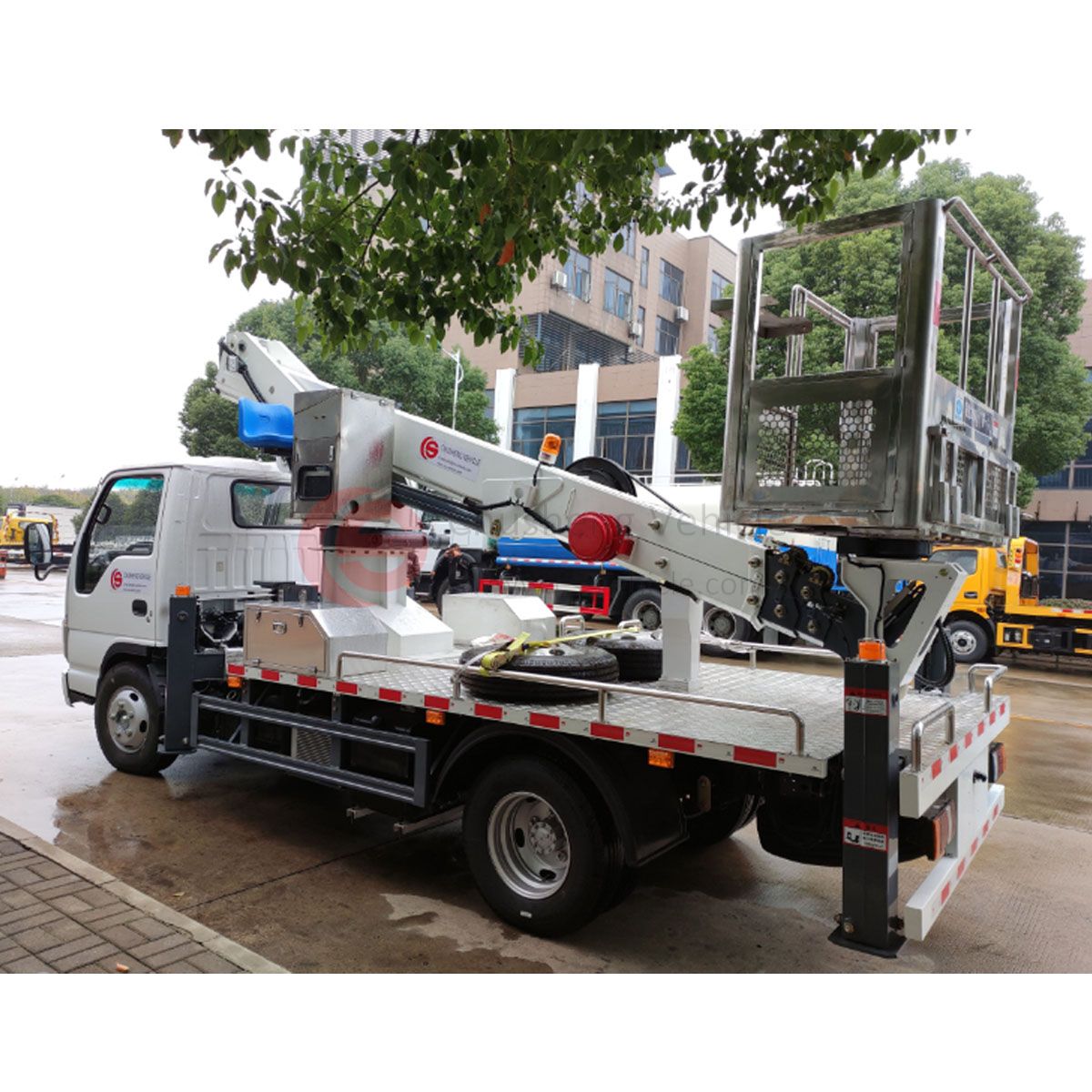

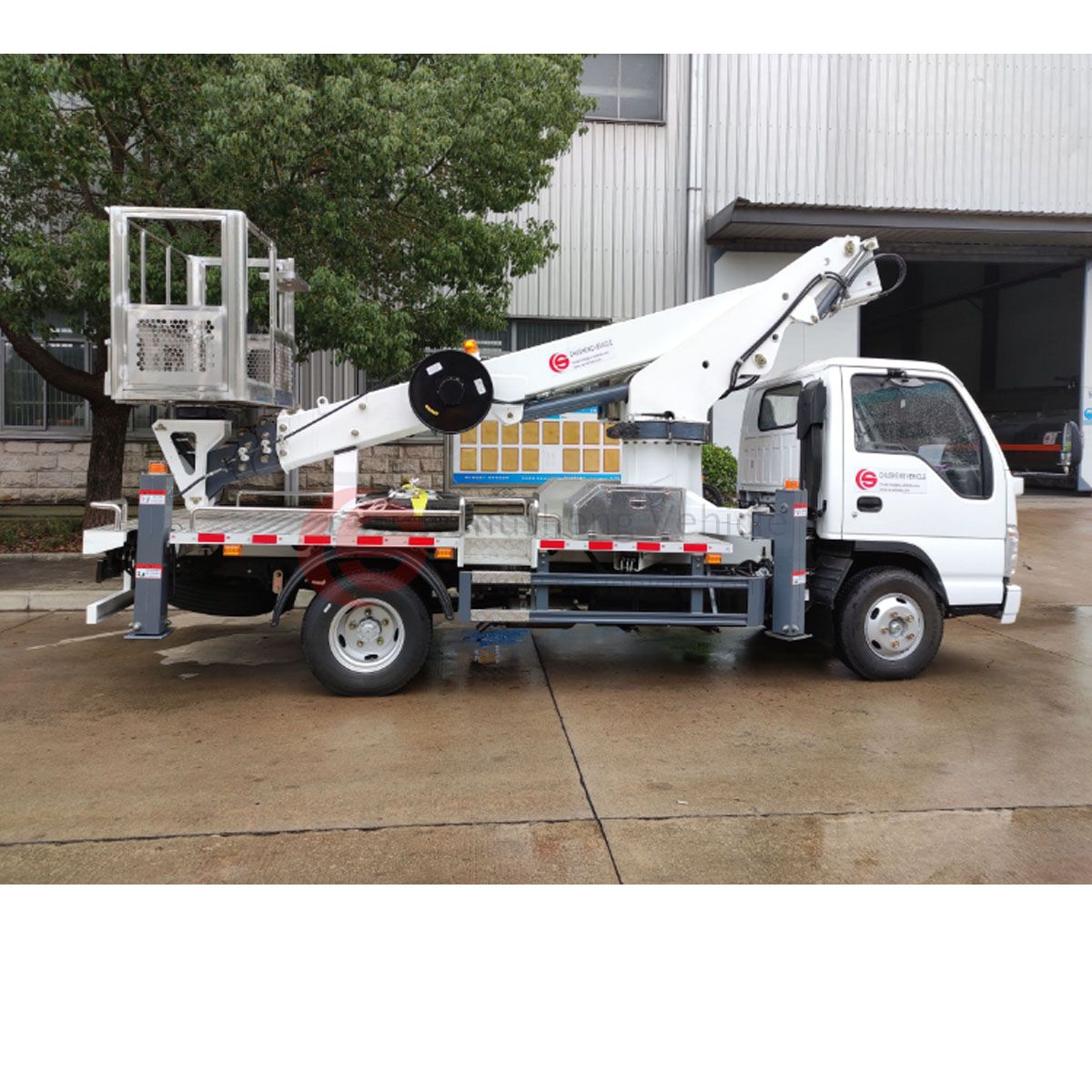

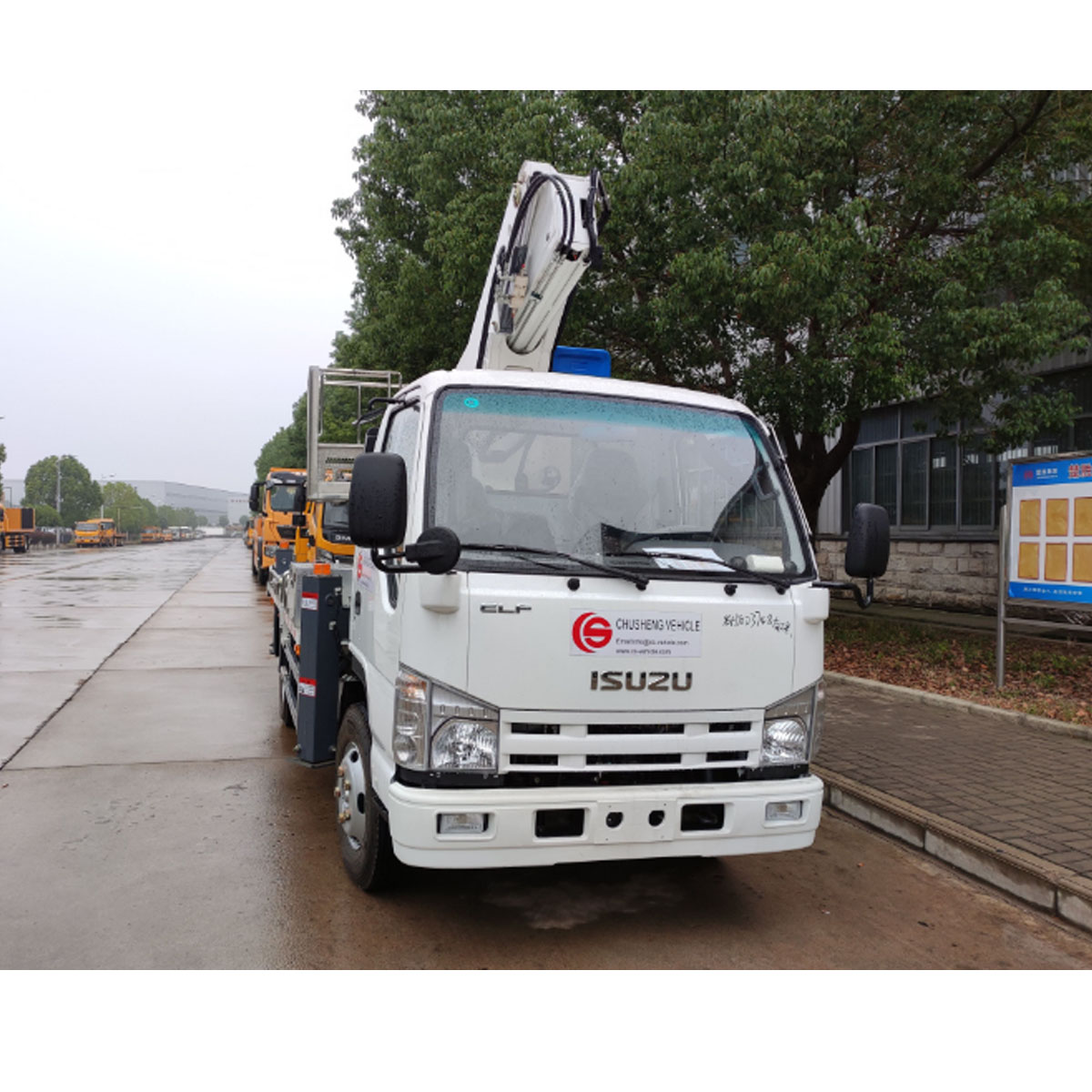

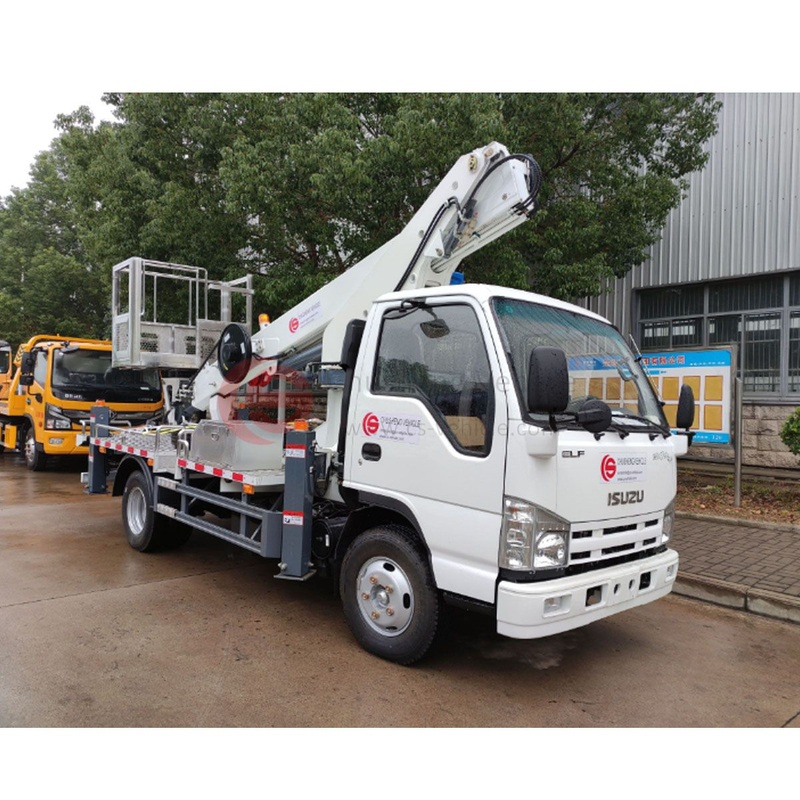

ISUZU 4x2 98hp 16M High Altitude Operation Truck Aerial Platform Working Truck Telescopic Type Aerial Truck

Efficient power system: Equipped with an ISUZU brand engine with an output of 98 horsepower, the vehicle can provide stable and reliable power under various working conditions.

16-meter working height: The vehicle is equipped with a telescopic boom with a maximum working height of up to 16 meters, making aerial work more flexible and efficient.

Advanced control system: It adopts electro-hydraulic proportional control and stepless speed change, equipped with a control box, can be operated on the working platform and turntable, and has limit switches and alarm systems to enhance the safety of the operation.

Stable support system: The vehicle is equipped with H-type outriggers, which can be operated alone to provide stable support with a large span, ensuring the stability of the vehicle when working at high altitude.

Multifunctional working platform: The working platform is designed to provide sufficient space for operators to carry out various maintenance and work tasks. Some models are also equipped with night lighting equipment to facilitate night operations.
Availability:
Quantity:

PDF Export

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Application examples:

  • Municipal construction: used for installation and maintenance of street lighting and signs.

  • Power industry: repair and inspection of high-voltage wires.

  • Landscaping: pruning trees in parks and urban green belts.

  • Communication industry: installation and maintenance of communication equipment.

  • Advertising industry: used for installation and maintenance of billboards.

  • Airport: maintenance of airport facilities.

  • Shipbuilding industry: used for repair and cleaning of ships.

  • Transportation: maintenance of traffic signs and signal lights.

  • Industry and mining: high-altitude operations in factories and mining areas.

  • Dock operations: used for maintenance of port facilities and cargo handling.


Basic maintenance methods:

  • Regular inspection: regular inspection of hydraulic systems, electrical systems and mechanical components to ensure that there is no leakage or wear.

  • Cleaning maintenance: keep the vehicle and work platform clean to avoid dust and debris affecting equipment performance.

  • Lubrication: regular lubrication of moving parts to reduce wear and extend service life.

  • Hydraulic oil replacement: regular replacement of hydraulic oil according to the manufacturer's recommendations to keep the hydraulic system in good working condition.

  • Safety check: Make sure all safety devices, such as limit switches, alarm systems, and emergency descent systems, are in good working order.


FAQ:

  1. Q: What is the maximum working height of the ISUZU 4x2 98hp 16M aerial work platform?

    A: The maximum working height can reach 16 meters, depending on the model configuration.


  2. Q: Is special training required to operate this aerial work platform?

    A: Yes, the operator needs to receive professional training to familiarize himself with the operation and safety procedures of the equipment.


  3. Q: Is the maintenance cost of the aerial work platform high?

    A: The maintenance cost is relatively high because they are complex mechanical equipment that requires regular inspection and maintenance.


  4. Q: How to ensure the safe operation of the aerial work platform?

    A: Follow the operating procedures, use safety devices, and ensure that the operator has received professional training.


  5. Q: What safety features does the aerial work platform have?

    A: Safety features include hydraulic locking devices, counterbalance valves, limit switches, alarm systems, and emergency descent systems.


Through proper operation and maintenance, the ISUZU 4x2 98hp 16M aerial work vehicle can provide users with safe and efficient aerial work solutions.

Isuzu 4X2 98 HP Euro 5 Overhead Working Truck with 16M Working Height

CabinDriving type 4x2, Isuzu single row cab with A/C, LHD, 70°hydraulically tillable to the front as attached photo for ref
Overall dimensions (L x W x H)mm5998×2000×3150
Wheelbase (mm)3360
Wheeltrack (front/rear)(mm)1377/1425
Approach/Departure angle(°)24/13
Tare Weight (kg)2130
G.V.W. (kg)4495
Axle loading capacity (front/rear) (kg)2000/4800
Max. driving spped (km/h)95
Engine model4KH1CN5LS
Horse power (hp)98HP
Emission standardEuro 5
Tire700-16

Special equipment system

1. Max working height: 16 m

2. Max. working range: 6 m

3. Rated load of elevating platform: 200 kg

4. Size of elevating platform (L×W×H):1150×650×1150 (mm)

 5. Max. hoisting capacity:  200 kg

  6. Slewing angle: 360° (full circle slewing)

  7. Max. hoisting height: 14.3 m

  8. Outrigger type & number:  H type, 4 adjustable outriggers

Pre-sale service:

1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

ISUZU 4x2 98hp 16M high altitude operation truck aerial platform working truck

1. Chusheng Vehicle Group Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.


2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.


3.  We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
Our product have passed the ISO9001 quality system certification, and CCC certificate.
