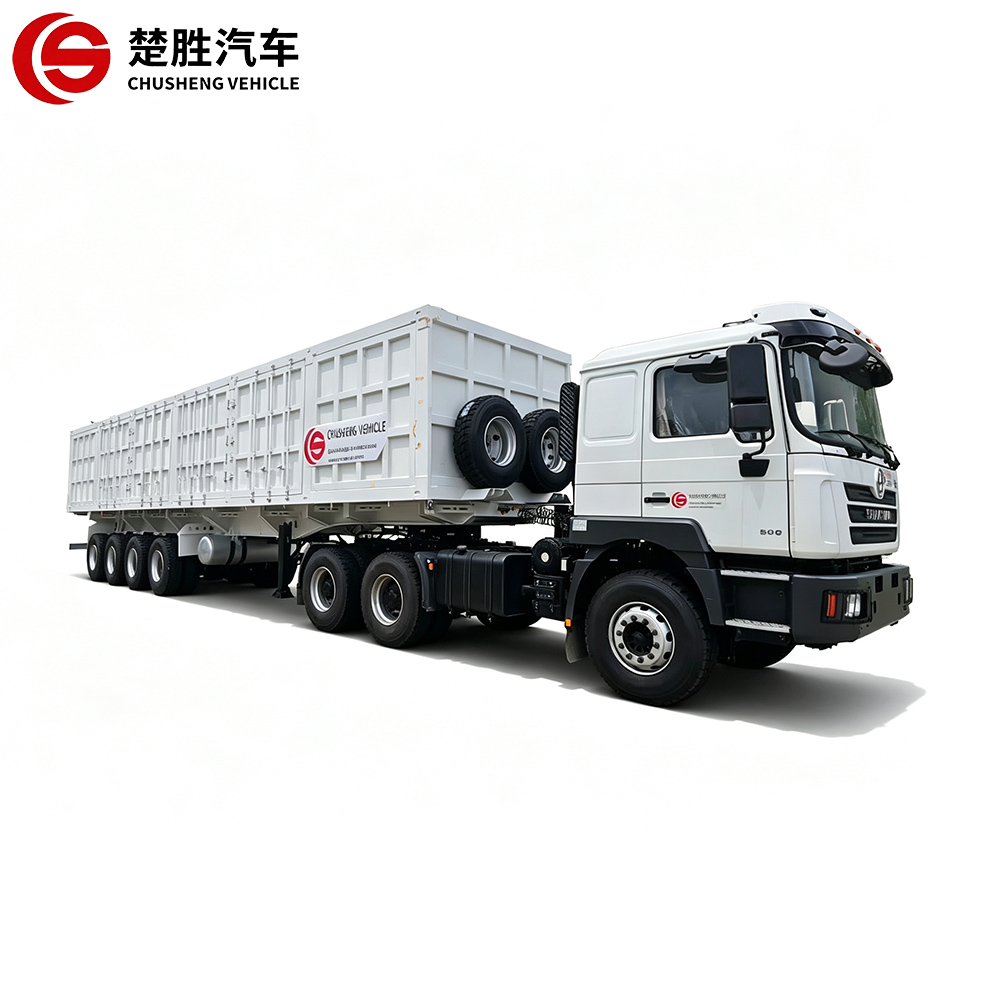

4 Axles 130T Side Tipping Semi Trailer Side Dump Semi-trailer for West Africa

·Exclusively customized for Guinea bauxite transport to suit harsh mining conditions.
·Dimension: 13.2m x 2.55m x 3.8m with 2m cargo box height.
·Reinforced 4 Axle heavy duty mechanical suspension for stable heavy load performance.
·Equipped with 7x150 ype lifting cylinders + 1 safety cylinder for efficient side tipping.
·Cargo box with 6mm floor & 4mm side walls, wear resistant and impact resistant.
·Fitted with 20 ton BPW axles and 1200R20 mining tires for strong load capacity and off road use.
Availability:
Quantity:

PDF Export

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Chusheng

4 Axles 130T Side Tipping Semi Trailer Side Dump Semi-trailer for West Africa

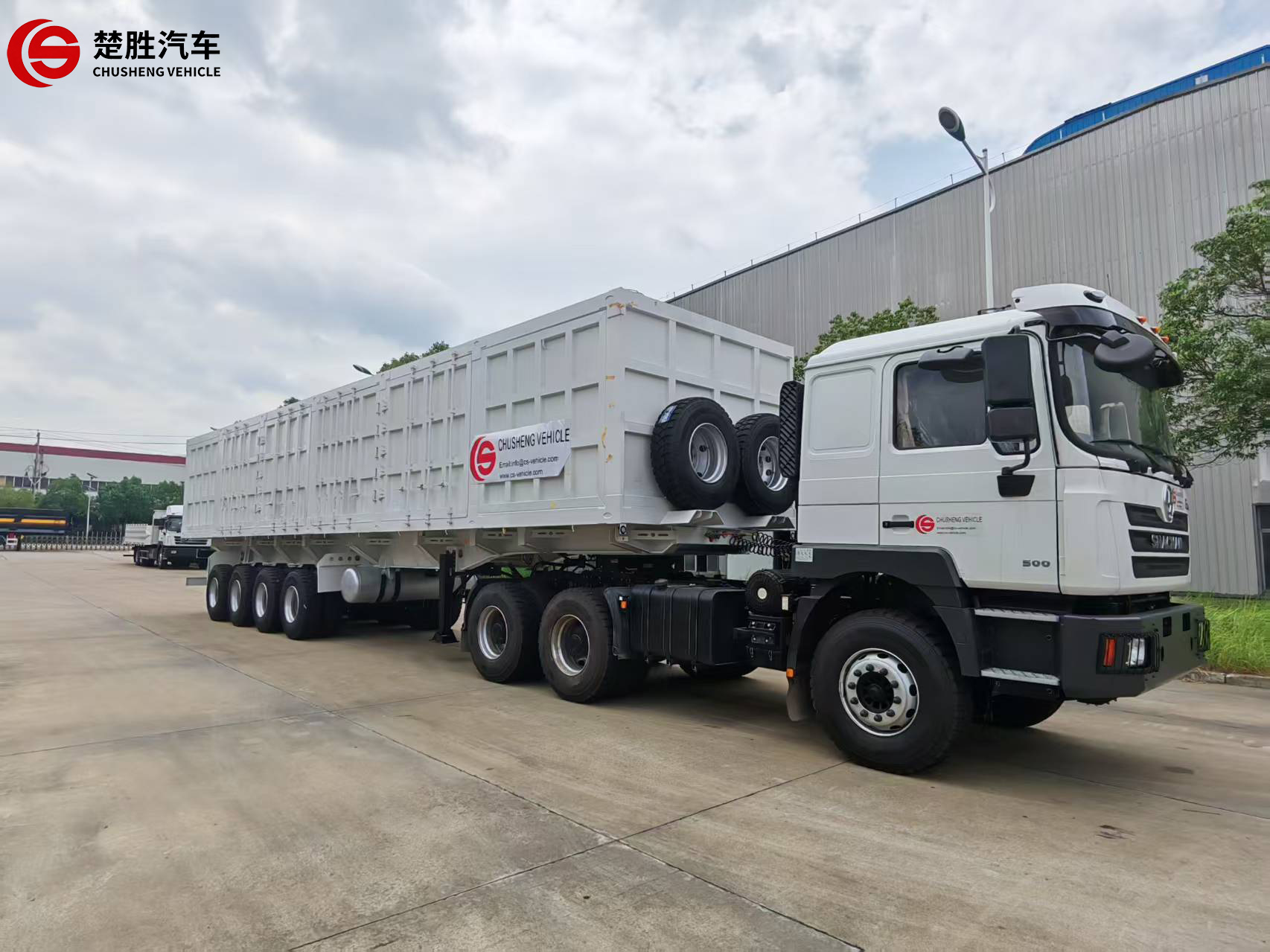

微信图片_20260717113128

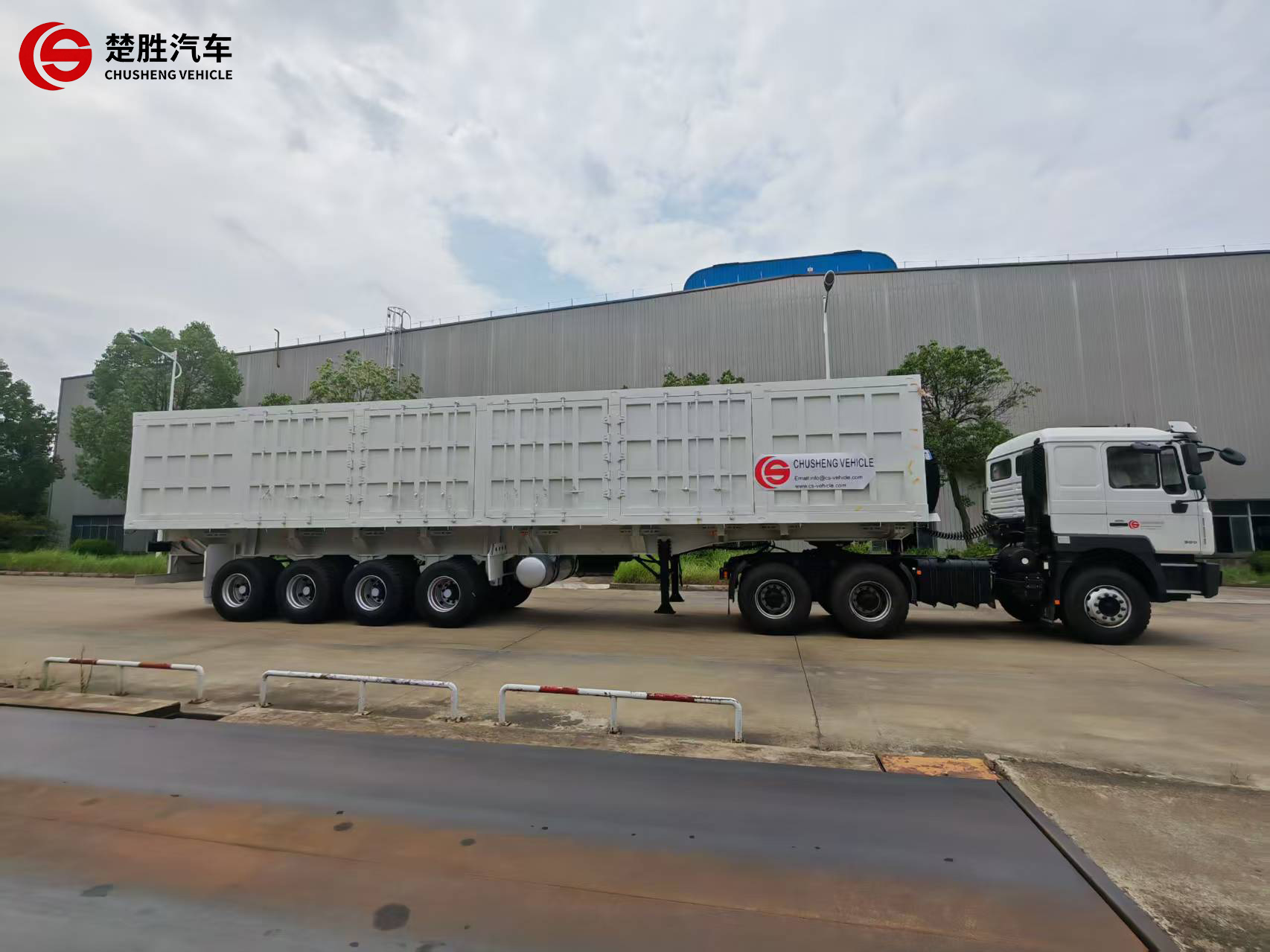

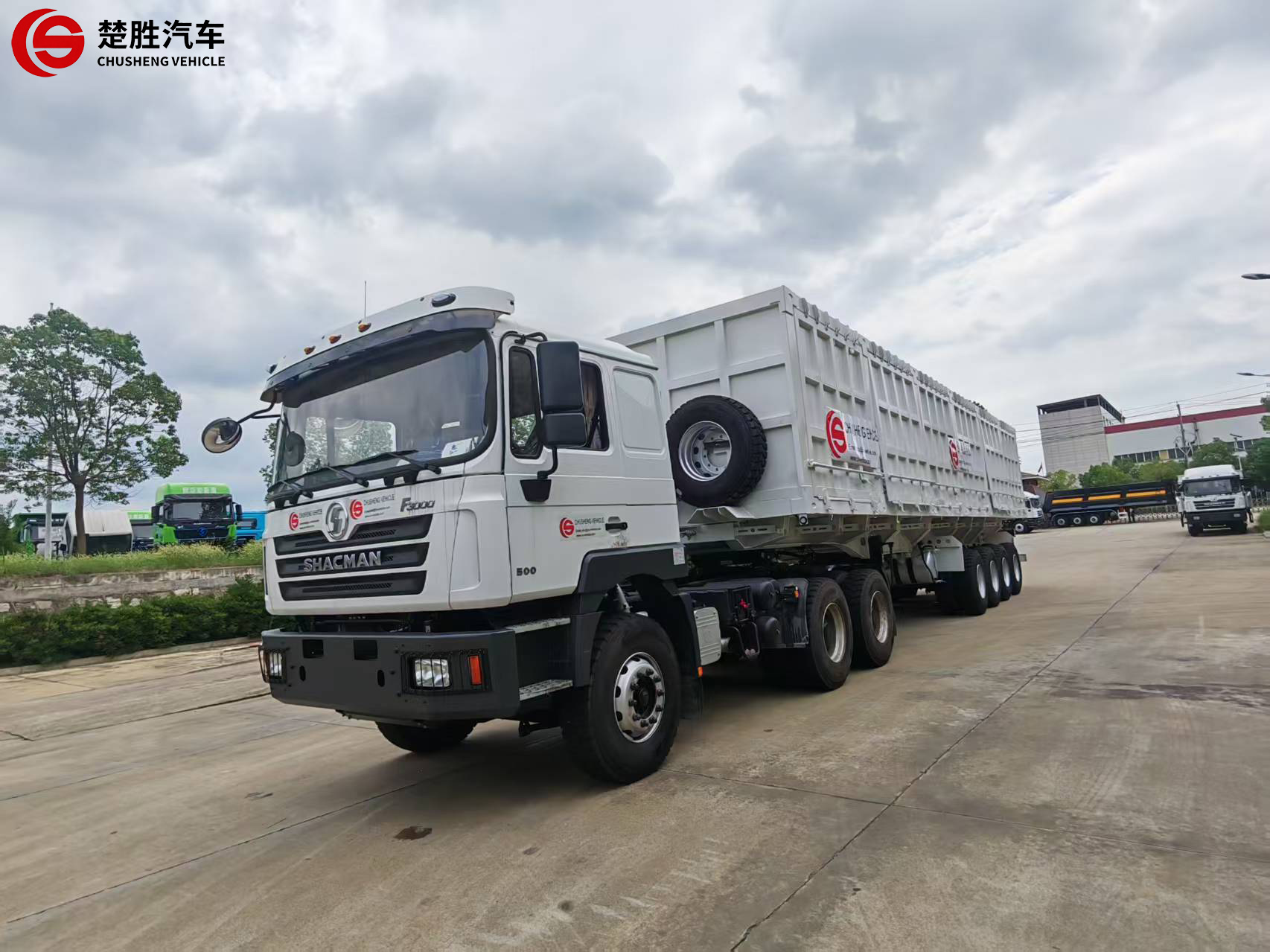

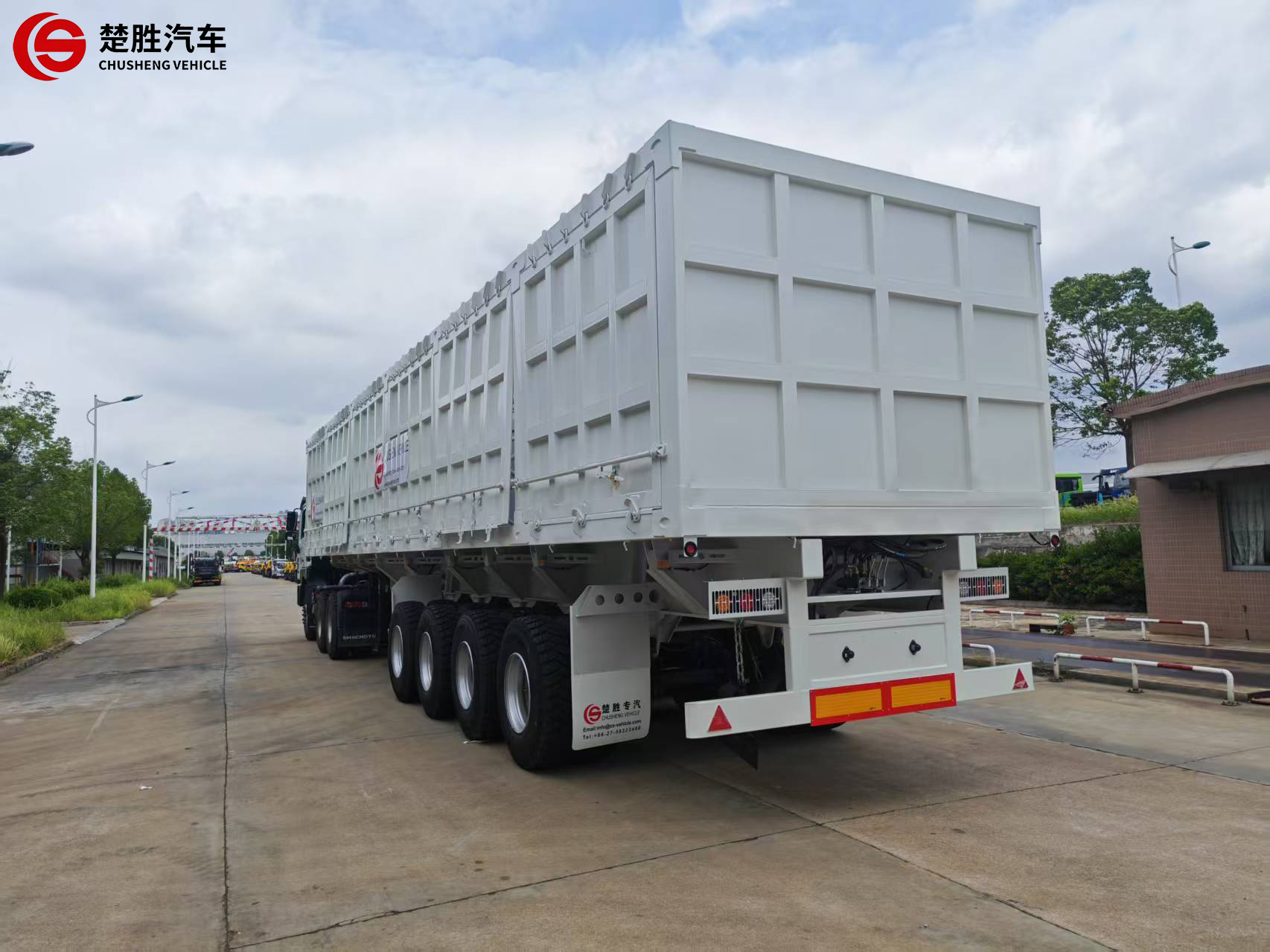

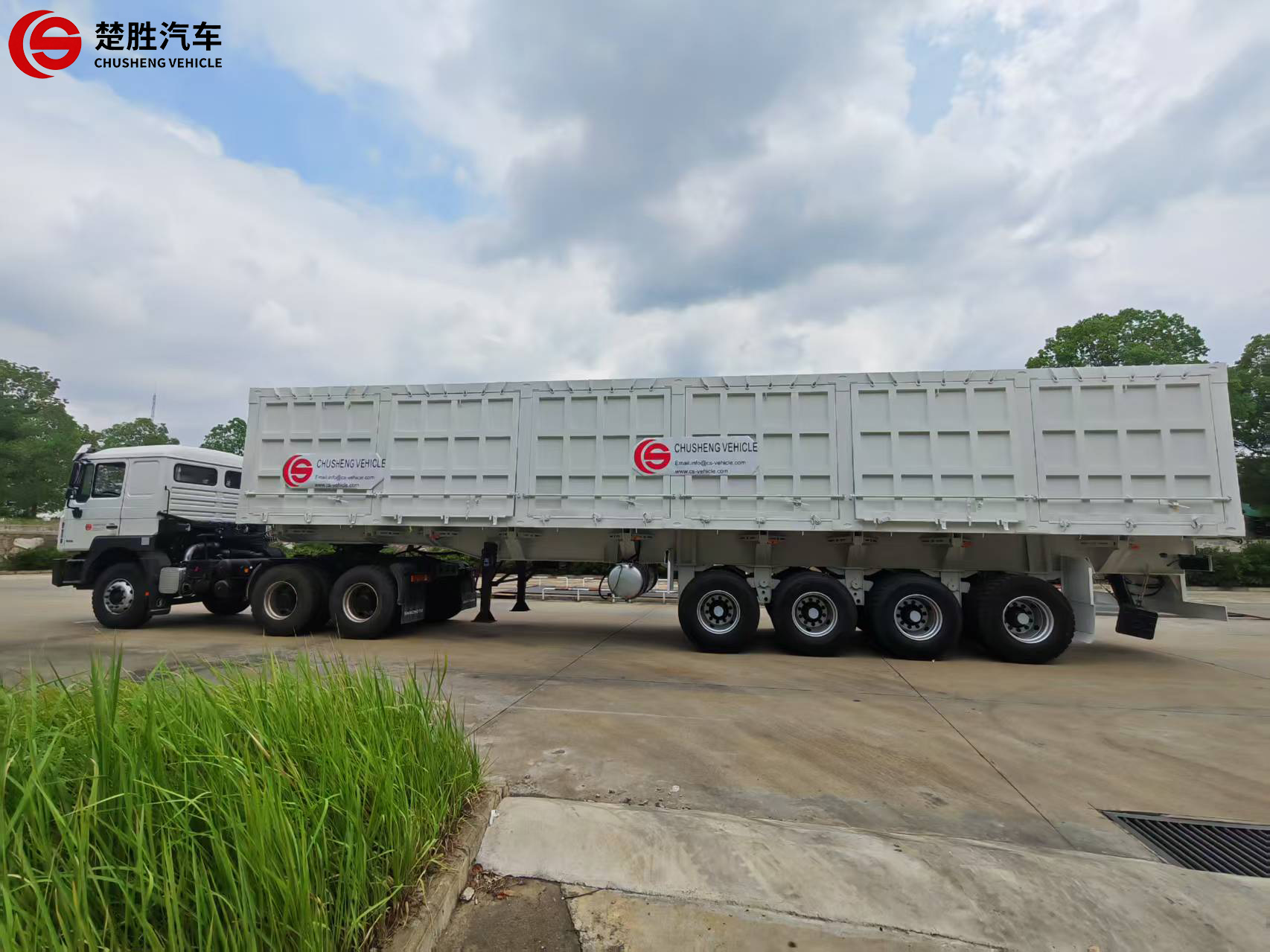

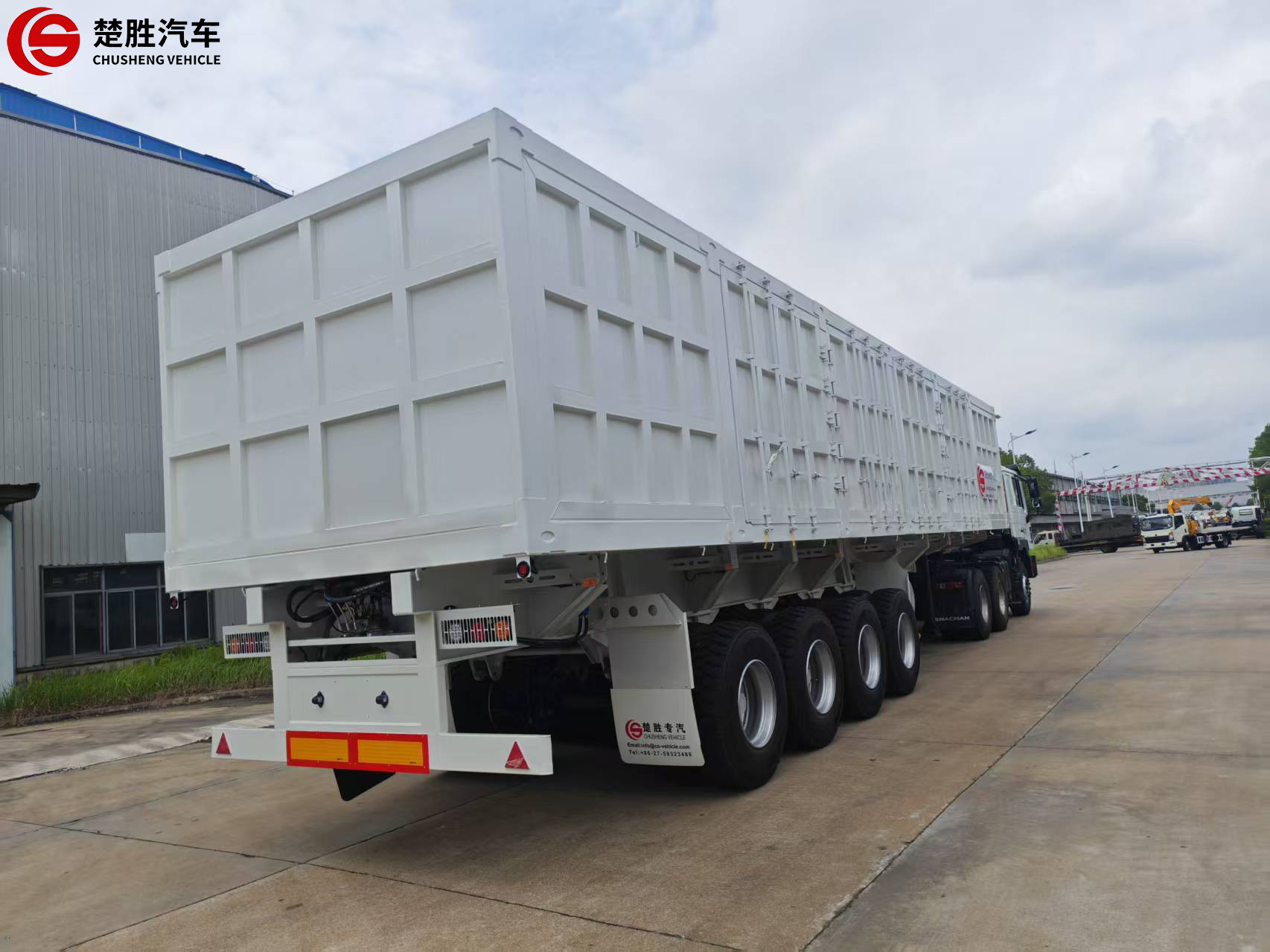

Side-tipping semi-trailer for bauxite transport in Guinea, featuring a 6mm floor and 4mm sidewalls with a wear-resistant design tailored for ore hauling.

Equipped with seven Model 150 lifting cylinders and safety cylinders to ensure smooth and safe side-tipping operations in Guinean mining areas.

20-ton class BPW axles paired with 1200R20 mining tires; robust and durable, designed for transport on unpaved mining roads in Guinea.

Heavy-duty 4-axle side-tipping trailer (dimensions: 13.2m x 2.55m x 3.8m), optimized for bulk bauxite loading.

Reinforced mechanical suspension side-tipping semi-trailer with high impact resistance, built to withstand harsh mining conditions in Guinea.

Custom-built side-tipping trailer for bauxite; offers high load capacity to meet the demands of African mining logistics.

High-strength steel side-tipping semi-trailer with a corrosion-resistant design, suitable for Guinea's humid mining environment.

2-meter sidewall height and spacious cargo capacity, efficiently meeting bulk bauxite logistics needs in Guinea.

Heavy-duty 4-axle tipping trailer equipped with safety cylinders, ensuring secure transport of bauxite from the mine to the port.

4-axle tipping trailer customized for Guinea, meeting load-bearing requirements for high-density bauxite transport.

Features 1200R20 block-pattern tires and reinforced axles, offering excellent traction on the muddy roads found in Guinean mining areas.



4 Axles 130 Tons Side Tipper Dump Trailer
Use
Truck Trailer
Product name
Side Dump Semi Trailer
Material
Steel
Size
13000*2500*3800mm
Pay Load
130 Tons
Axle
4 axles, 20T FUWA/BPW Brand
Use:
Sand/Rock
Suspension:
Mechanical or Air Suspension
Main Beam
The height of the beam is 500mm
Upper plate:16mm, Down plate 16mm
Middle plate 8+6mm
Floor plate: 8mm
Side plate:6mm
Tire:
11.00R20/12R22.5/1100R/1200R/13R22.5
Landing Gear
Standard 28 Ton
Spare Tire Carriers
1 pieces
Cargo Body Steel Sheet
Floor thickness 8mm, side wall thickness 6mm
Hydraulic Jack
Full set of HYVA hydraulic system, front setting telescopic jack
Tailgate
One-piece tailgate with upper articulation, safety lock system
Pictures and configuration information are for reference only.The final product can be made according to specific requirements.





Our Service

As a leading supplier of vehicle towing and transport solutions, we are committed to providing exceptional value and reliability to our global partners.

  1. Competitive Factory Pricing & Superior Quality: We ensure strict cost control and premium manufacturing standards to deliver cost-effective wrecker towing trucks.

  2. 20+ Years of Original Manufacturing Experience: Decades of industry expertise guarantee mature production processes and reliable flatbed tow truck designs.

  3. Authoritative Quality Certifications: Our facilities and products are fully certified by international standards, including SGS, CCC, ISO, and TUV.

  4. Comprehensive After-Sales Service: We provide end-to-end support to ensure your fleet operates smoothly without unexpected downtime.

  5. Flexible Customization: Tailored wrecker truck configurations are available to meet specific project requirements and operational demands.

  6. Global Export Reach: We have successfully exported heavy-duty towing vehicles to over 60 countries and regions worldwide, proving our international market competence.

Warranty & After-Sales Support

We stand behind the durability of our flatbed tow trucks with a robust warranty and dedicated technical assistance designed to minimize your operational risks.

  1. Core Component Guarantee: One-year quality warranty for three key parts (axles, engine, transmission) or within 50,000 km, whichever comes first.

  2. Cost-Effective Spare Parts: Additional OEM spare parts can be supplied directly from our factory at cost prices to support your ongoing maintenance needs.

  3. Proactive Status Tracking: We conduct regular follow-ups to monitor the working status of your vehicle towing trucks and ensure optimal performance.

  4. Long-Term Technical Assistance: Enjoy free, professional technical support throughout the entire life cycle of the truck and trailers (up to 10 years).

  5. Rapid Response Service Team: A specialized team of technical engineers is on standby for any quality concerns, guaranteeing a response with feedback and practical solutions within 24 hours.

Flexible Payment Terms

To facilitate smooth international transactions and accommodate diverse procurement policies, we offer multiple secure payment options:

  • Option 1: 100% T/T (Telegraphic Transfer)

  • Option 2: 30% T/T in advance as a deposit, with the remaining 70% balance settled before shipment.

  • Option 3: 100% USANCE L/C (Letter of Credit) at sight.

  • Option 4: T/T in advance for the deposit, with the balance covered by L/C.

Delivery Time

We prioritize efficient production scheduling. The standard lead time is 30 to 40 working days after the receipt of your advance deposit, ensuring prompt deployment for your vehicle transport operations.

Professional Packing and Shipping

To guarantee that your brand new wrecker towing truck arrives in pristine condition, we implement stringent packaging and logistics protocols. Vehicles are typically shipped nude and waxed, utilizing container ships, bulk vessels, flat decks, or RO-RO (Roll-on/Roll-off) ships depending on the destination and fleet size.

  • (1) Protective Waxing: We apply a comprehensive wax spray process to the entire exterior. This creates a strong protective layer against seawater corrosion and harsh weather conditions during ocean transit.

  • (2) Secure Packaging & Fixing: The truck is securely fastened and stabilized using heavy-duty steel wires. This stable fixing prevents shifting and physical damage while the vehicle is en route.

  • (3) Reliable Shipping Logistics: We partner with renowned and reputable freight suppliers to provide reliable logistics services, ensuring the transport process is executed safely, promptly, and with full compliance to international shipping standards.
