SHACMAN F3000 6X4 Fuel Tank Truck with 10-Wheel 15000L-20000L Oil Transport Vehicle 15~20 Tons

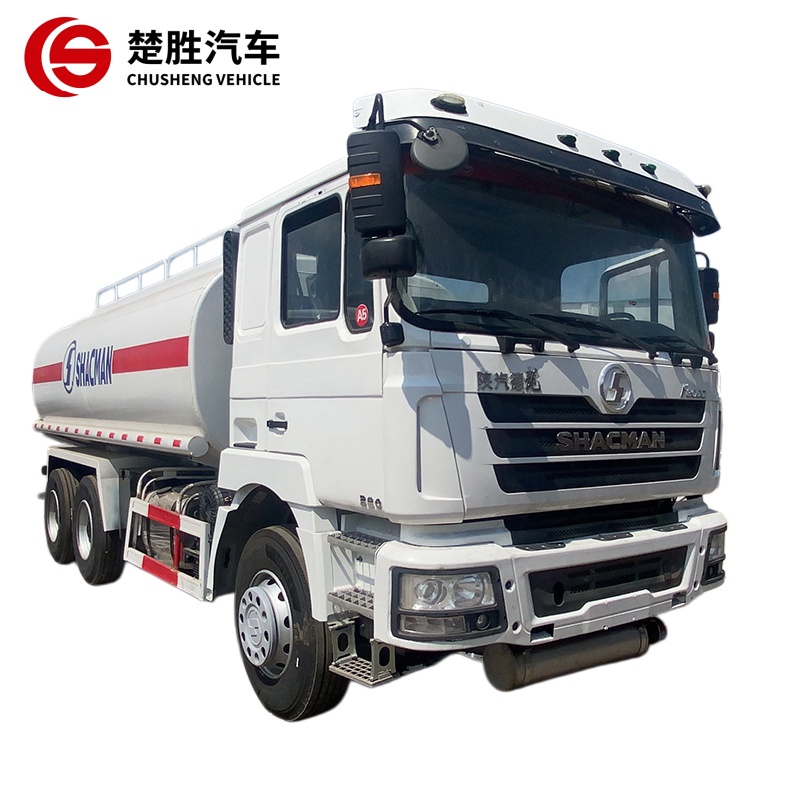

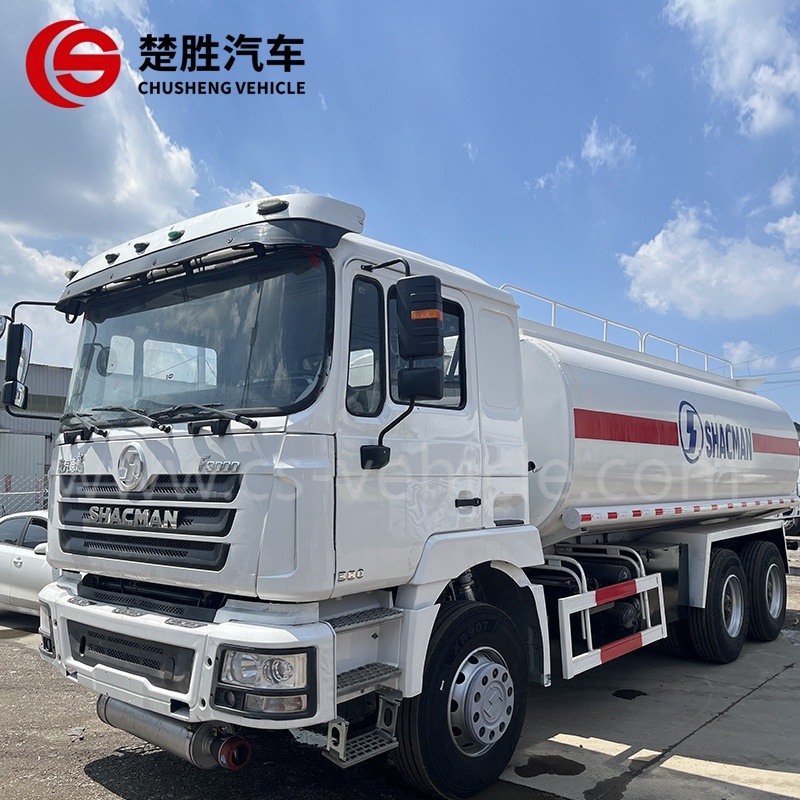

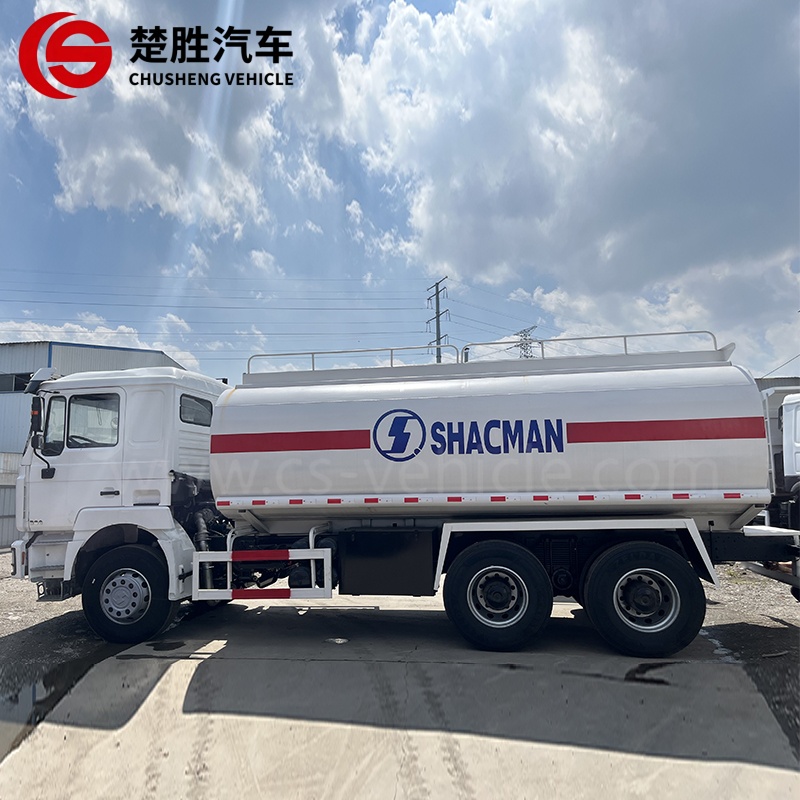

Shacman 6x4 Fuel Tanker Truck

This Shacman 6x4(10-wheel) fuel tanker truck. it the provied by Shacman chassis and is designed for the safe, large-scale transport of light fuels such as oil diesel, and kerosene. Left-hand drive and right-hand drive layouts are both available for customisation to conform to regional traffic laws. This tanker is extensively deployed for fuel delivery along highways, and sells well in overseas markets including Africa, Southeast Asia and the Middle East.

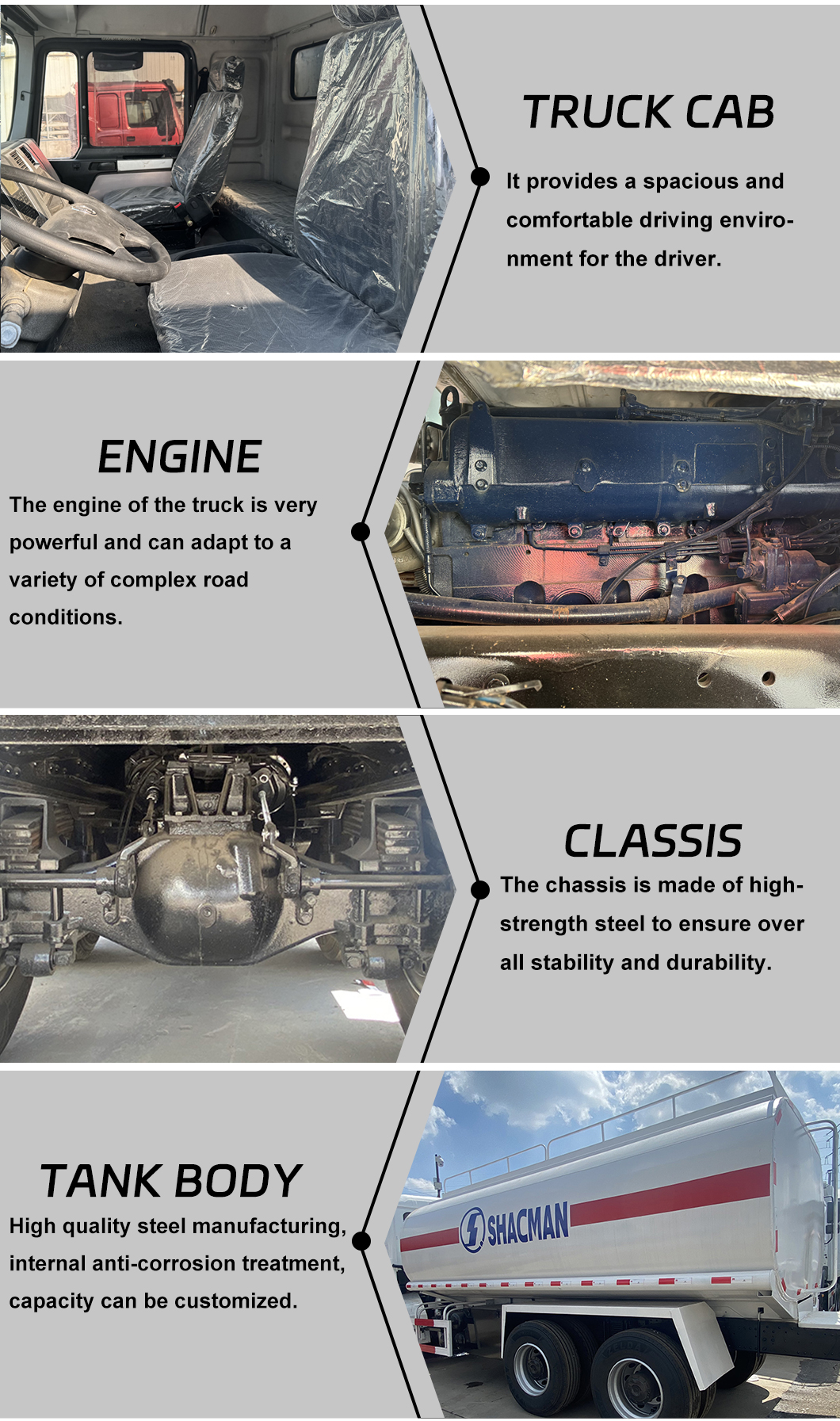

Reliable Chassis specification

1.Powertrain: Features an original Shacman WP series 380-horsepower engine meeting Euro II emission standards, providing ample power for heavy-load, long-distance fuel transport; equipped with a standard 300L high-capacity fuel tank to extend driving range.

2.Axles and Safety Braking: Equipped with an HF9 heavy-duty drum-brake front axle and an HC16 rear axle (5.73 gear ratio), capable of supporting a load of 20–30 tons of oil. It is equipped with a dual-line air brake service system, alongside a spring energy-storage air parking & emergency brake that acts on the rear wheels, delivering consistent and dependable stopping power even under full laden weight.

3.Driving Performance Parameters: Heavy-duty 12.00R20 tires come as standard configuration, including 10 running tires plus one spare tire. The vehicle’s maximum travel speed hits 75 km/h, with overall outer dimensions measuring 8645 × 2550 × 3450 mm. Customers may choose between middle-lift and front-lift lifting structures based on their operational requirements.

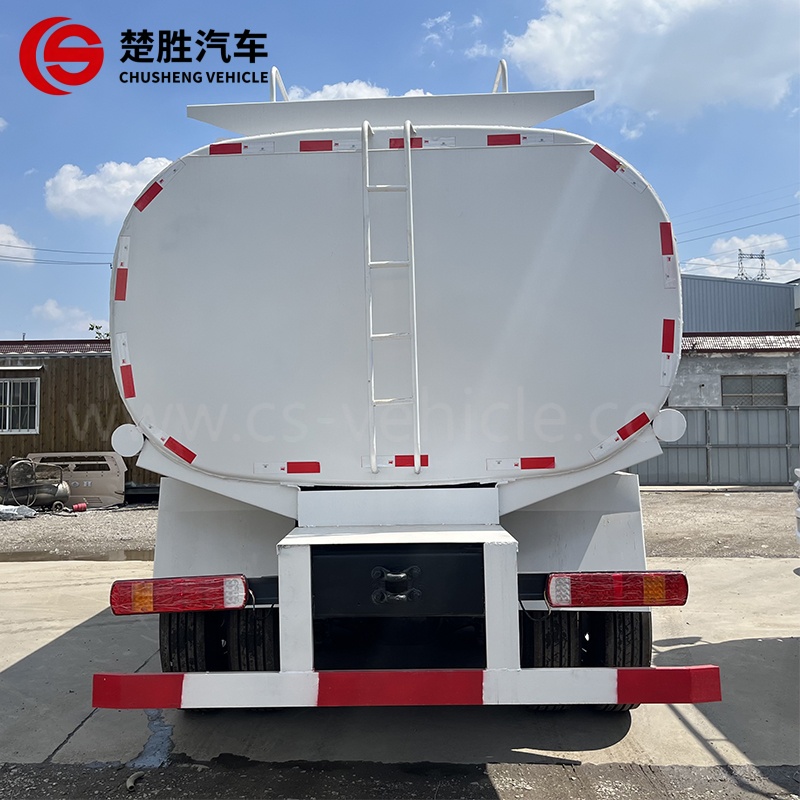

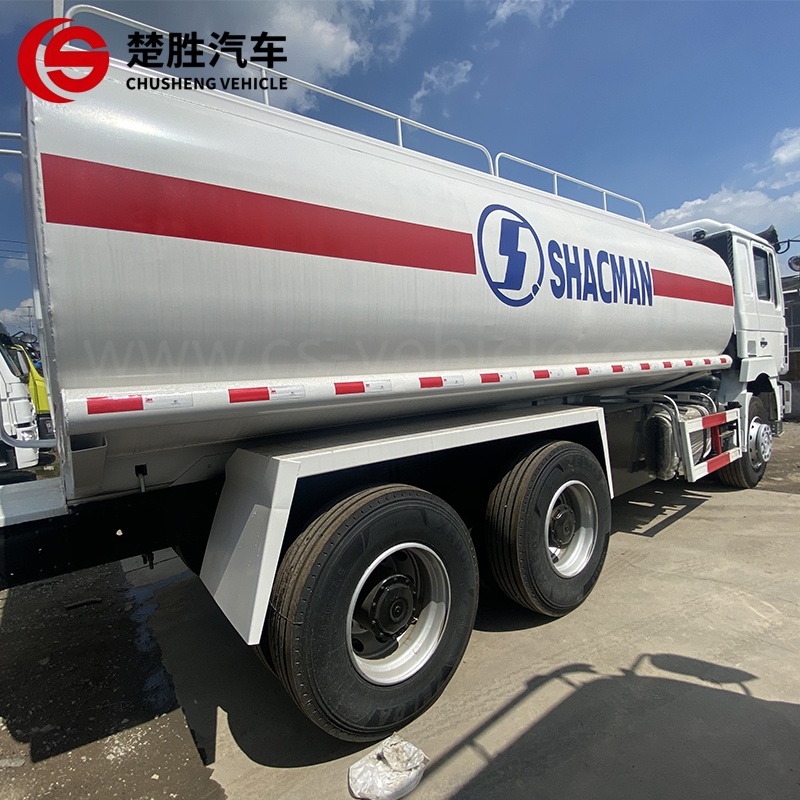

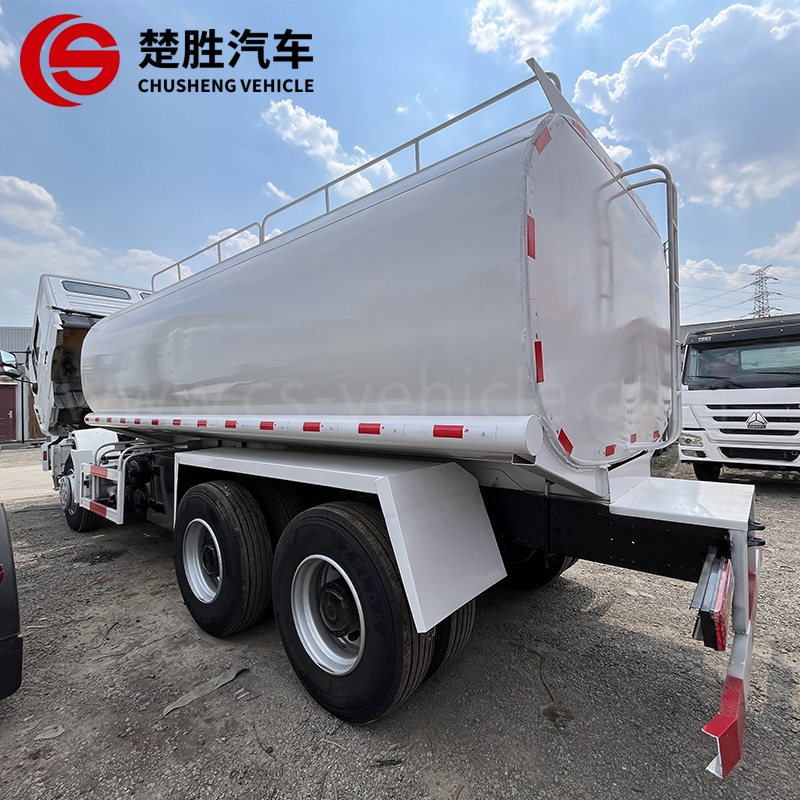

Customizable Fuel Tanker Bodies

Tank capacities range from 15 to 20 cubic meters, customizable to specific needs. Constructed with thickened 8mm bottom plates and 6mm side plates for superior pressure resistance and leak prevention; rated load capacity of 20–30 tons. Options include carbon steel or stainless steel tanks, equipped with professional-grade oil pumps, flow meters, and comprehensive safety systems (including anti-overflow and anti-static devices) that fully comply with hazardous material transport regulations.

Key Product Advantages

1.Adjustable steering layout: LHD and RHD versions are available to match international traffic standards.

2.Robust strengthened heavy chassis handles severe road conditions like mines, construction sites and country road

3.All key components support personalized customization, covering tank volume, lifting systems and oil loading & unloading accessories.

4.Full sets of hazardous goods transport approvals and export clearance paperwork are provided for smooth overseas shipment.

Direct factory supply offering excellent value, backed by comprehensive overseas after-sales support.
