Sewage Suction Truck
Chusheng

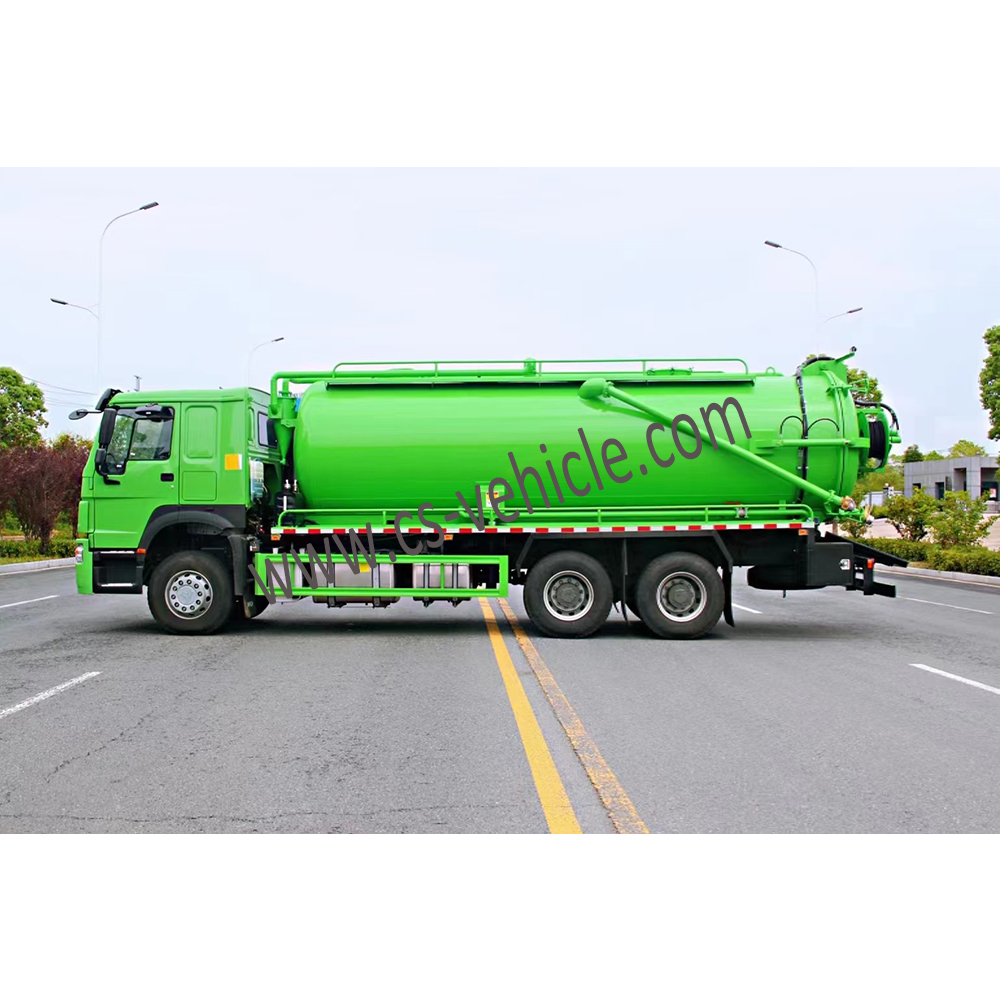

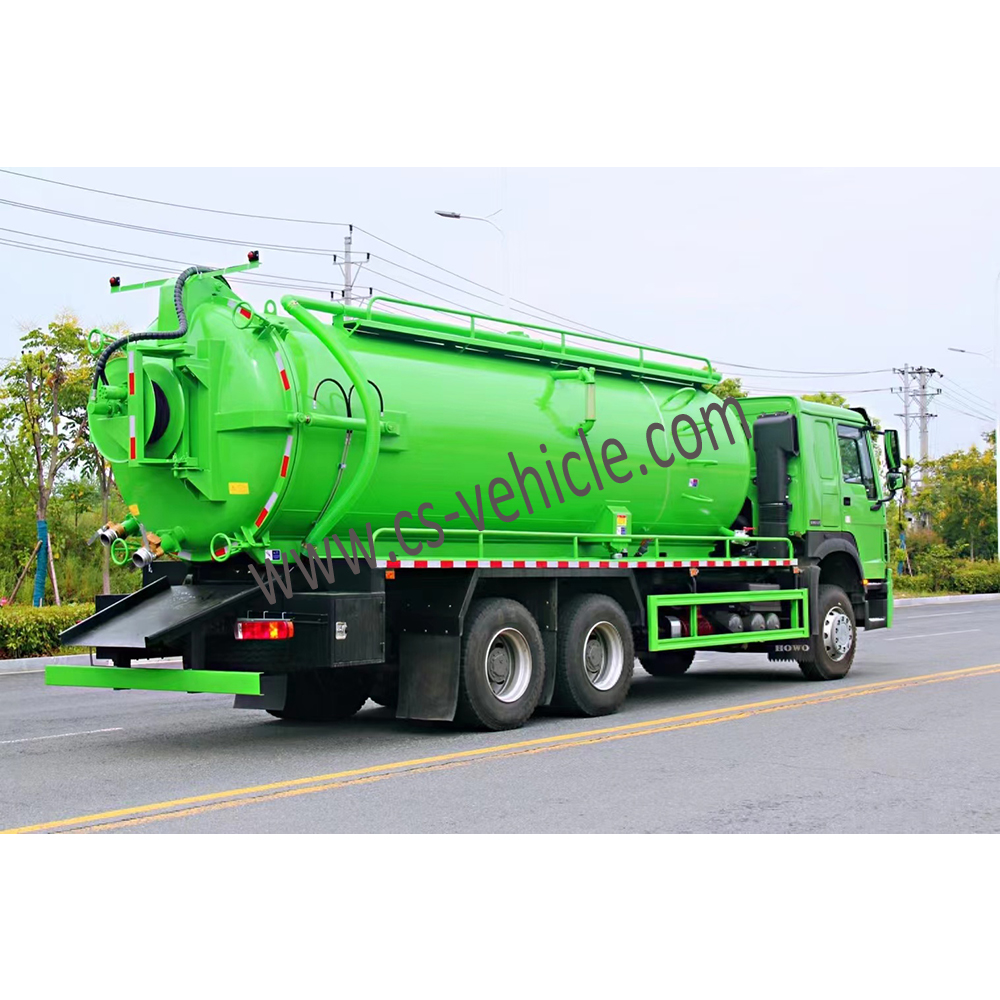

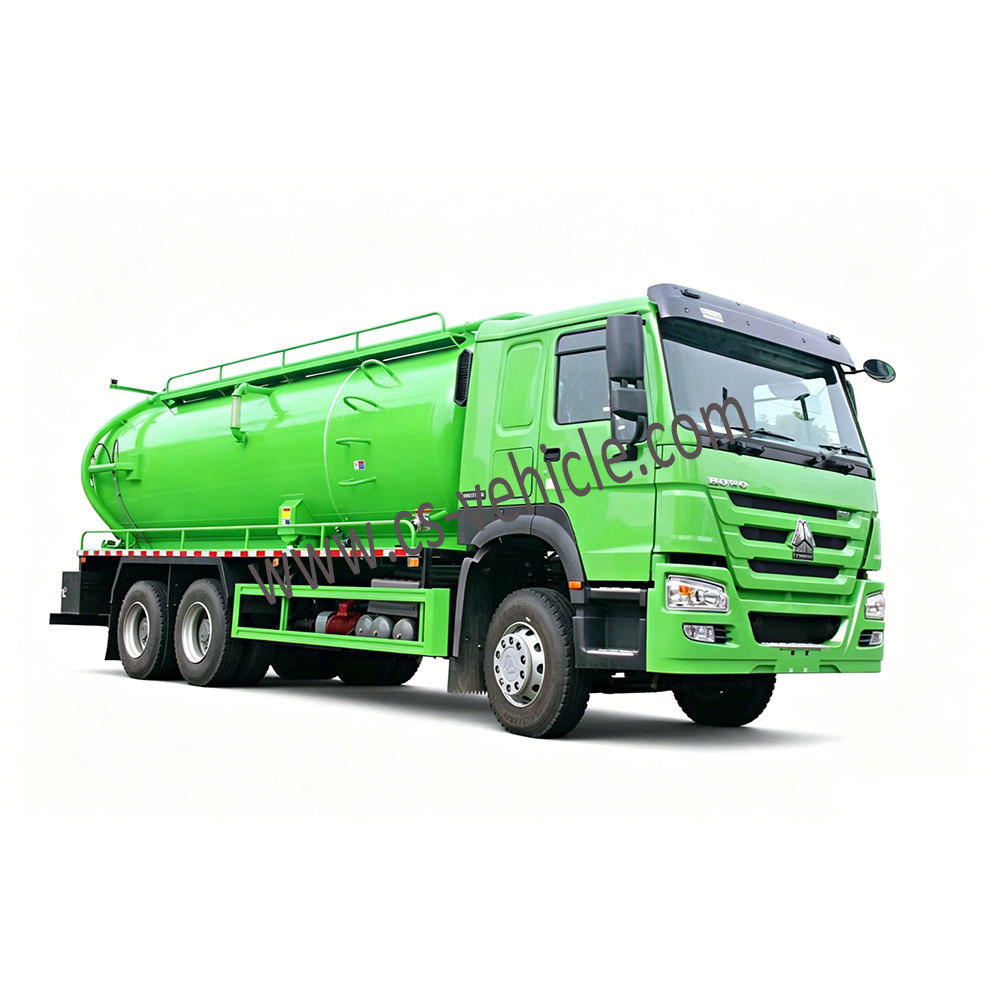

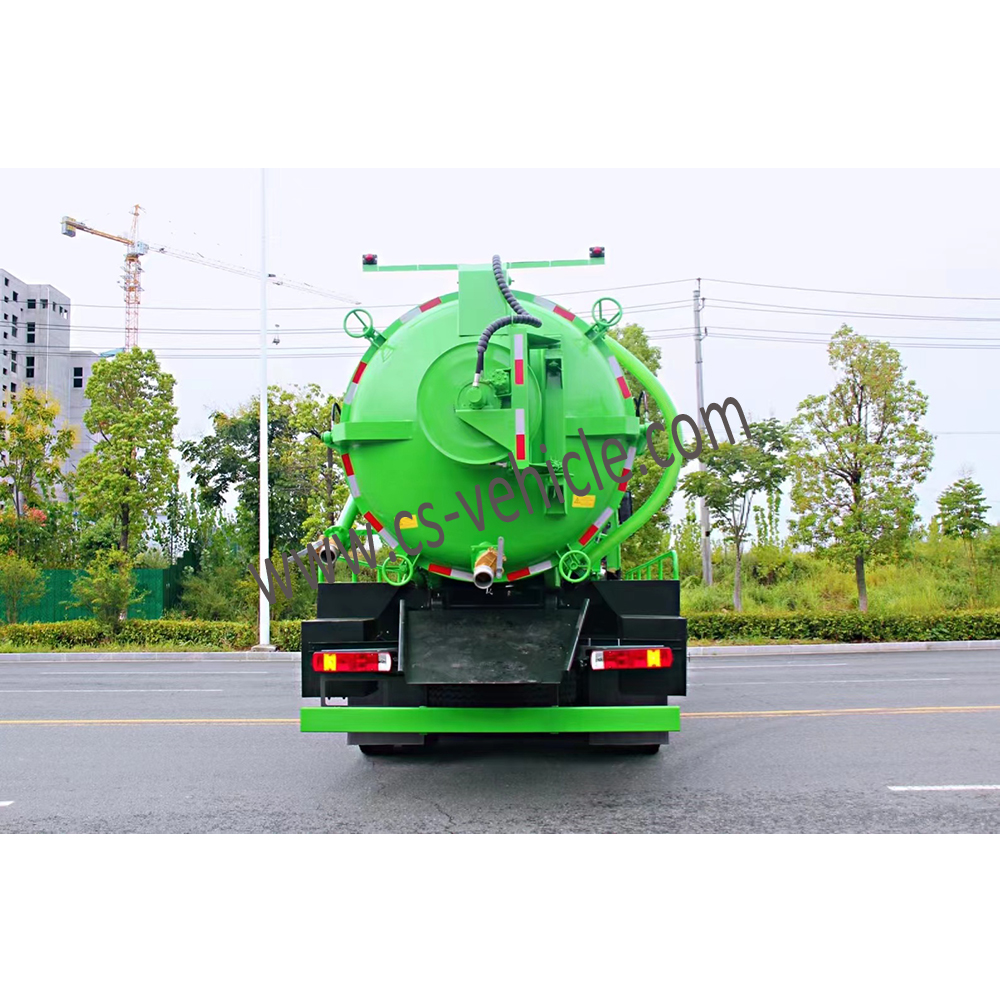

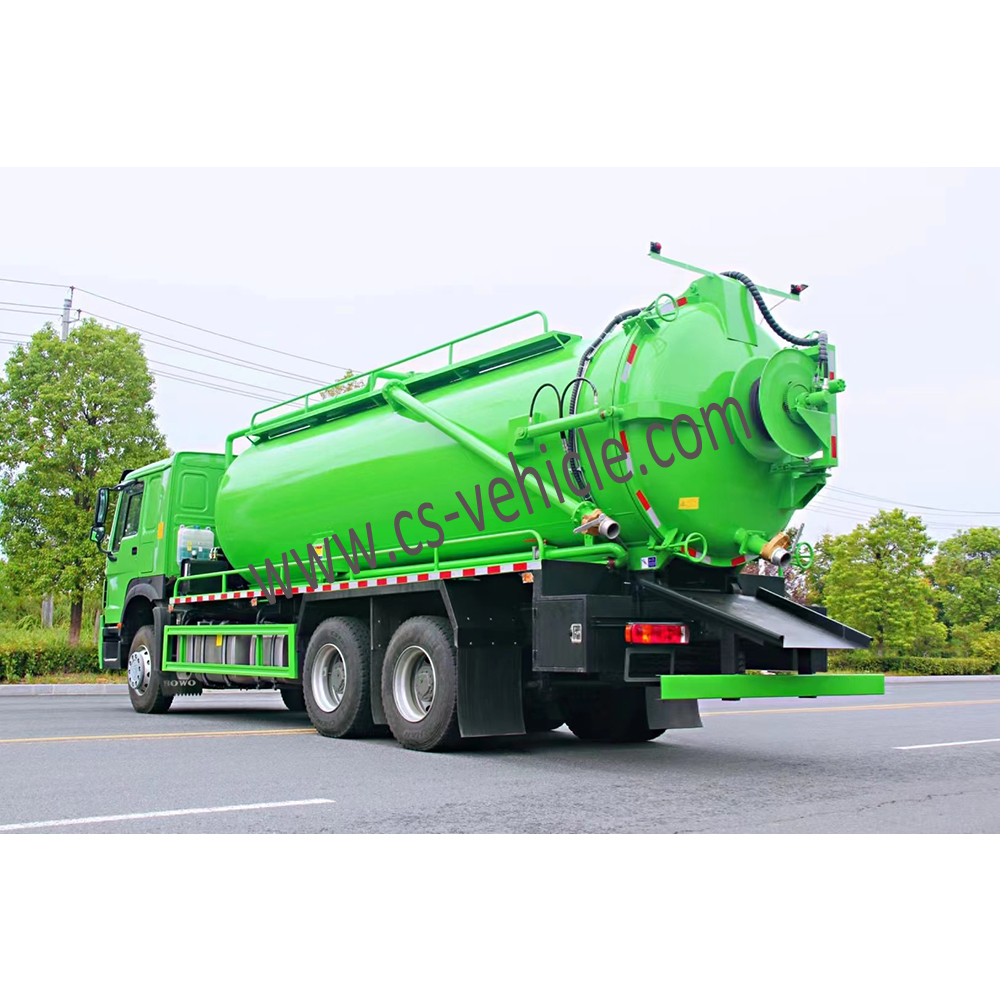

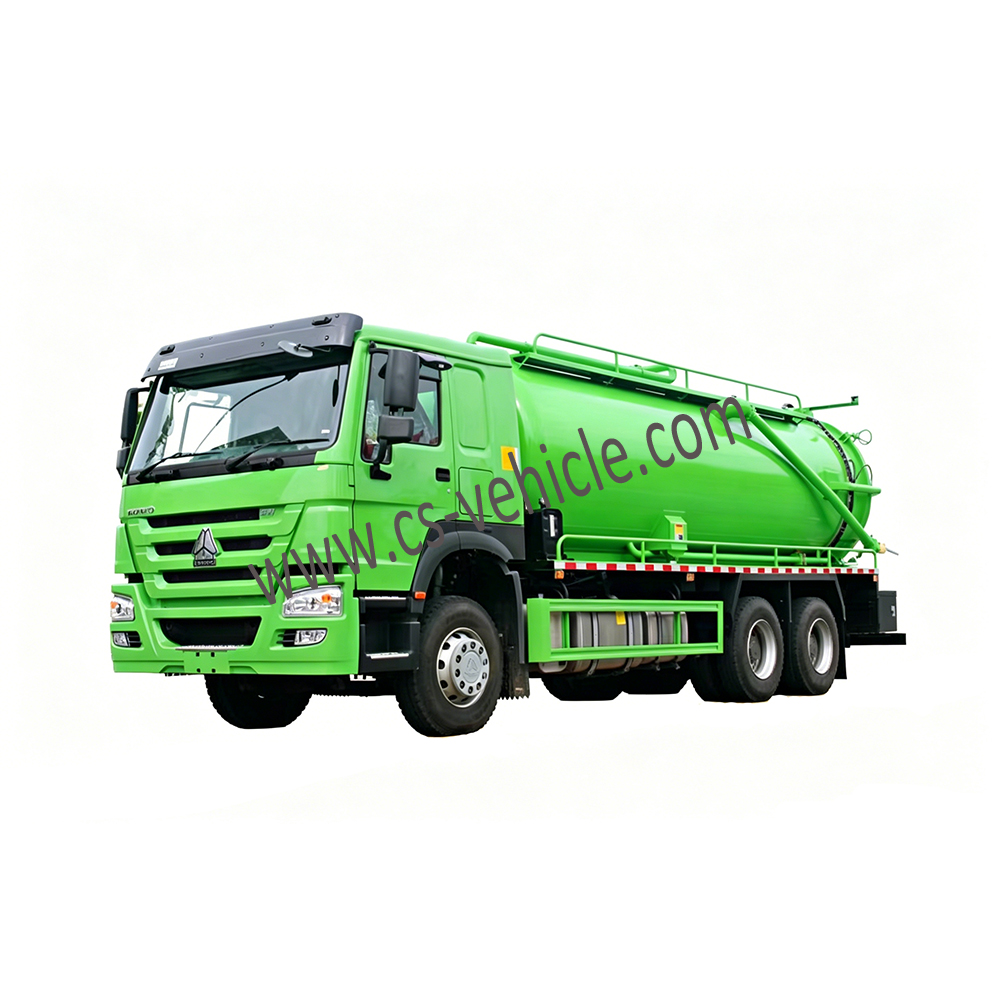

The New SINOTRUK HOWO Vacuum Sewage Suction Truck is a state-of-the-art vehicle specifically designed for efficient septic tank and sewer cleaning operations. Available in both 4x2 and 6x4 configurations, this truck is built to handle the rigors of waste suction and transportation with ease and reliability.
Powerful Suction System: Equipped with a high-performance vacuum pump, it provides a strong suction force capable of clearing even the most stubborn blockages.
Robust Frame: The truck's chassis is made of high-strength steel to ensure durability and stability during operation.
Large Capacity Tank: The sewage tank is spacious, allowing for extended periods of operation without frequent emptying.
Hydraulic System: A fully automated hydraulic system controls the suction and discharge processes, enhancing operational efficiency.
Safety Valves: Integrated safety valves prevent overflow and ensure safe operation under various conditions.
Easy Control: The cab is equipped with an intuitive control panel for easy management of all truck functions.
Versatile Applications: Suitable for a wide range of suction tasks, from residential septic tanks to industrial sewer systems.
Applications
Septic Tank Cleaning: Ideal for cleaning and emptying septic tanks in residential areas.
Sewer System Maintenance: Effective for clearing blockages and sucking out sludge from sewer systems.
Industrial Waste Management: Capable of handling industrial waste suction where high suction power is required.
Emergency Response: Can be rapidly deployed for emergency spill response and clean-up operations.
Suitability for Different Surfaces
The truck is designed to operate on various terrains, including urban roads, rural areas, and industrial sites.
Maintenance and Care:
Regular Inspection: Routine checks of the suction system, valves, and hydraulic components ensure optimal performance.
Tank Cleaning: Post-operation tank cleaning prevents buildup and maintains the truck's hygiene.
Hydraulic Fluid Check: Regular checks and changes of hydraulic fluid are crucial for smooth system operation.
Tyre Maintenance: Consistent tyre pressure checks and rotations extend tyre life and improve safety.
FAQ:
Q: What is the suction capacity of the SINOTRUK HOWO Vacuum Sewage Suction Truck?
A: The suction capacity varies based on the model, but our trucks are designed to provide industry-leading performance.
Q: How often should the truck be serviced?
A: We recommend a thorough service after every 500 hours of operation or as per the manufacturer's guidelines.
Q: Can the truck handle high-viscosity waste?
A: Yes, the truck is capable of handling high-viscosity waste with its powerful vacuum pump.
Q: Is the truck easy to operate?
A: Yes, with its user-friendly control panel and automated systems, the truck is designed for ease of operation.
The New SINOTRUK HOWO Vacuum Sewage Suction Truck is a powerful ally for maintaining clean and healthy environments. With its advanced features and robust design, it stands as a reliable choice for professional septic and sewer cleaning services.
Cabin | Driving type 6x4. Left hand driven | |
HW 76 cab, with two seats ,one sleeper. with air condition A/C.70° hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10970*2500*3400 |
Wheel base (mm) | 4600+1350 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 17/10 | |
Weight in KGS | Tare Weight | 12400 |
Payload | 20000 | |
Front axles loading capacity | 1x9500 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed (km/h) | 90 | |
Engine | Brand | Sinotruk |
Model | WP12.430E201 | |
Type | 4-stroke direct injection, 6-cylinder in-line, turbo-charging and inter-cooling | |
Displacement | 11.596L | |
Horse Power (HP) | 430 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710,10-speed forward and 2 reverse gear | |
Steering | Bosch brand | |
Tire Model | 12.00R20, 10 pieces with one spare | |
Tanker | Effective Tank Volume | 20000L |
Tank Thickness | Tank body 6 mm, seal is 8 mm | |
Tank Material | Carbon Steel Q235-B | |
Vacuum Pump | Pump brand | Yifeng |
Pump model | 2BEA | |
Rotation speed | 790-1170(r/min) | |
Absolute working pressure | 400Pa | |
Power | 30-55Kw | |
Quantity | 1pc | |
Suction Pipe | Length(m) | 6 m |
Quantity(pcs) | 2pcs | |
Main Parts | 1. Water-gas separator. 2. Oil-gas separator. 3. Tank body with pipe boxes on both sides. 4. Both sides with protective nets. 5. Multi-way valve. 6. Anti overflow valve. 7. Pressure gauge. 8. Floating ball alarm. 7. Hydraulic control rear cover, manual lock. 8. There is a ball valve (DN100MM) at the end of the tank. 9. Camera on the rear, screen in the cab. | |
Remarks | Tank can not be lifted. It has a inclined angle to let waste water flow out. | |
