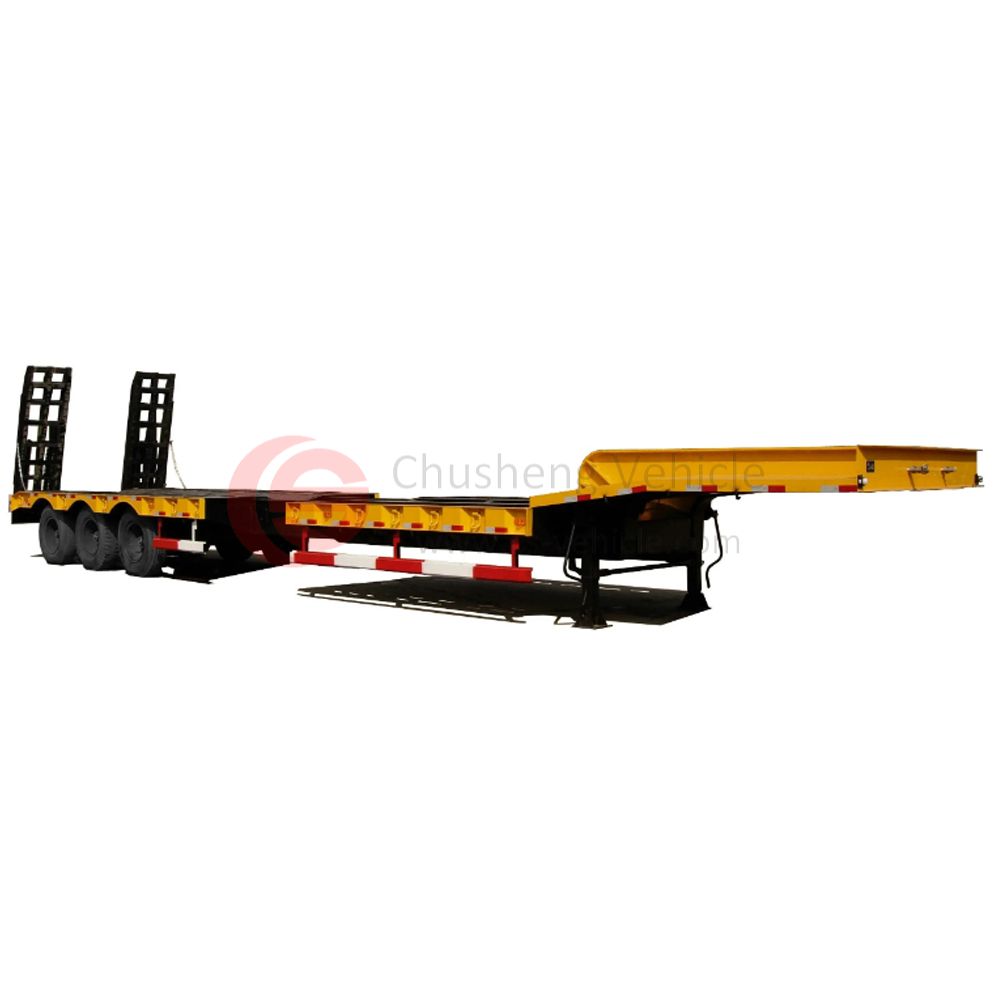

3-axle low-bed trailer | Ideal for efficient transportation of heavy equipment
Our lowbed semi-trailers are specifically designed for the seamless transportation of heavy machinery such as cranes and excavators. The low deck height enhances stability during transport, ensuring safety on the road.
Choose between 3, 4, or 5 axle configurations, with payload capacities tailored to your operational requirements. Hydraulic or mechanical ramps further simplify loading heavy equipment.
Made from high-strength steel, these trailers provide exceptional durability and resistance to wear, making them ideal for long-term use in challenging environments like construction sites and mines.
Equipped with advanced braking systems and optional ABS for optimal control, along with heavy-duty tires and robust suspension systems, our trailers ensure smooth and secure transportation even over rugged terrain.
Product Features
Durable and Strong Truck Body: The truck frame is made of high-strength steel, so it has strong load-bearing capacity, and it can easily transport all kinds of heavy equipment and overweight goods.
Low platform design: The trailer is lower, which makes loading more convenient, especially suitable for transporting high and wide goods.
Multi-axle configuration: 3 axle(or 4 axle/5 axle) design, which can distribute load pressure, provid higher stability and safety while driving.

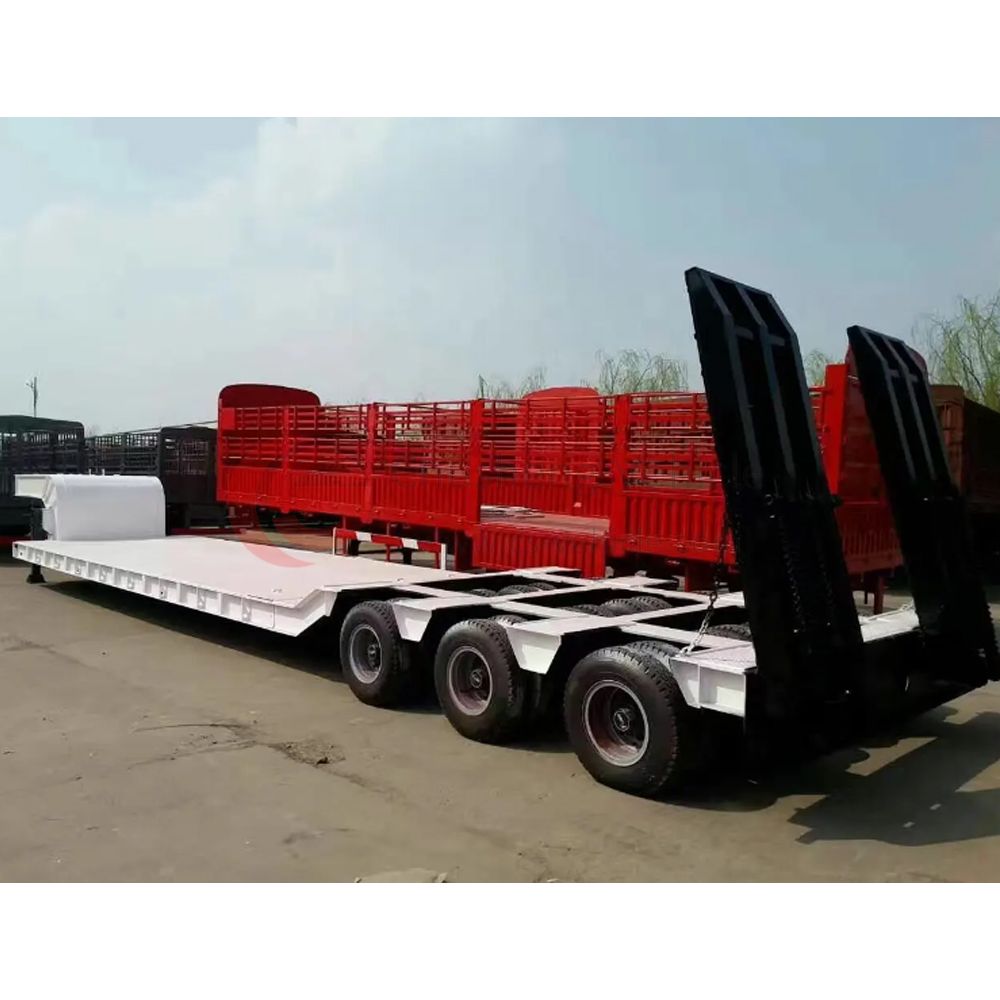

Flexible configuration: It can equipped with hydraulic or mechanical ladder, flexible selection according to the type of goods, to meet the different needs by working conditions.
High efficiency: The platform is designed to minimize the center of gravity of the goods so that ensure more safer and more stable in transportate.
Easy operation: Equipped with reliable braking system and suspension system, it provides excellent handling performance and ease of use.
Widely applicable: Supports a variety of cargo transportation needs, including construction machinery, mining equipment, large components, etc.
Low maintenance cost: The parts have high wear resistance and long design life, which reduces the frequency and cost of maintenance during use.
Engineering construction: Suitable for the transportation of large construction machinery such as excavators and bulldozers, meeting the efficient handling needs of construction sites.
Mining operations: Used to transport heavy mining machinery such as drilling rigs and crushing equipment, adapting to harsh working environments.
Large equipment logistics: Provide safe transportation guarantees for extra-long and extra-wide goods such as power station equipment and wind power towers.
Factory relocation: When transporting heavy industrial equipment, 3-axle low-bed trailers are an ideal choice.
3-axle low-bed trailer | Ideal for efficient transportation of heavy equipment
Our lowbed semi-trailers are specifically designed for the seamless transportation of heavy machinery such as cranes and excavators. The low deck height enhances stability during transport, ensuring safety on the road.
Choose between 3, 4, or 5 axle configurations, with payload capacities tailored to your operational requirements. Hydraulic or mechanical ramps further simplify loading heavy equipment.
Made from high-strength steel, these trailers provide exceptional durability and resistance to wear, making them ideal for long-term use in challenging environments like construction sites and mines.
Equipped with advanced braking systems and optional ABS for optimal control, along with heavy-duty tires and robust suspension systems, our trailers ensure smooth and secure transportation even over rugged terrain.
Product Features
Durable and Strong Truck Body: The truck frame is made of high-strength steel, so it has strong load-bearing capacity, and it can easily transport all kinds of heavy equipment and overweight goods.
Low platform design: The trailer is lower, which makes loading more convenient, especially suitable for transporting high and wide goods.

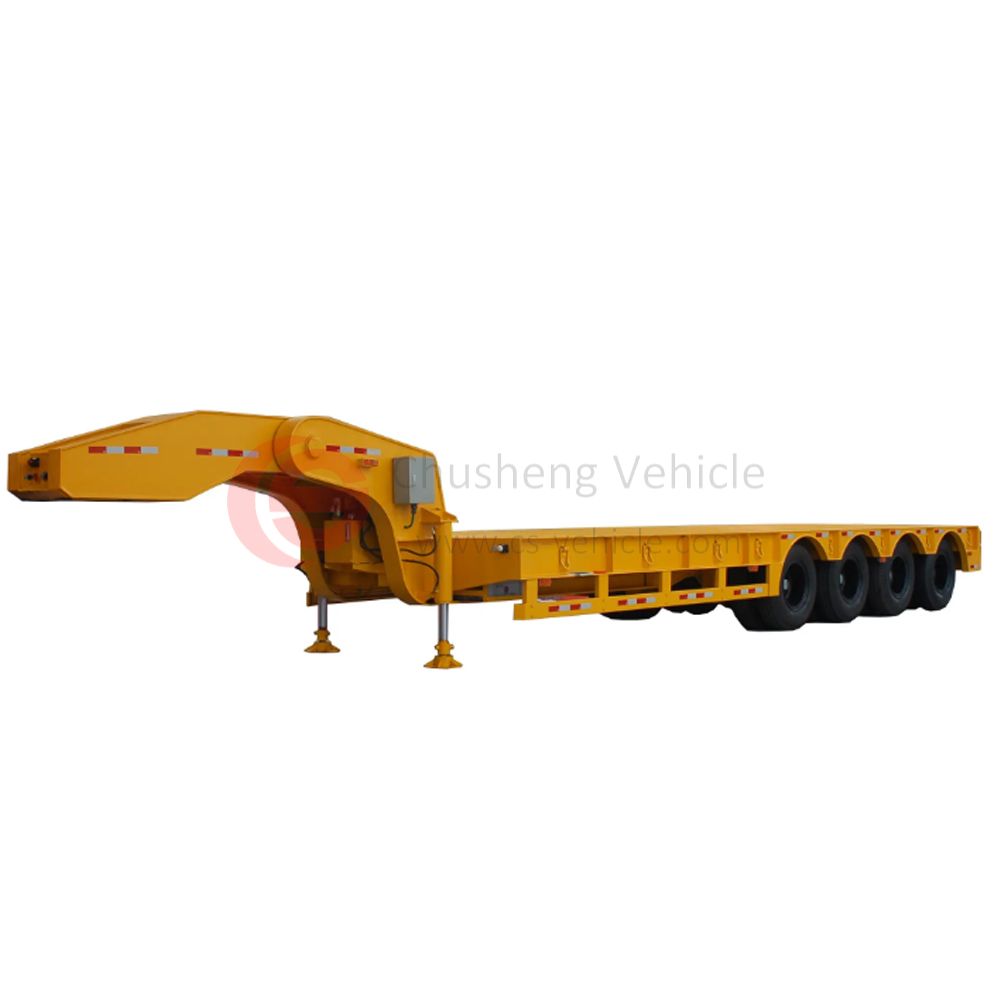

Multi-axle configuration: 3 axle(or 4 axle/5 axle) design, which can distribute load pressure, provid higher stability and safety while driving.
Flexible configuration: It can equipped with hydraulic or mechanical ladder, flexible selection according to the type of goods, to meet the different needs by working conditions.
High efficiency: The platform is designed to minimize the center of gravity of the goods so that ensure more safer and more stable in transportate.
Easy operation: Equipped with reliable braking system and suspension system, it provides excellent handling performance and ease of use.
Widely applicable: Supports a variety of cargo transportation needs, including construction machinery, mining equipment, large components, etc.
Low maintenance cost: The parts have high wear resistance and long design life, which reduces the frequency and cost of maintenance during use.
Engineering construction: Suitable for the transportation of large construction machinery such as excavators and bulldozers, meeting the efficient handling needs of construction sites.
Mining operations: Used to transport heavy mining machinery such as drilling rigs and crushing equipment, adapting to harsh working environments.
Large equipment logistics: Provide safe transportation guarantees for extra-long and extra-wide goods such as power station equipment and wind power towers.
Factory relocation: When transporting heavy industrial equipment, 3-axle low-bed trailers are an ideal choice.
DIMENSIONS | |||
Tare Weight | 12000 kgs | ||
Payload | 60000 kgs | ||
Overall Length | 13000 mm | ||
Overall Width | 3200 mm | ||
Work deck length | 9800mm ( not including the gooseneck’s length) | ||
Photo for reference, final produce can be made according to exact requirements | |||
SPECIFICATION | |||
Main beam | Heavy duty and extra durability designed I beam ; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 200mm; Middle Flange 12 mm, height 500mm; Bottom Flange 20 mm, width 200mm. | ||
Axle | 3 axles, 4 axle, 5 axle for optional | ||
FUWA 13Tons | |||
Suspension | Heavy duty mechanical suspension or FUWA brand air suspension. | ||
Floor | 4mm checker plate | ||
Side height | 800mm | ||
Leaf Spring | 10 piece Leaf spring | ||
King Pin | JOST brand 3.5” Bolt-in King Pin | ||
Landing Gear | FUWA 28T heavy duty landing gear | ||
Tire | 8.25R20, 12 pieces | ||
Braking System | WABCO relay valve;T30/30+T30 Spring brake chamber;40L air tanks |
DIMENSIONS | |||
Tare Weight | 12000 kgs | ||
Payload | 60000 kgs | ||
Overall Length | 13000 mm | ||
Overall Width | 3200 mm | ||
Work deck length | 9800mm ( not including the gooseneck’s length) | ||
Photo for reference, final produce can be made according to exact requirements | |||
SPECIFICATION | |||
Main beam | Heavy duty and extra durability designed I beam ; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 20mm,width 200mm; Middle Flange 12 mm, height 500mm; Bottom Flange 20 mm, width 200mm. | ||
Axle | 3 axles, 4 axle, 5 axle for optional | ||
FUWA 13Tons | |||
Suspension | Heavy duty mechanical suspension or FUWA brand air suspension. | ||
Floor | 4mm checker plate | ||
Side height | 800mm | ||
Leaf Spring | 10 piece Leaf spring | ||
King Pin | JOST brand 3.5” Bolt-in King Pin | ||
Landing Gear | FUWA 28T heavy duty landing gear | ||
Tire | 8.25R20, 12 pieces | ||
Braking System | WABCO relay valve;T30/30+T30 Spring brake chamber;40L air tanks |
