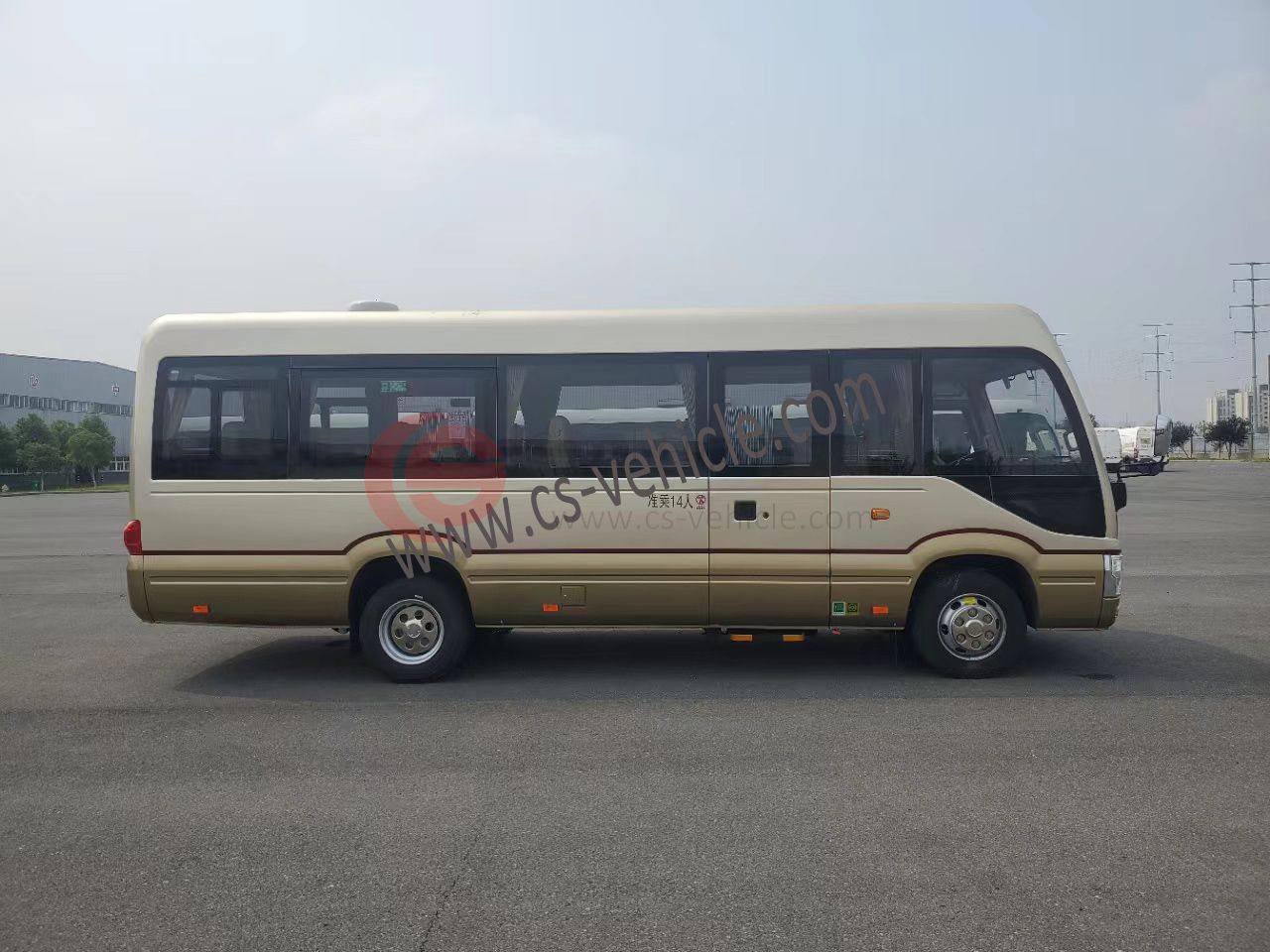

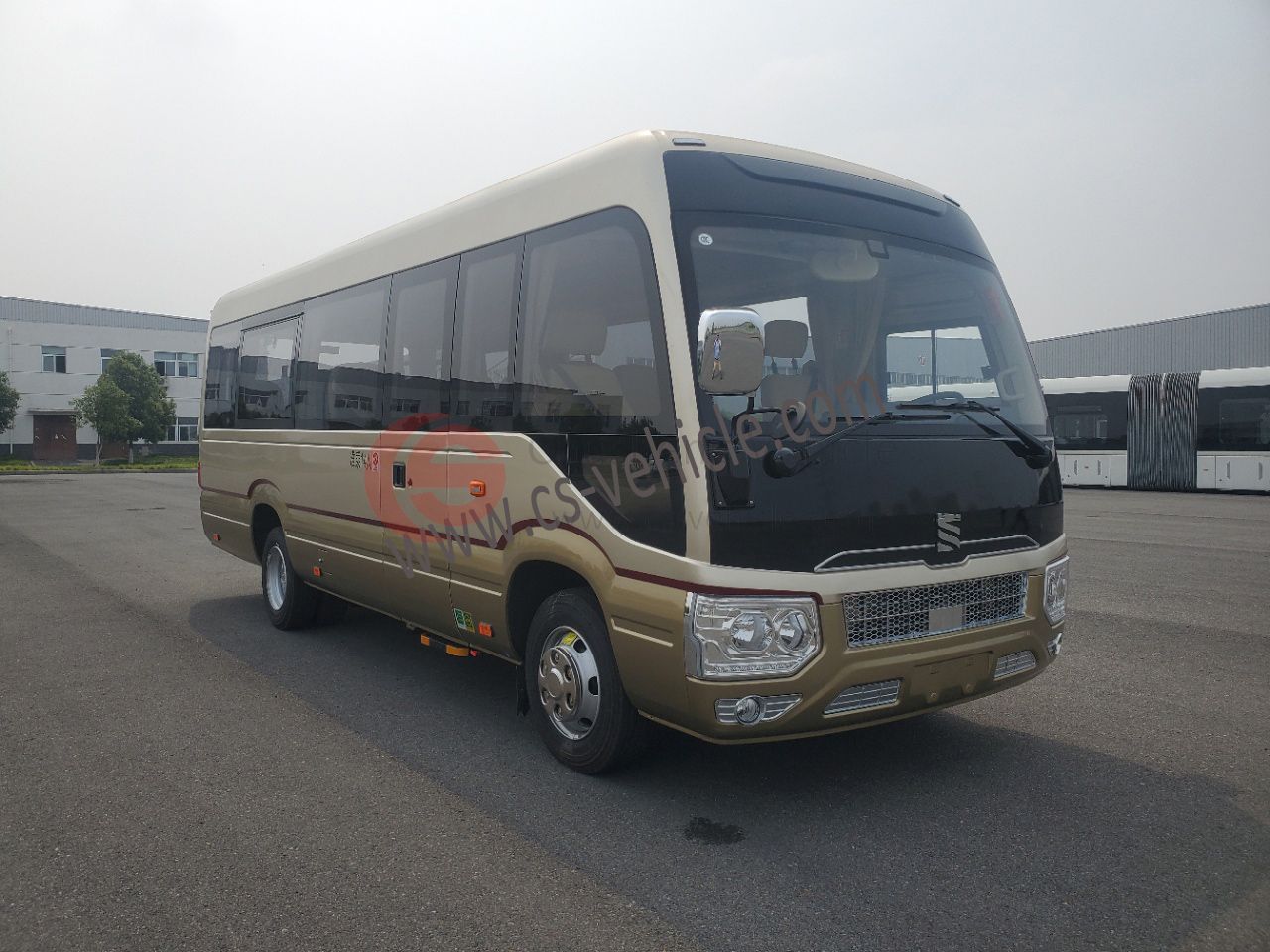

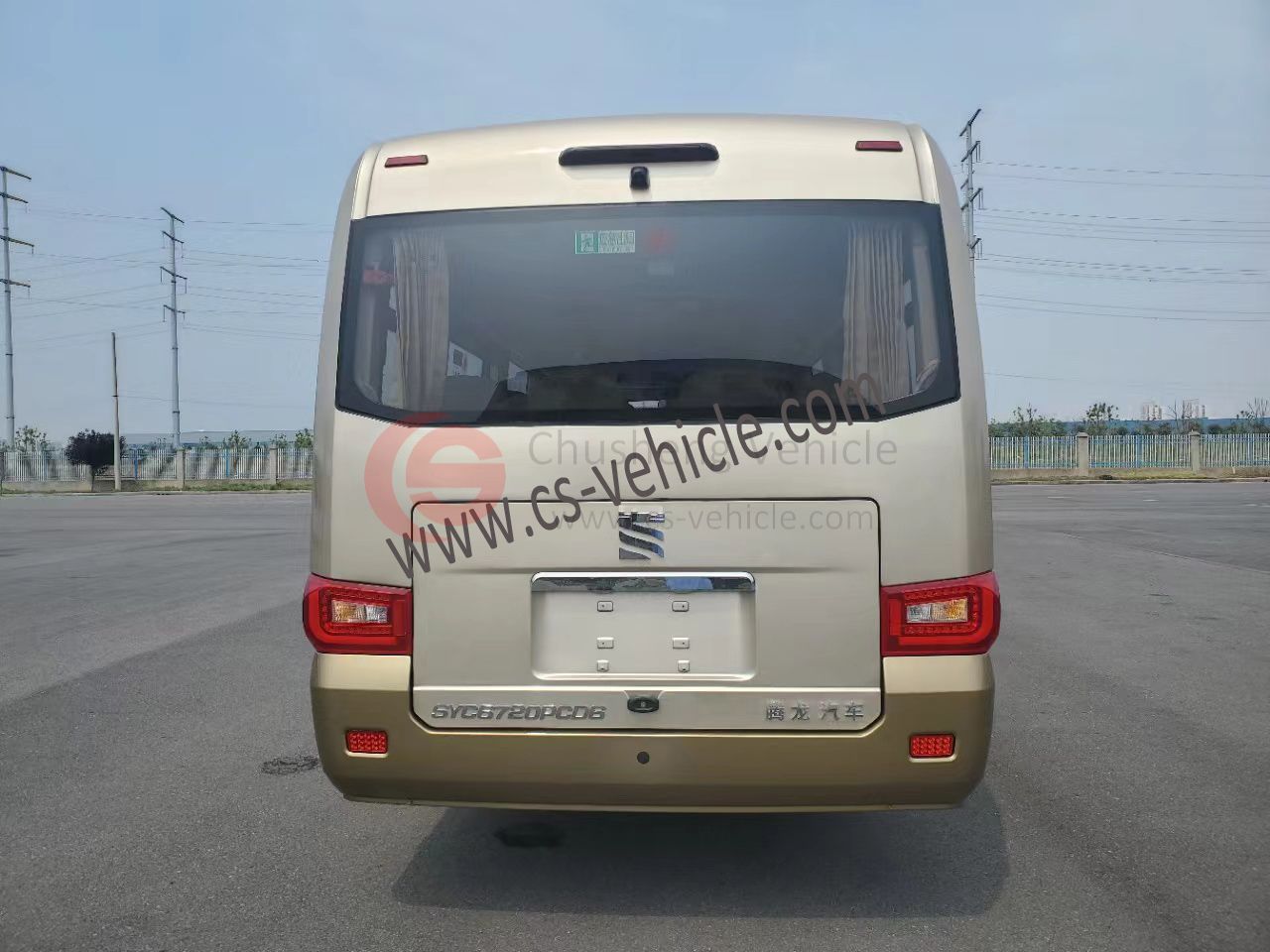

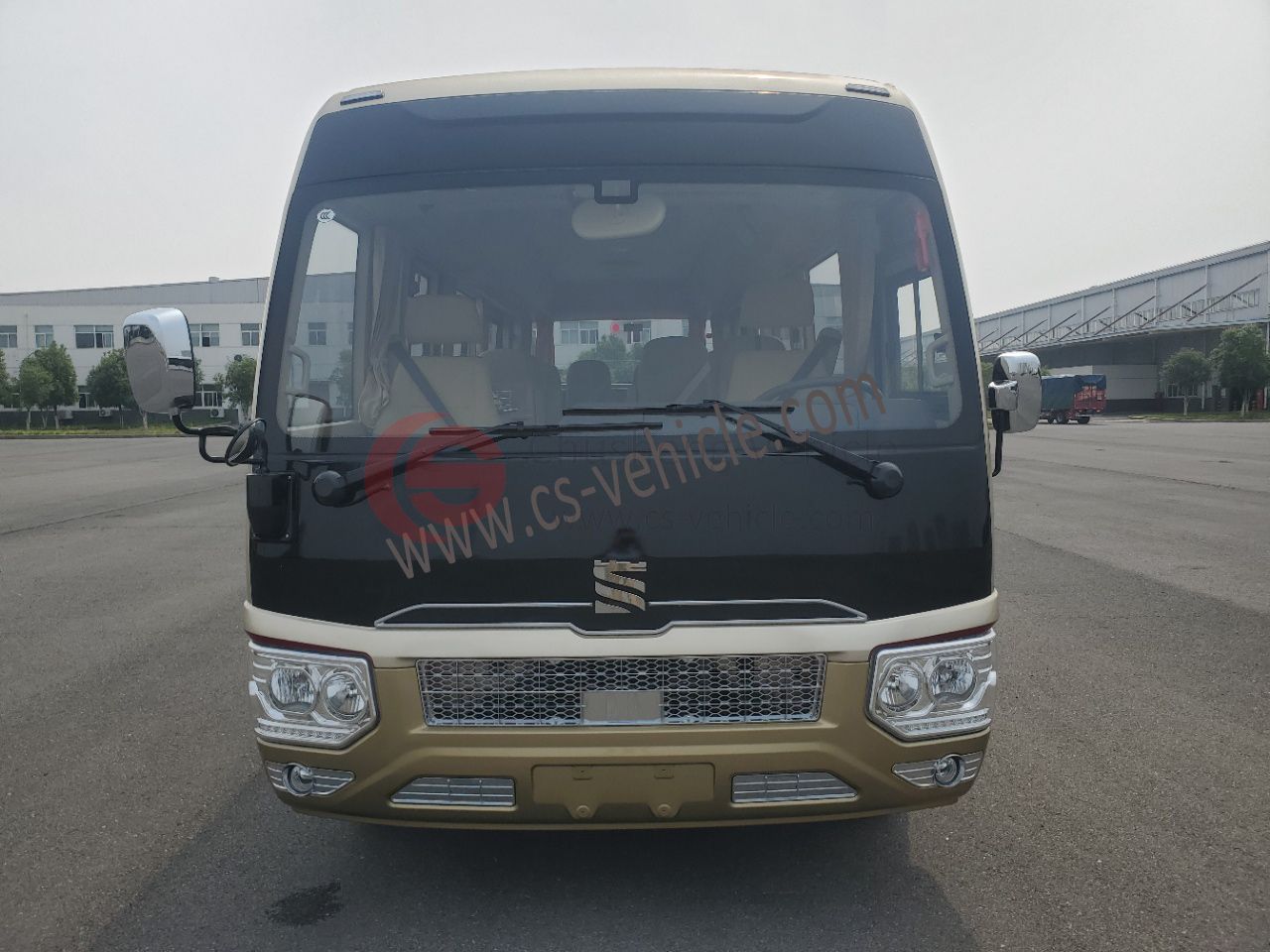

Brand New Luxucy Diesel Coaster Bus 23 seats Small Traveling Passengers Transport Bus

This coaster bus is known for its durability, safety, and reliability, it is widely used for tourism, school transit, commercial shuttles, and humanitarian missions.

Seating Capacity: Typically accommodates between 23 and 30 passengers, including the driver.

Commercial Shuttles: Used extensively by hotels, airports, and tour operators for group transport.
Motorhome Conversions: Highly sought after by van-lifers and adventurers for camper conversions due to its reliable mechanics and spacious shell

Quantity:
Availability:





Inquire Add to Basket PDF Export

Brand:
JIUZHOU

Dimensions & Capacity: Measures 7234mm×2240mm×2850mm(LWH) and seats between 16 to 30 passengers, with a total rated capacity of up to 33.
Powertrain: Equipped with a diesel engine (under 4L capacity) paired with manual/automatic transmission for smooth urban driving.
Emissions Standard: Certified to Euro 3 emission standards.
Application: Highly customizable and suited for high-frequency city commuting, hotel shuttles, and light intercity transport.

1.Basic parameters
Model			SYC6720
Vehicle dimension (mm)			7234 × 2240 × 2770
Engine/Motor layout			Front-engine, rear-wheel drive

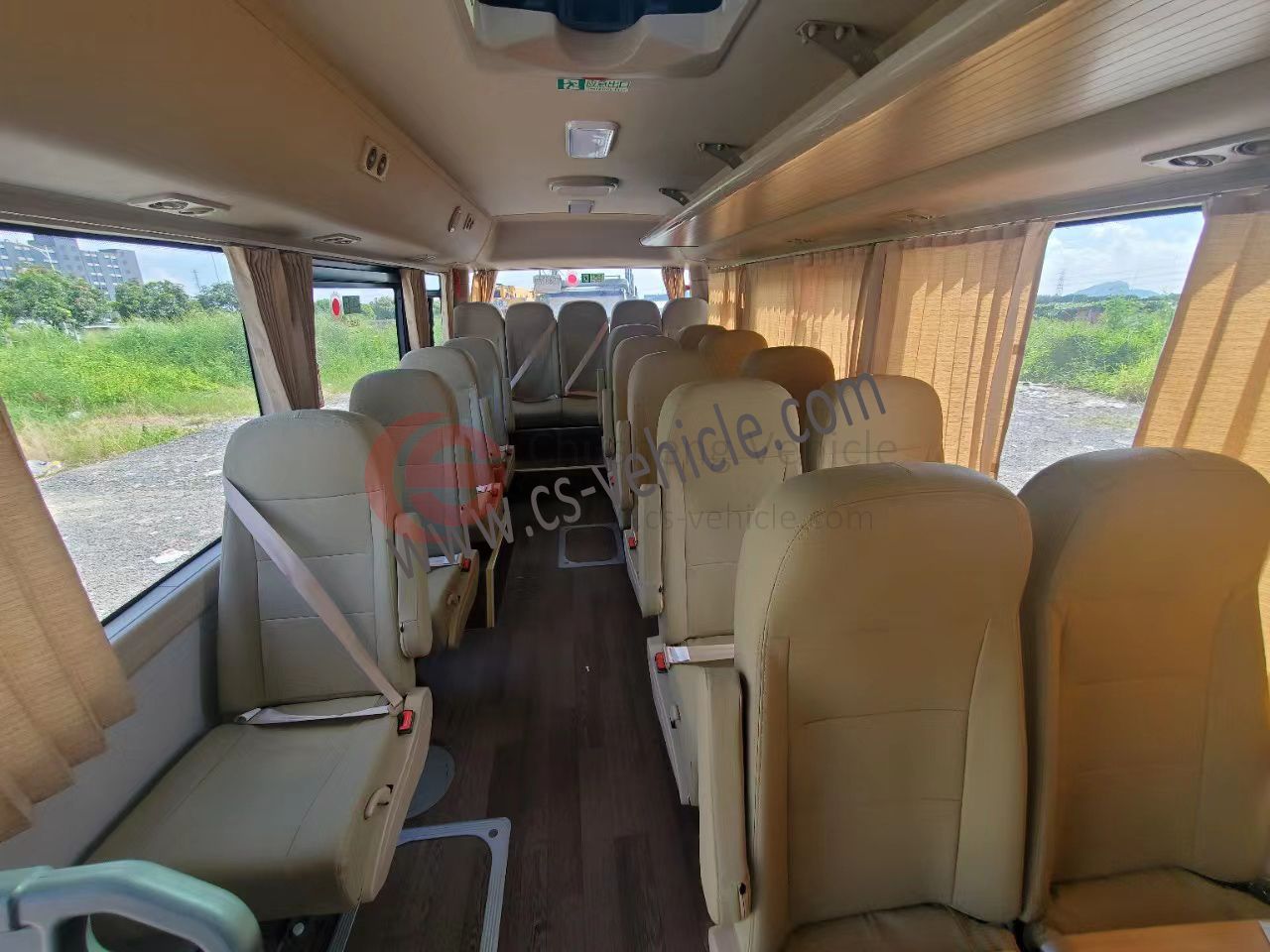

Standard Seat capacity			23-30
Wheelbase (mm)			3935
Front / rear wheel distance (mm)			1850/1650
Front / rear suspension (mm)			1160/2139
Approach / departure angle (°)			19/11
Curb weight (kg)			4950,5210
Max G.V.W (kg)			7005
Max speed (km/h)			100
Baggage hold volume (m³)			0.45-0.9
Body structure & step			Non-bearing type
2. Vehicle configuration details
Seq.	Item	Standard		Optional
1	Emission standard	Euro 3
2	Brand of engine	Yuchai YCY30150-30
3	Horse power	150
4	Brand & Model of Gearbox	Fast, 6 forwards gearbox
5	Clutch	Chinese brand
6	Front / rear axle brand & load	Dongfeng 2.7/4.5T
7	Maintenance-free hub & lubrication	General grease lubrication
8	Principal speed ratio	4.33
9	Suspension	Few-leaf spring (front 3 / rear 4) with transverse stabilizing rod
10	Braking system	Exhaust brake / front and rear disc type
11	Steering system	Hydraulic assistance
12	Tires	7.50R16
13	Rim	Steel
14	Tank volume	90L/Steel
3. Security protection configuration
1	EBS/ABS electronic stabilization system	4S/4M
2	Tire pressure monitoring and alarm device	Alarm of insufficient front tire pressure
3	Emergency safety device for front tire burst	Yes
4. Electrical devices and air conditioners
1	Air conditioning Brand & Refrigeration capacity	16000 kcal / split style
2	Heater	Yes
3	Defroster	Yes
4	Digital clock electronic clock	Yes
5	Reversing image system	Yes
6	Audio-visual system	Hard disk player plus two 18.5-inch monitors
7	Interior lighting	LED light
8	Wiper	Yes
9	Driving recorder	Vehicle Terminal of Satellite Positioning system with driving recording function
5.Body assembly
1	Body material	All galvanized steel
2	Front door/ Middle door	Pneumatic pendulum
3	Step	Two-stage step
5	Rearview	Rabbit ear type manual rearview mirror
6	Seat belt arrangement	Triangle type
7	Passenger seat & alarm device without seat belt	Yes
8	Driver’s seat	Manuel
9	Roof window	Yes
10	Arrangement of escape window & side escape door	Yes
11	Windshield	Sandwich glass
12	Side window	Toughened glass
13	Floor	12mm bamboo glue floor + ordinary quartz sand floor leather
14	Sun visor	Yes
15	Curtain	Folding polyester curtain
6.Others
1	Paint	Plain / champagne gold
2	Electrophoretic antiseptic	Yes
3	Line & connector	Tinned Flame retardant Copper Wire & Waterproof Connector
4	Interior material standard	Flame retardant and environment friendly materials
5	Luggage rack	Yes
