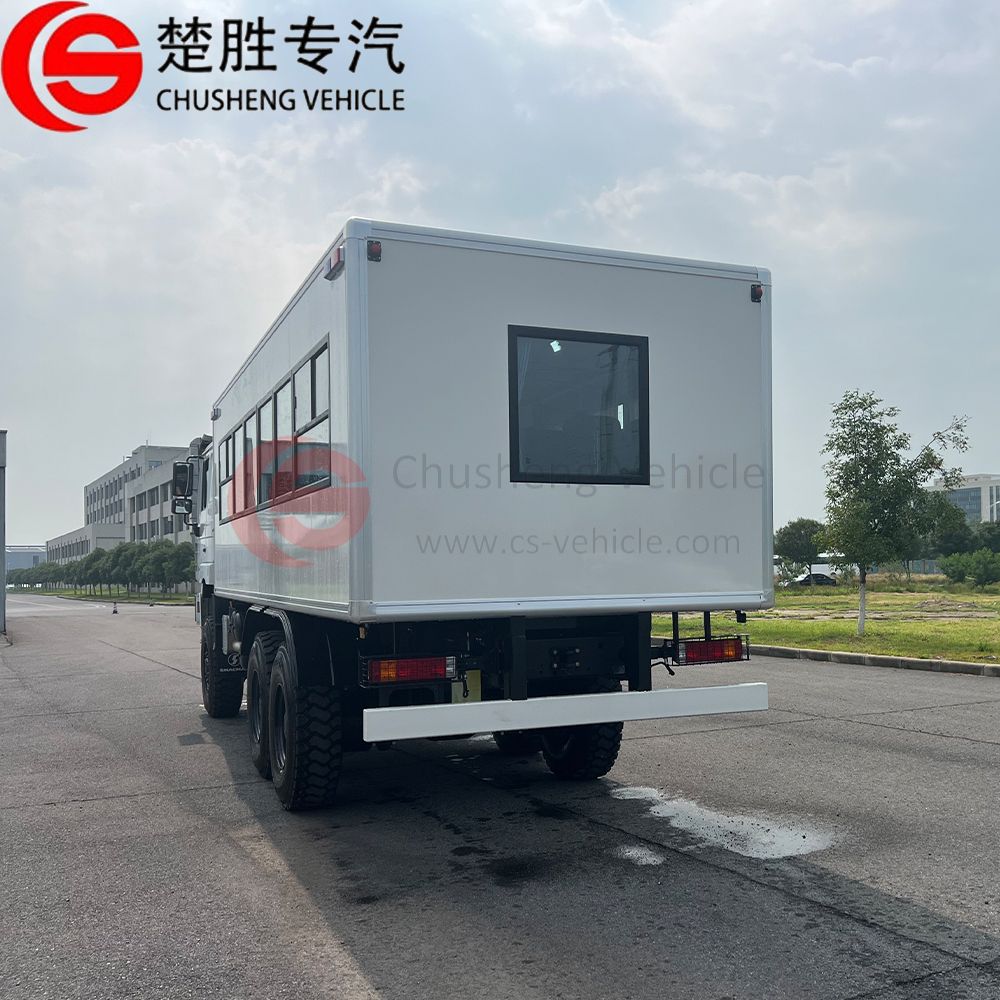

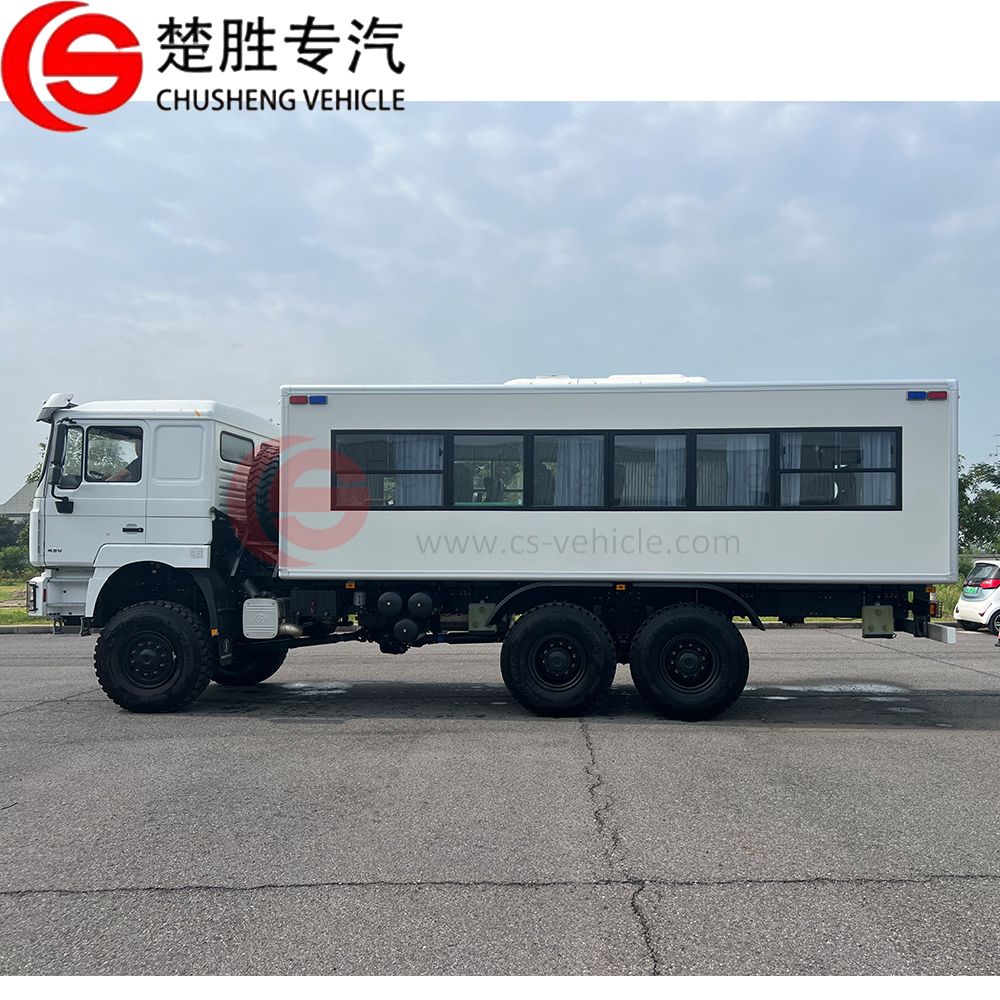

Shacman F3000 6x6 430hp Fully Enclosed Bus Passenger Transport Customized Off Road Truck Bus

Techinical parameters for Shacman F3000 6x6 430hp Bus Personnel Transport Van Truck
Availability:
Quantity:

PDF Export

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Shacman Truck Bus

  • Shacman


Features


  • Powerful system: Equipped with high-performance diesel engine (usually Weichai, Cummins, etc., optional), with strong load-bearing capacity and excellent climbing.

  • Sturdy chassis structure: Adopting Shacman's mature truck chassis technology, it has strong pressure resistance, adapts to complex road environments, and has a long service life.

  • Flexible modification platform: The body design can be customized according to customer needs, such as carrying people, cargo, mobile medical care, on-site command, mobile office, etc.

  • Improved comfort: Although based on the truck platform, air conditioning, soft seat bags, sound insulation interior, etc. are optional to enhance the riding experience.

  • Easy maintenance: The Shacman brand has a wide after-sales service network, and maintenance is convenient and fast.

  • High cost performance: Compared with traditional large buses, Shacman truck buses have higher price flexibility and lower maintenance costs.



Usually Application


  • Mining area and construction site pick-up and drop-off: used for daily pick-up and drop-off of employees in mining areas, construction sites or remote areas.

  • Military/oil fields/large enterprises: used for commuter vehicles within large bases or parks.

  • Rural transportation: suitable for areas with poor rural road conditions, used for urban and rural passenger transportation.

  • Mobile engineering vehicle platform: modified into command vehicles, engineering maintenance vehicles, publicity vehicles, emergency rescue vehicles, etc.

  • School or group shuttle vehicles: some schools or training bases will choose this type of vehicle to pick up and drop off personnel.

  • Tourism or short-distance charter: suitable for group travel in specific terrain.


Product name

Shacman F3000 6x6 430hp Bus Personnel Transport Van Truck

Vehicle Main Dimensions

Overall dimensions (LxWxH) (mm)

10000*2500*3600

Van body length (mm)

5000mm

Wheel base (mm)

4375+1400

Wheel track  (front/rear) (mm)

2022/2041

Approach/Departure angle (°)

16/22

Weight in KGS

Curb Weight (kg)

12000

Reted loading capacity (kg)

20000

Front/Rear axles loading capacity (kg)

1x7000/2x13000

Max. driving speed (km/h)

85

Engine

Model

WP10.340E22/WP12.400E201/WP12.430E201

Type

4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking

Horse Power(HP)

340HP~430HP

Emission standard

Euro II

Gearbox

10 forwards, 2 reverse

Steering

Left hand driven

Fuel tank (L)

400L

Tire

12.00-20,Optional 12.00R20,11.00-20,11.00R20

Body specifications

Type

Bus van body

Seats

10~30

A/C

yes

Curtain

 Yes


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as original manufacturer
3.Products Quality Certification SGS CCC ISO TUV
4.Perfect after-sale service
5.Customized products are available as per clients' requirements
6.Export to more than 60 countries and regions


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.

2. Other spare parts could be supplied by OEM at factory cost prices.
3. Regularly follow up to know the vehicle's working status.
4. Free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers are ready if any quality complains, will respond in 24 hours with feedback and solution.


Flexible Payment Term:

1. 100% TT

2. 30% TT in advance,70% before shipment

3. 100% USANCE LC at sight

4. TT in advance, balance in LC


Delivery time:

30-40 working days after receipt of advance deposit


Packing and Shipping:

Nude and wax, shipped in container ship, bulk vessel, flat deck or RO-RO ship
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
