Brand New Luxucy Diesel Coach Bus 50 seats Traveling Passengers Tourism Transport Bus

The primary use of large passenger buses is in the transportation sector. They can be used for various modes of transport, including city buses, long-distance passenger transport, and tourist charter buses. In city buses, large passenger buses typically operate on major roads and in densely populated areas, providing convenient and fast transportation services to citizens. Long-distance passenger transport refers to long-distance travel across cities and provinces; large passenger buses are usually equipped with comfortable seats and air conditioning to provide passengers with a comfortable travel experience. Tourist charter buses provide transportation services for tour groups; large passenger buses often operate between tourist attractions, providing tourists with convenient travel options.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
SYC6122
Brand:
JIUZHOU

12-meter Bus (Yuchai 330 hp + Fast Gear Transmission) Specifications
Basic Dimensions
Overall Dimensions: 12000×2550×3690mm
Wheelbase: 6000-6300mm
Gross Vehicle Weight: 18000kg, Curb Weight approx. 12500-13500kg
Seats: 45-55 + 1 (driver), adjustable seating arrangement
Tire Specifications: 295/80R22.5, 6 tires

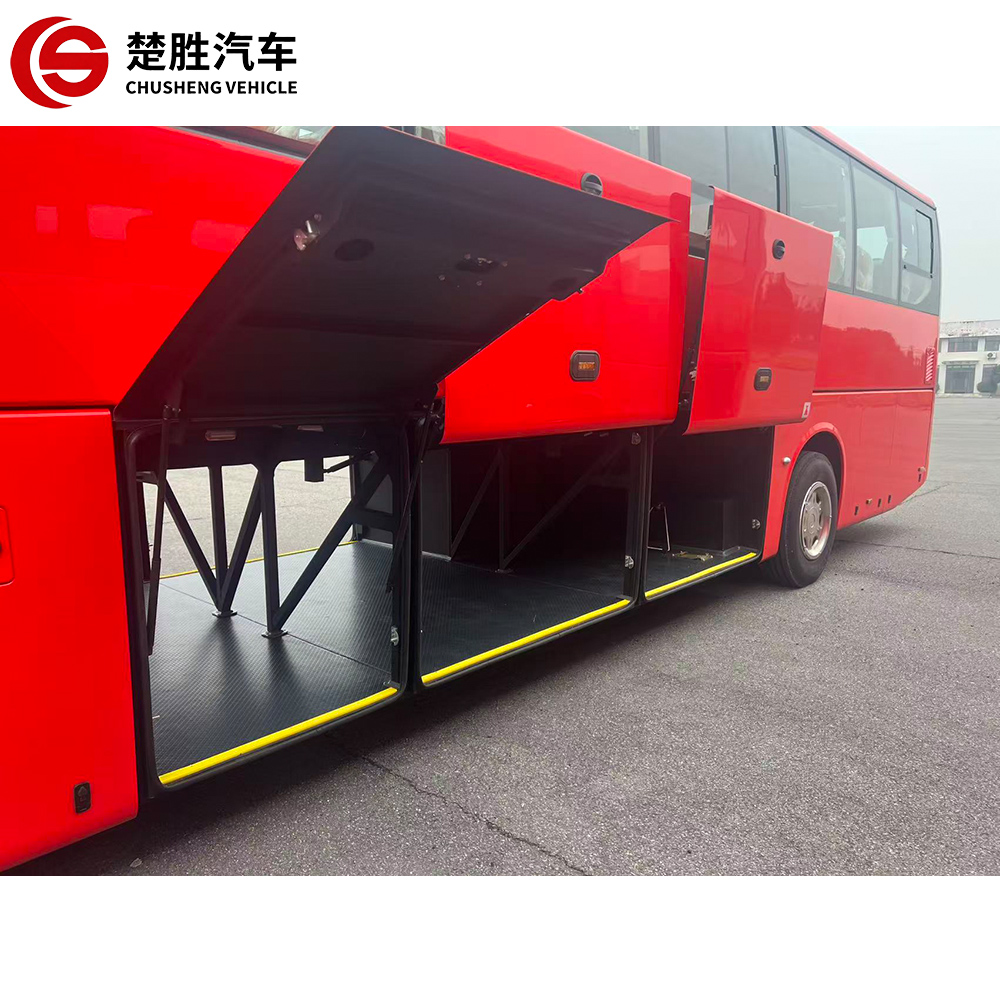

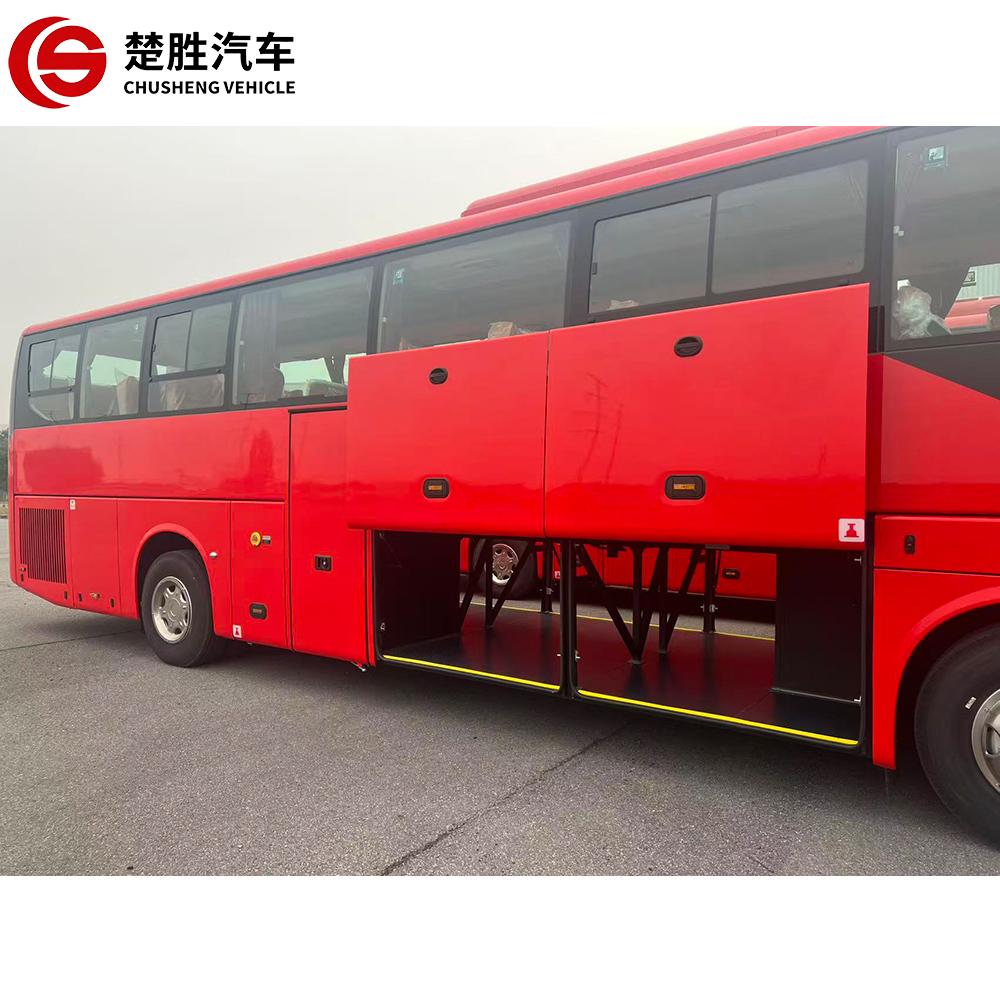

Fuel Tank: 350-400L, side-mounted through-type large luggage compartment
Powertrain
Engine: Yuchai 330 hp inline six-cylinder diesel engine, rated power 243kW, maximum torque 1280N・m, high torque at low speed, high reliability, easy maintenance, compatible with China V emission standards / China VI emission standard

Chassis and Braking

Suspension: Six-airbag air suspension with shock absorbers, optional hydraulic retarder, good high-speed stability

Axles: Bus-specific front and rear axles, disc/front disc and rear drum brakes, air brake system, standard ABS; optional tire pressure monitoring

Body and Interior Configuration

Body: Fully monocoque bus body, outward-swinging passenger doors, fully enclosed tempered glass side windows

Air Conditioning: Roof-mounted high-power bus air conditioner, optional independent water-heated boiler heating system

Seats: High-back adjustable passenger seats with headrests and armrests; interior reading lights, luggage racks, LED lights Step Lights

1.Basic parameters
Model			SYC6122D
Structure size (mm)			11980×2490×3580
Standard Seat capacity			57+1+1
Wheelbase (mm)			6000
Front / rear wheel distance (mm)			2084/1866
Front / rear suspension (mm)			2630/3350
Climbing ability (%)			35.4
Curb weight (kg)			11555
Max G.V.W (kg)			19500
Max speed (km/h)			＞100
fuel tank capacity (L)			450
Gas supply bottle volume			N/A
Trunk volume (m³)			8.5
2.Vehicle chassis configuration and main parameters
Seq.	Item	Standard		Optional
1	emission standard	Euro 2
2	Engine brand & Installation position	Yuchai engine & rear position
3	Horse power	340hp
4	Front/rear axle brand & load (T)	Dongfeng Dena 6.5T/13T
5	Braking type (e.g. front disc and rear drum)	Front plate and back drum
6	Suspension type (e.g. airbag suspension)	Airbag suspension
7	Steering	hydraulic power steering
8	Wheel hub material	Aluminum alloy wheels
9	Wheel end maintenance free	NO
10	Tire Size	295 /80R22.5
11	spare wheel	YES
Other customized configurations
3.Vehicle configuration and main parameters
1	Vehicle structure (e.g. fully loaded, non loaded)	Fully load-bearing, recessed floor
2	Step form for boarding	N/A
3	Driver's door	N/A
4	Surrounded by drivers	N/A
5	Passenger doors (such as front door, middle door)	Pneumatic external swing aluminum alloy door
6	Emergency door	N/A
7	Opening method and material of luggage compartment door	Manual translation&aluminum alloy
8	driver seat	Six way adjustable, air cushion shock absorption, three-point seat belt, unfastened seat belt alarm function
9	Number and material of passenger seats	57+1+1 & Imitation leather with sponge
10	Luggage rack (e.g. single-sided, double-sided)	Bilateral open luggage rack
11	Air conditioning (such as built-in air conditioning, overhead air conditioning)	Overhead air conditioning
12	warm wind	Yes
13	Air duct (such as aluminum alloy panoramic air duct)	Open air duct luggage rack with ambient light, reading light, speaker, and seat number plate
14	rearview mirror	Electric regulation, electric heating
15	Defroster	Yes
16	Windscreen	Double windshield laminated glass
17	Rear windshield	Single layer tempered steel
18	Side window opening form & glass color	Double windshield laminated glass sliding driver's window+sliding rear rear window+closed side window&light gray
19	Driving recorder	NO
20	6-channel video surveillance system (monitor+5-channel video+reversing radar)	7inch LCD screen+(reverse monitoring+four screens inside the car)+reverse radar
21	Car body paint&pattern	Execute according to customer requirements
22	Fixed 19 inch car TV (Front and middle of the car)	Front 19 inch fixed LCD color display, middle 19 inch LCD color display (electrically foldable)
23	charging ports & quantity	N/A
Other customized configurations
