| Category | Parameter Item | Configuration Specification |
|---|---|---|

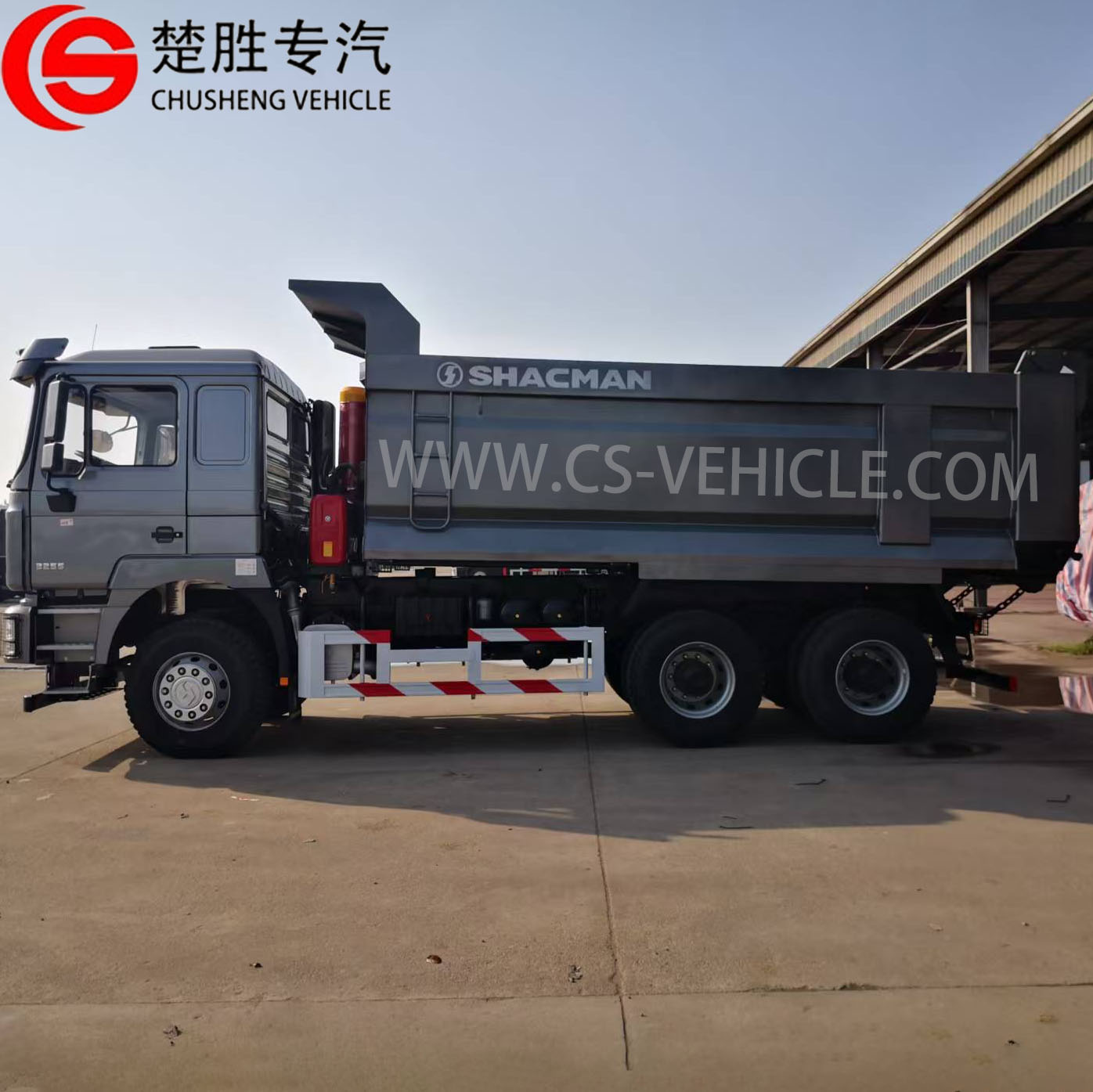

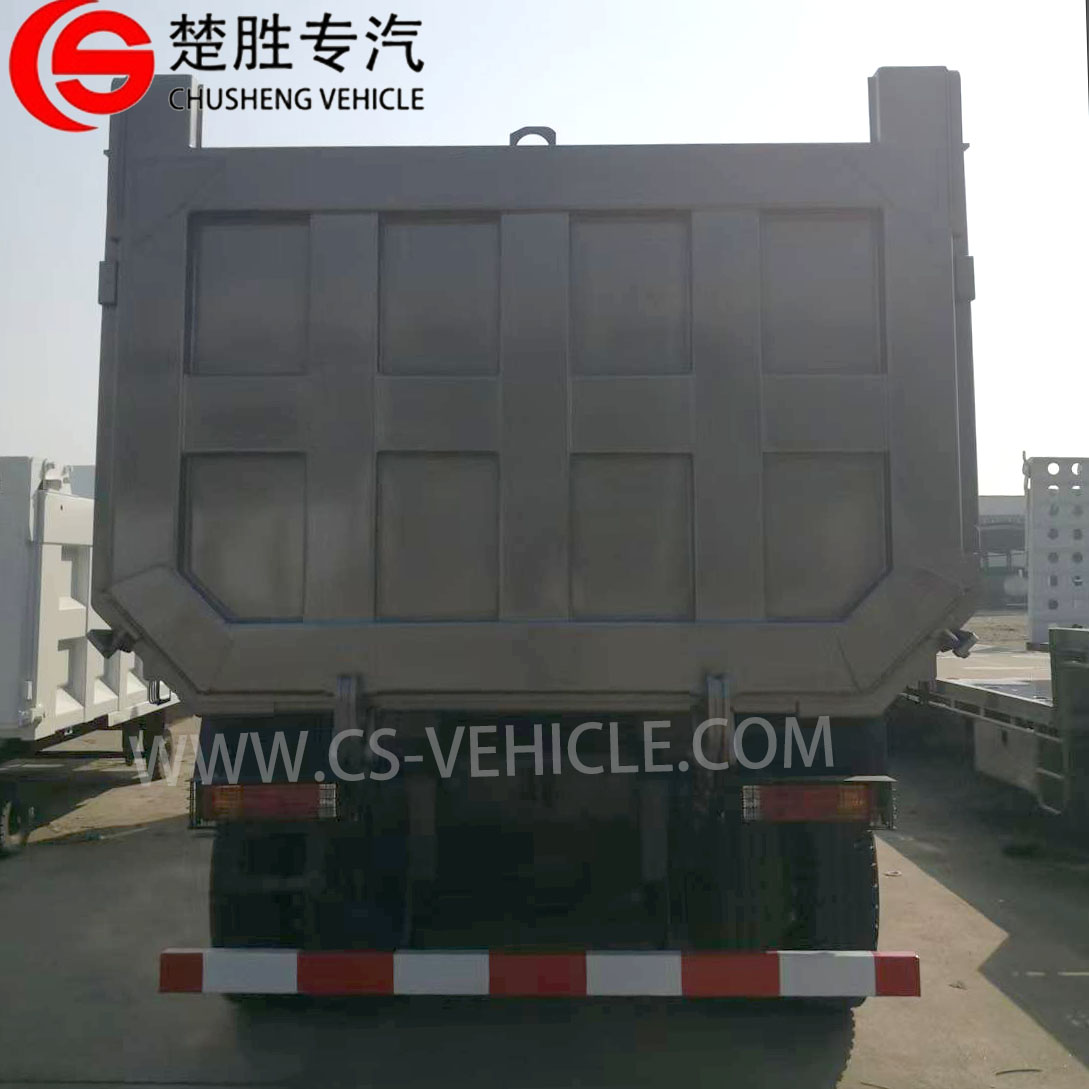

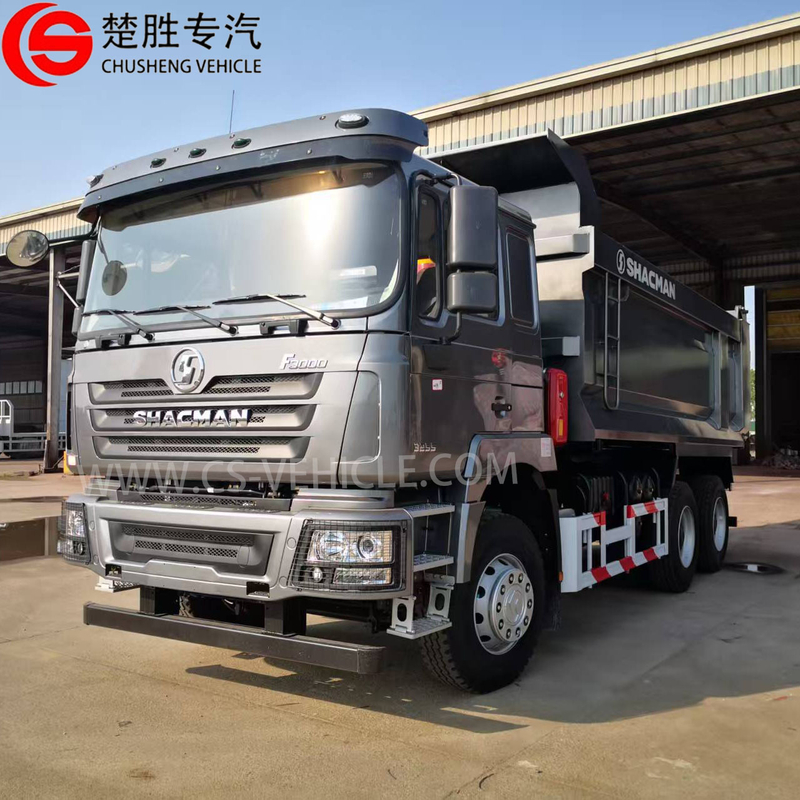

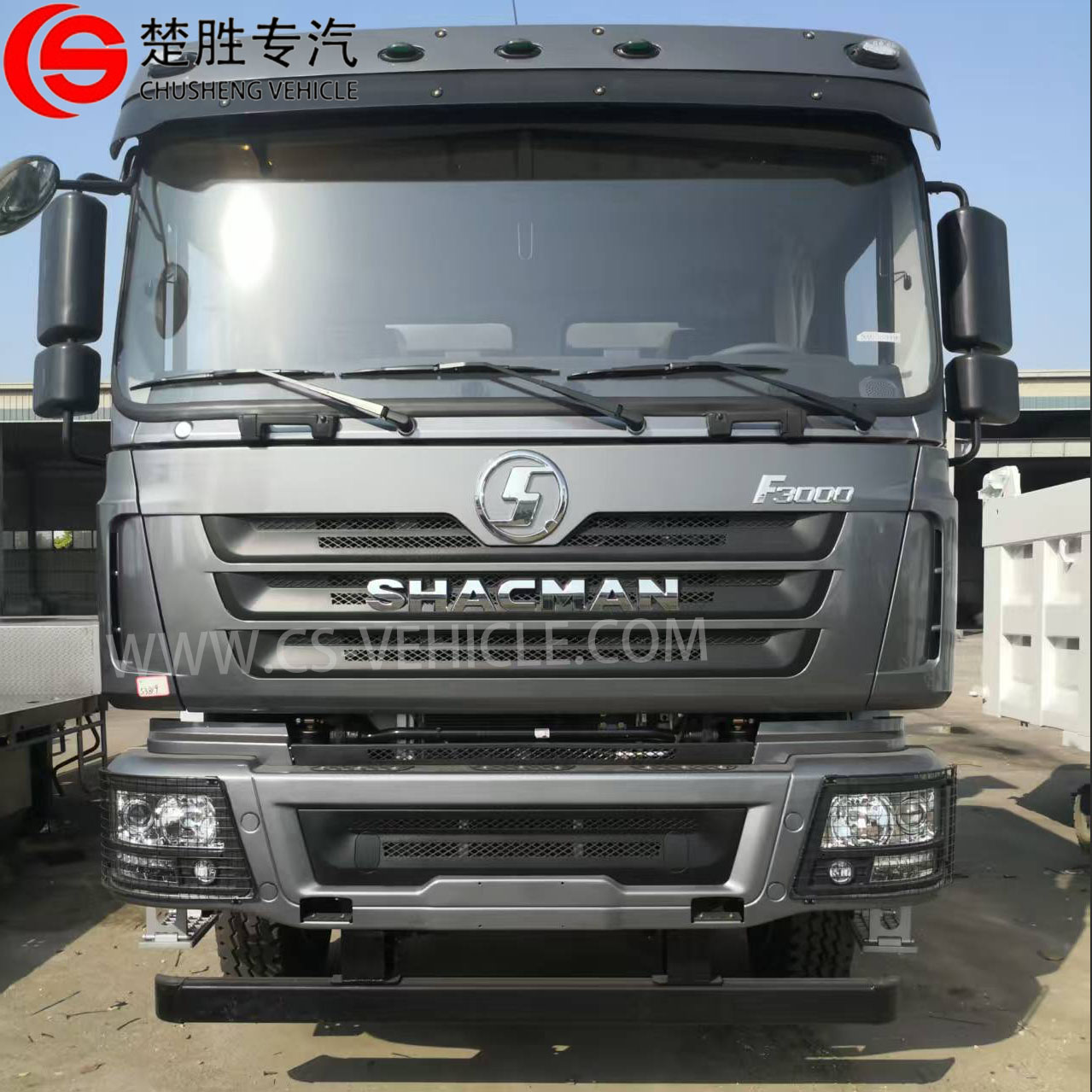

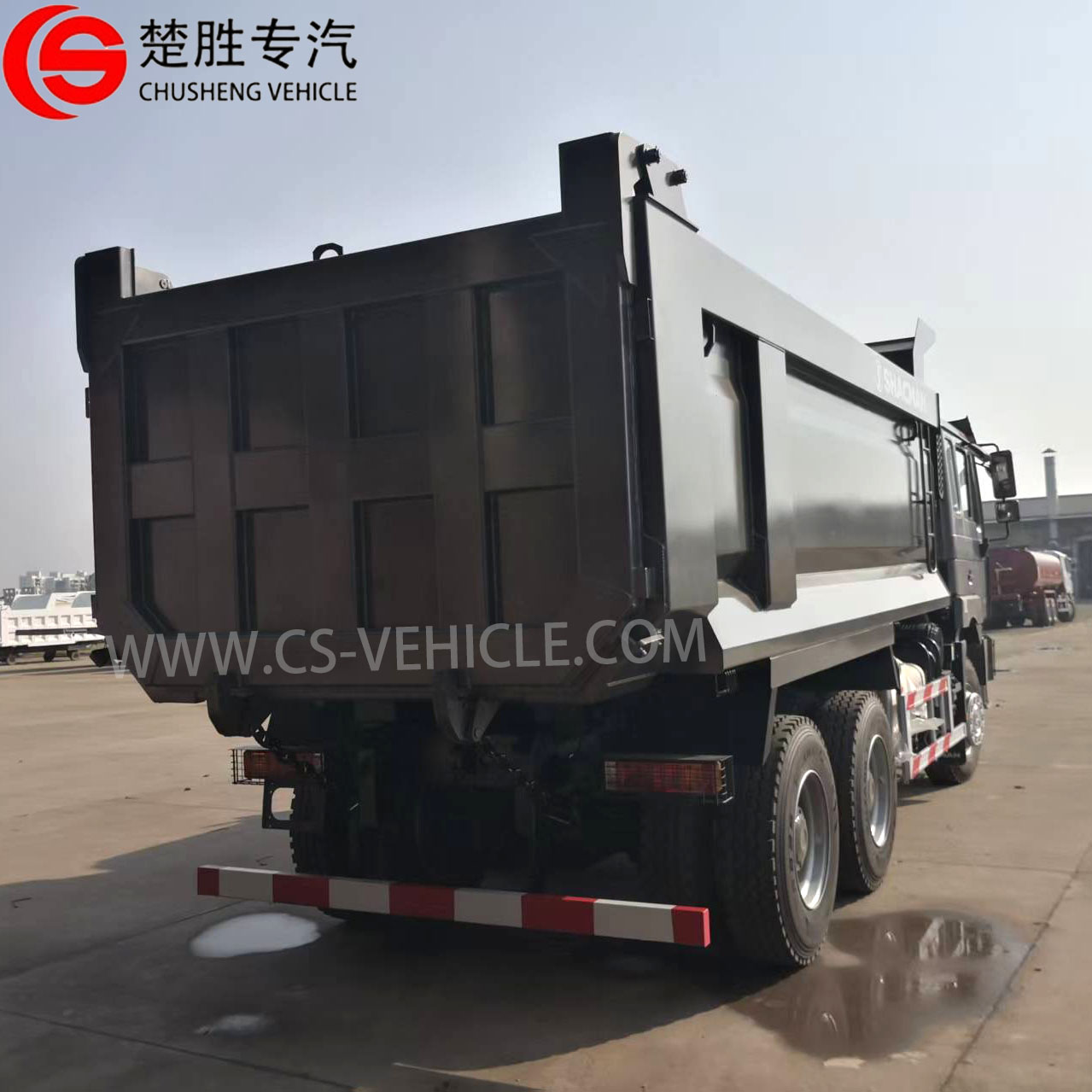

| I. Vehicle Basic Information | Model Name | F3000 SHACMAN 6X4 Dump Truck |
| Drive Configuration | 6×4 | |
| Design Model | SX3255DR384 | |
| Color | Earth Grey Metallic Paint (Full Vehicle) | |
| II. Chassis Configuration | Engine | WP10.340E22 |
| Transmission | 9_RTD11509C - Iron Housing - QH50 | |
| Front Axle | HD 9.5T | |
| Drive Axle | 16T MAN Double Reduction Cast Axle, Ratio 5.92 | |
| Frame Specification | 850mm × 300mm (8+7mm) | |
| Wheelbase | 3775mm + 1400mm | |
| Rear Overhang | 850mm | |
| Suspension System | Front/Rear Multi-leaf Spring (4 Main Leaves + 4 U-bolts) | |
| Fuel Tank | 400L Aluminum Alloy Flattened Tank | |
| Tires | 12R22.5 Mixed Tread Pattern (with Rim Trim Covers) | |
| Cab | F3000 Medium-Long Flat Roof, without Roof Spoiler | |
| Brake/Safety System | Domestic 6-Channel ABS, Front Under-run Protection, Domestic Tachograph, Speed Limiter 90km/h | |
| Electrical/Comfort Features | Daytime Running Lights (DRL), AC for Hot Climate Regions, Power Windows, Cab Curtains, Single Berth, Manual Sunroof, Cruise Control System, Reverse Buzzer | |
| Other Chassis Features | Hydraulic Driver's Seat, Standard Mirrors, Manual Tilting Cab, Metal Bumper with Protective Grille and Lights, 3-Step Access Steps, Oil Bath Air Filter, Standard Exhaust, Domestic Steering Gear, Standard Steering Wheel, Imported Clutch, Front Left Tow Pin, Radiator Protection Grille, Front Stabilizer Bar, Tail Light Protection Grille, 165Ah Maintenance-Free Battery, 4-Point Hydraulic Cab Mounts, Sound Insulation Panels, Weichai Westport Technology Compressor, Seat Belt Reminder (Driver + Passenger) | |
| III. Body Configuration | Body Dimensions (L×W×H) | 5600mm × 2300mm × 1500mm |
| Body Shape / Material | U-Shaped Dump Body, Q355 Steel Plate (Side: 6mm, Floor: 8mm) | |
| Floor Structure | 4 Longitudinal Beams | |
| Hoist System | Domestic 180 Front-Mounted Telescopic Hoist | |
| IV. Certification & Markings | Compliance Certification | Full French Language Markings, E-MARK Certified Tires/Warning Triangle/Lights/Glass/Horn/Mirrors/Seat Belts |
| Vehicle Markings | SHACMAN Badge, Special Model Plate (3255) | |
| On-board Equipment | Hi-Visibility Vest |
