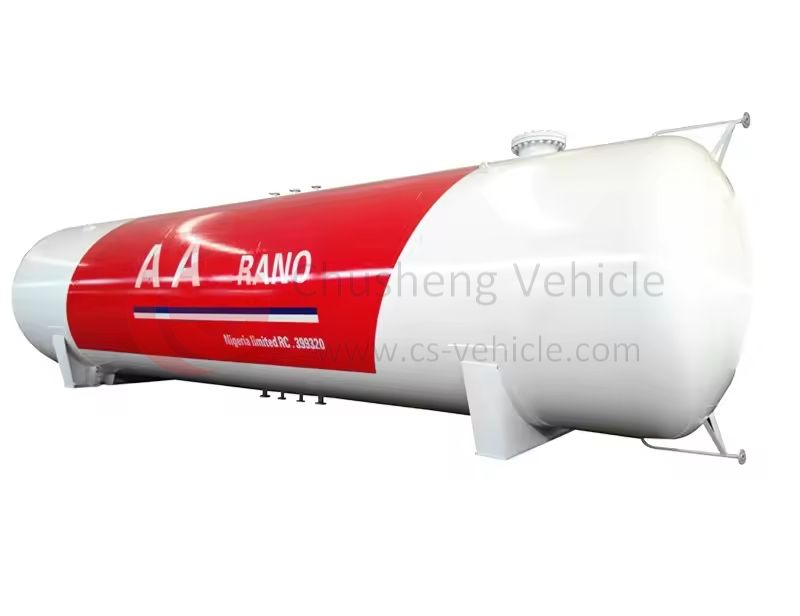

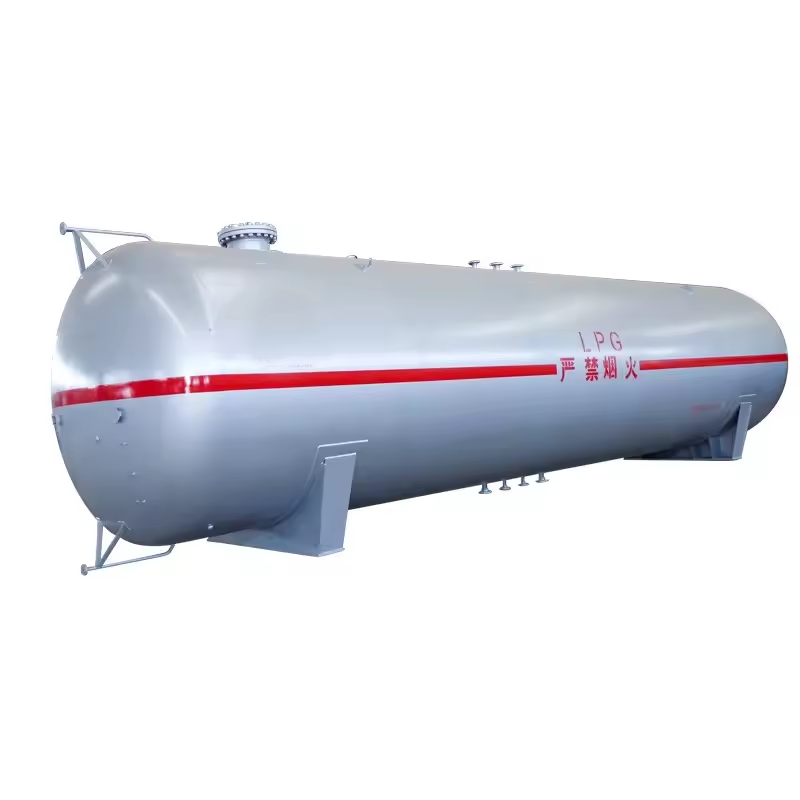

20/40 cubic LPG gas tank is a high-pressure container designed for storing liquefied petroleum gas (such as propane, butane or their mixtures), suitable for industrial gas storage, liquefied gas stations, gas companies and commercial energy projects.
High-strength tank design to ensure safe and stable pressure bearing
Automatic welding + non-destructive testing of welds to ensure sealing and pressure resistance
Complete valves, instruments and safety devices, easy to use and simple maintenance
Customized production according to customer national certification standards (such as ASME, CE, ADR, etc.)
Adapt to automatic filling system, remote monitoring system to improve management efficiency
LPG filling station / filling station
Centralized gas supply system such as factories and boiler rooms
Urban small gas company storage station
Gas system of large commercial units such as hotels, schools and hospitals
Containerized skid-mounted station, mobile gas system supporting equipment
If you have customized needs, please feel free to contact us, we will provide you with complete solutions and global delivery capabilities.
20/40 cubic LPG gas tank is a high-pressure container designed for storing liquefied petroleum gas (such as propane, butane or their mixtures), suitable for industrial gas storage, liquefied gas stations, gas companies and commercial energy projects.
High-strength tank design to ensure safe and stable pressure bearing
Automatic welding + non-destructive testing of welds to ensure sealing and pressure resistance
Complete valves, instruments and safety devices, easy to use and simple maintenance
Customized production according to customer national certification standards (such as ASME, CE, ADR, etc.)
Adapt to automatic filling system, remote monitoring system to improve management efficiency
LPG filling station / filling station
Centralized gas supply system such as factories and boiler rooms
Urban small gas company storage station
Gas system of large commercial units such as hotels, schools and hospitals
Containerized skid-mounted station, mobile gas system supporting equipment
If you have customized needs, please feel free to contact us, we will provide you with complete solutions and global delivery capabilities.
Parameter of 40cbm LPG Storage Tank | |||||
ITEM | PARAMETER | ITEM | PARAMETER | ||
Volume | 40cbm | Thickness of Shell | 12mm | ||
Tank Material | Carbon Steel Q345R | Thickness of End plate | 14mm | ||
Overall Size | 9270*2428*3018mm | Tank Net Weight | 9380 kg | ||
Tank Diameter | 2400mm | Loading Capacity | 20000kg | ||
Design Pressure | 1.77Mpa | Gas Density | 500kg/M3 | ||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | ||
Design Temperature | -20℃~50℃ | Heat Treatment | Bulk | ||
Vapor Outlet | DN50 | Manhole | DN450 | ||
Designed Life time | 15 years | Drain outlet | DN50 | ||
Safety accessories | |||||
Model | Item | Junction surface | |||
J41N-2.5-50 | Stop Valve DN50 | RF | |||
J41N-2.5-25 | Stop Valve DN50 | RF | |||
J41N-2.5-80 | Stop Valve DN80 | RF | |||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | ||||
HG21584-95 | Ball floating level Gauge UZFAL-2.5RF-3040-0.5 | RF | |||
A42F-25-100 | Safety Valve DN 80 | RF | |||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | ||||
WTQ-280 | Thermometer M33*2 2.5 degree | -40℃~60℃ |
