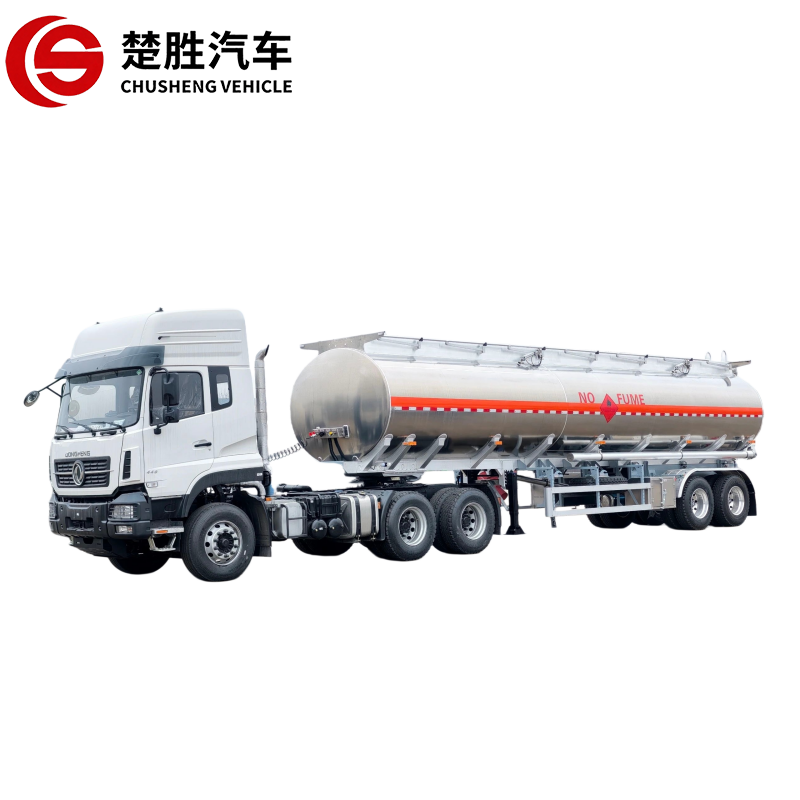

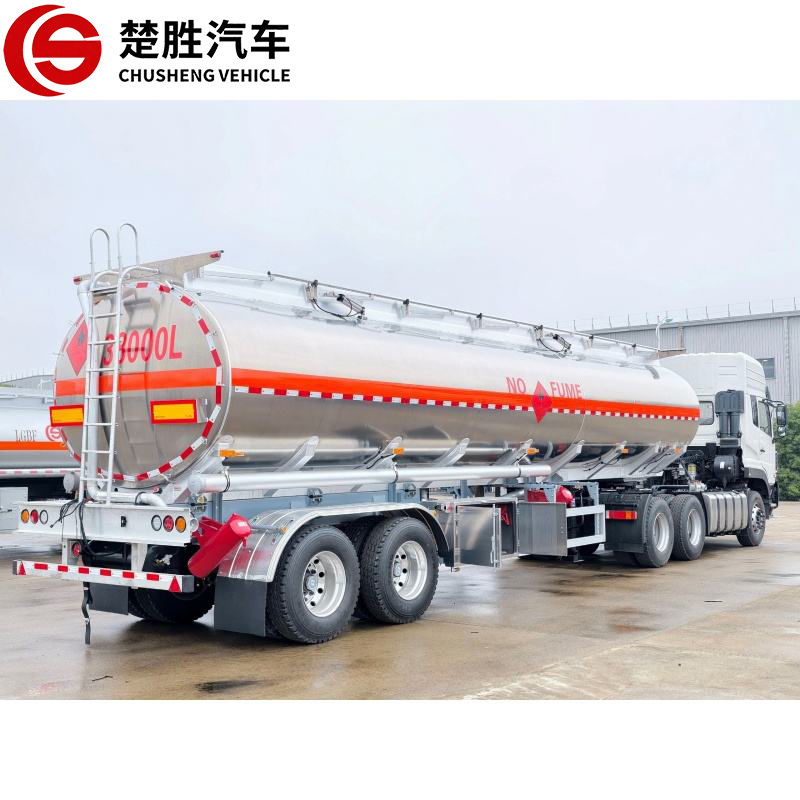

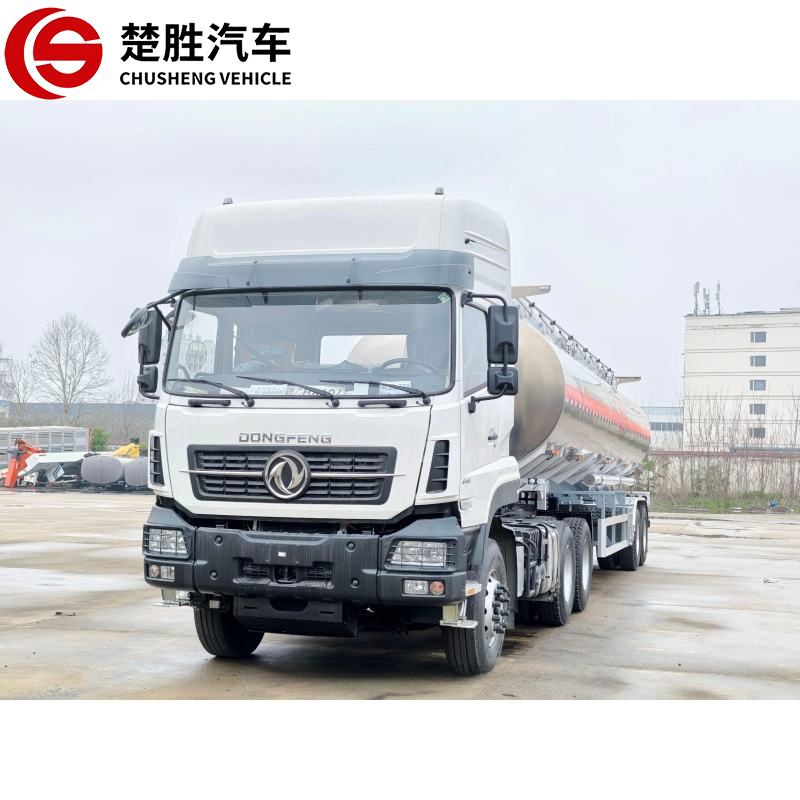

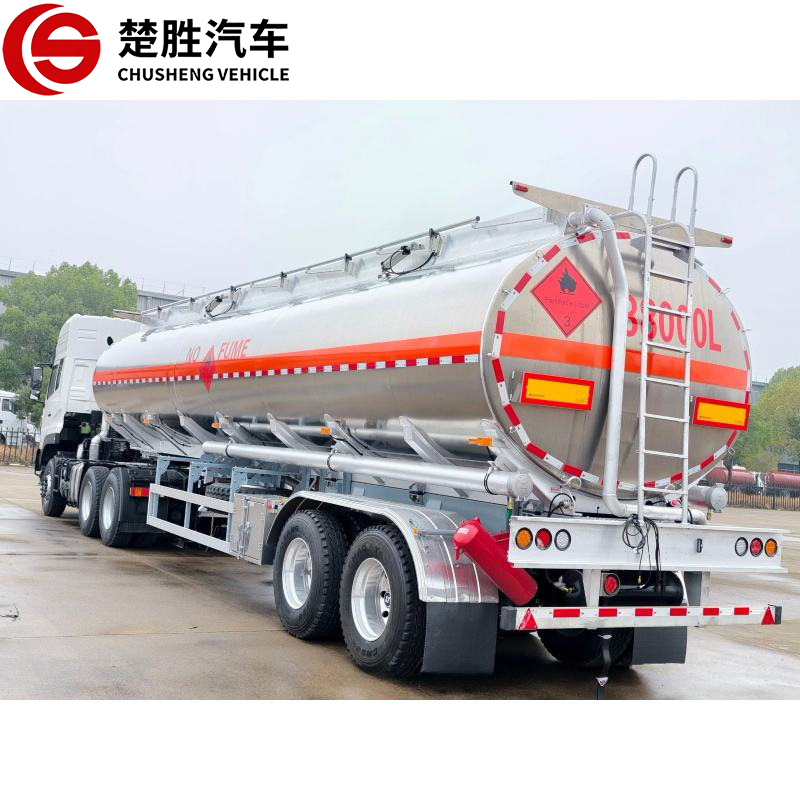

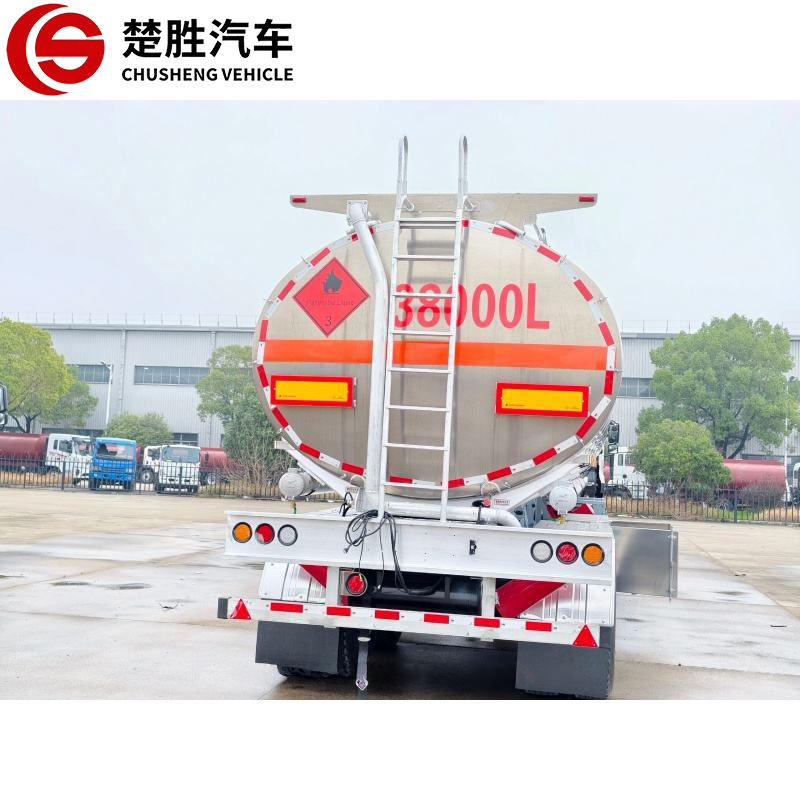

2 Axles 38000 Liters Aluminum Fuel Tanker Semi Trailer Gasoline Diesel Tank Semi-trailer

The 2 Axles 38000 Liters Aluminum Fuel Tanker Semi Trailer, This batch is destined for South American countries to help governments transport oil. It is safe, convenient, and the vehicles are lightweight, making transportation highly efficient.
Availability:
Quantity:

PDF Export

whatsapp sharing button
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • CSC9350GYYL

  • Chusheng vehicle

Features of Aluminum Alloy Tank Trucks:


Feature 1: Lightweight and Economical.


Our company's aluminum tanks utilize an all-aluminum alloy structure, effectively reducing the overall vehicle weight by 30%-40% compared to ordinary carbon steel tanks. This reduces fuel consumption and tire wear during transportation, lowering daily operating and maintenance costs, saving customers direct economic losses, and reducing carbon dioxide emissions, contributing to environmental protection.


Feature 2: Strong Corrosion Resistance and Extended Service Life.


Aluminum alloys have good compatibility with common oils, most chemicals, and food-grade media. They are highly corrosion-resistant, have a wide range of transport applications, require no surface painting, are durable, easy to clean, and effectively extend the tank's service life, saving customers costs.


Feature 3: Good Ductility and High Conductivity, Enhanced Safety.


Aluminum alloy tanks have good ductility and high strength, effectively adapting to the thermal expansion and contraction of the transported media. Furthermore, the high conductivity of aluminum alloys reduces the accumulation of static electricity on the tank, preventing sparks from being generated during tipping or scraping, thus enhancing the safety of tank truck transportation.


Feature 4: Recyclable.


Aluminum alloy tanks are highly recyclable, reducing disposal costs and generating benefits for customers.


Feature 5: Superior performance in all aspects.


Our company's tanks are manufactured using a large-scale tank-wrapping machine for one-time forming, with automatic gantry welding and hydraulic forming of the end caps. Production and testing are fully compliant with national standards for tanker oil tankers, resulting in a compact structure, aesthetically pleasing design, reliable connections, stable quality, superior performance, and safe and stable operation.

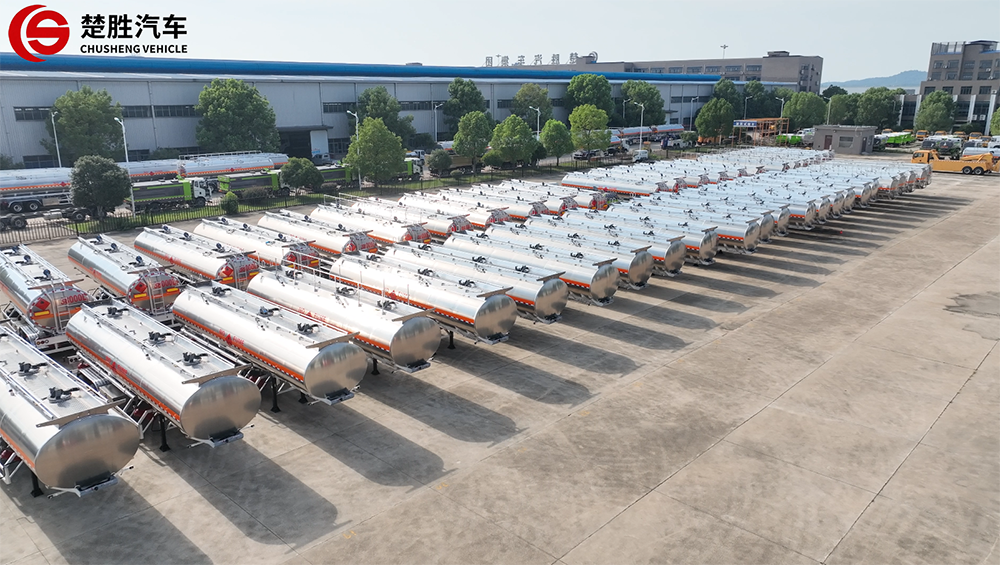

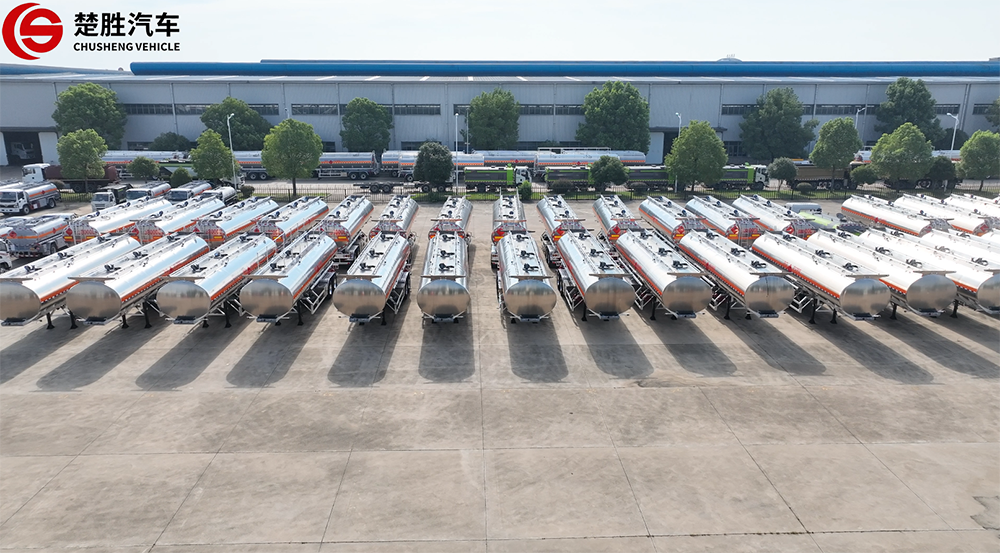

微信图片_20240312110759微信图片_20240312110804

                   Main Dimensions

Overall Length

10000mm

Overall Width

2500mm

Overall Height

3200mm

Tare Weight

6000KGS

Loading Capacity

38m3

Photo only for reference, final product can be made according to exact requirements

Tank Body

Shape

Round

Total Volume(m3)

38 CBM

Tanker Body Material

6mm aluminum alloy 5182

End plate

6mm aluminum alloy 5182

Lifting Ladder

Including Top walkway and backside steel material

Manhole cover

3 manhole covers, DN500mm 3 sets with 3 breather valves

Bottom Valve

1 sets of API Pneumatic Bottom Valve

Top Safety Rail

1 Set

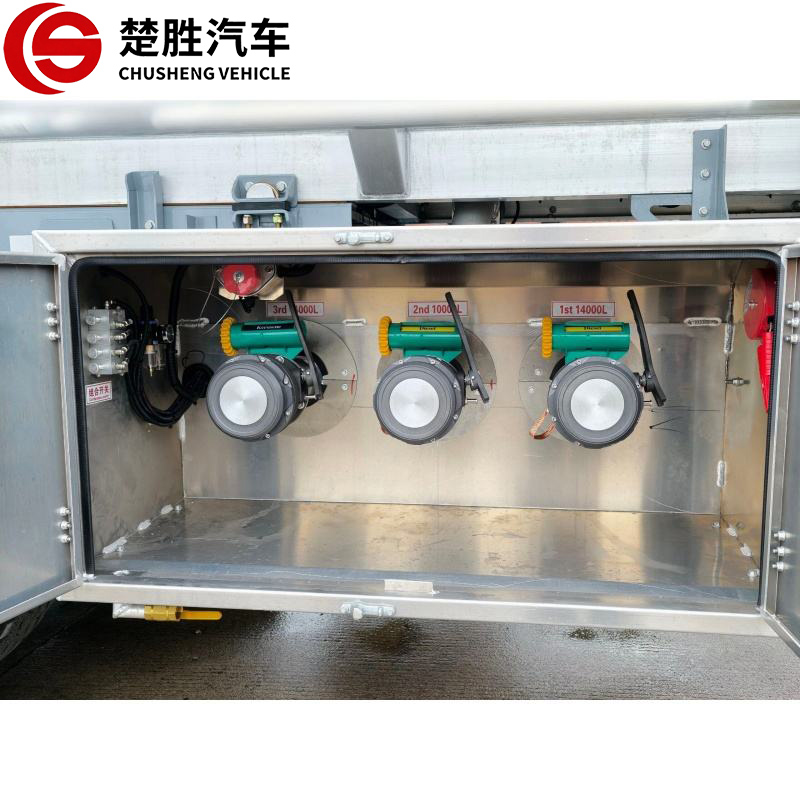

Discharging valve

3 set DN100mm discharging valves

No. of Compartment

3(14000liters+10000liters+14000 liters)

Discharging Pipe

4”rubber hose, 2 pc, 6m long

Chassis

Main Beams

Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;

Axle

2 axles

FUWA 13 Ton

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

German design heavy duty mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

9.00-22.5 wheel rim

Tire

315/80R22.5,12 pcs with one spare tire

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint

Accessories

One standard tool box



Pre-sale Service


  1. Prompt Response: We ensure a swift reply to all inquiries within 24 hours, providing our customers with timely assistance.

  2. Market Research and Forecasting: We conduct thorough market research to provide accurate forecasts tailored to your specific needs, enabling informed decision-making.

  3. Customized Solutions: Our team develops unique and professional solutions based on your requirements, ensuring you receive the best fuel tanker trailer for your operations.

  4. Data Sheets and Samples: We offer comprehensive data sheets and product samples, allowing you to evaluate our tanker truck semi trailers before purchase.

  5. Additional Services: We provide special services such as customized packing design and factory visits, ensuring a transparent and engaging buying experience.


In-sale Service


  1. Production Tracking: We offer regular tracking reports during production, keeping you informed about the status of your order for your fuel transport needs.

  2. Quality Assurance: Every order comes with a quality test report, guaranteeing that our fuel tanker trailers meet the highest standards of excellence.

  3. Visual Documentation: We provide photos and videos as per your requirements, allowing you to see the progress of your order firsthand.

  4. Complimentary Spare Parts: Enjoy free spare parts with every purchase, ensuring that you have everything you need for maintenance and operation.


After-sale Service


  1. Lifetime Maintenance and Upgrades: We offer lifetime free maintenance and upgrades for our fuel tanker trailers, ensuring long-term reliability and performance.

  2. Quick Response to Complaints: We guarantee a complaint response period not exceeding 24 hours, with maintenance guidance and problem resolution provided within 48 hours.

  3. Customer Satisfaction Tracking: We conduct regular customer satisfaction tracking reports to ensure our clients are fully satisfied with their fuel transport solutions.

  4. Free Technician Training: Receive free training for your technicians, equipping them with the skills needed to operate and maintain the equipment efficiently.

  5. Comprehensive Documentation: We provide a full set of free documents, including installation guides, software operation manuals, easy maintenance manuals, and control system software CDs, ensuring smooth operation and maintenance.

  6. Specialized Services for Large Projects: We offer tailored services for large-scale projects such as stadiums, exhibitions, and squares, providing expert support to meet your unique requirements.
